826 SWE (31AH5F3F100) - Cub Cadet 26" Snow Thrower (2001) Handle Assembly & Chute Parts Diagram

26" Snow Thrower

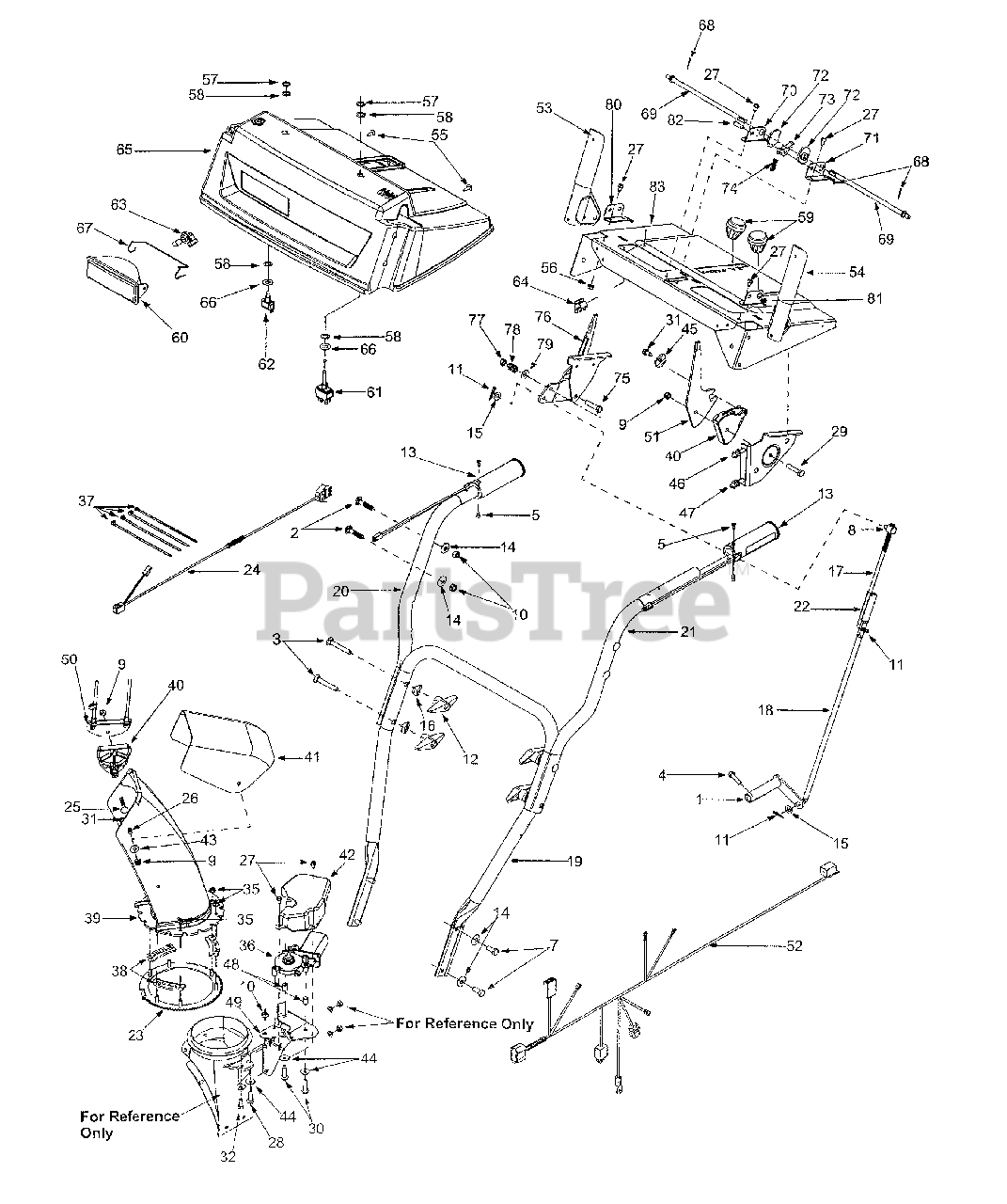

Handle Assembly & Chute Parts Diagram

  • Title

1

Cub Cadet 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0262

Carriage Bolt 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 11

0

3

Cub Cadet 710-0449

Carriage Bolt 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0788

TT Screw 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0837

C-Sunk Screw #10-16x 0.625"

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

9

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet 747-0621

Shift Rod: Lower

$

$

Not available

19

Cub Cadet 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

Cub Cadet 749-0951-0637

USE 749-0951A-0637 HANDLE-LOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0951-0638

USE 749-0951A-0638 HANDLE-LOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 749-0952A

Upper Handle: L Style RH

Variations

Cub Cadet 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 749-0952A-0665

USE 749-0952A-0637 HANDLE-UPP - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

Cub Cadet 749-0953A

Upper Handle: L Style LH

Variations

Cub Cadet 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 749-0953A-0665

USE 749-0953A-0637 HANDLE-UPP - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

Cub Cadet 750-0963

Connector: Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

23

Cub Cadet 618-0419

Gear Assembly: Ring

$

$

Not available

24

Cub Cadet 629-0937

Electric Harness: Lower

$

$

Not available

25

Cub Cadet 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 11

0

26

Cub Cadet 710-0451

Carriage Bolt: 5.16-18 x .750"

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0602

TT Screw: 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0805

Hex Screw: 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0817

TT Screw: 5/16-18 x 1.25"

$6.99

$

In Stock, Qty 15

0

31

Cub Cadet 710-0896

Hex Screw AB: 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3008

Hex Screw: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

36

Cub Cadet 724-0249

Electric Motor: Chute Crank
(Superseded to 953-0912A)

$

$

Not available

37

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

40

Cub Cadet 731-1313C

Cable Guide: Chute Tilt

$11.99

$

In Stock, Qty 20+

0

41

Cub Cadet 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

42

Cub Cadet 731-2279

Motor Cover: Chute Rotation

$

$

Not available

43

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

46

Cub Cadet 746-0896

Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

47

Cub Cadet 746-0901

Control Cable
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-1232

Spacer

$

$

Not available

49

Cub Cadet 782-0599

Motor Bracket

Variations

Cub Cadet 782-0599-0637

MOTOR BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 784-5604

Handle: Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 629-0936A

Harness Assembly: Upper

$

$

Not available

53

Cub Cadet 684-0036

Handle Assembly RH
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 684-0037A

Handle Assembly LH
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

55

Cub Cadet 710-1003

Special Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0271

Hex Sems Nut: 1/4-20

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 712-0693

Hex Nut

$

$

Not available

58

Cub Cadet 716-0398

Lock Ring: Toggle Switch

$

$

Not available

59

Cub Cadet 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

60

Cub Cadet 725-1672

Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 725-1755

Toggle Switch: Double Throw
(Superseded to 925-1755)

$117.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 725-1756

Toggle Switch: Single Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 725-1759

Halogen Lamp: 50W, 12V
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

64

Cub Cadet 726-0152

Mounting Clamp

$

$

Not available

65

Cub Cadet 731-2276

Handle Panel

$

$

Not available

66

Cub Cadet 736-0226

Flat Washer
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

67

Cub Cadet 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 714-0507

Cotter Pin: 3/32 x .75

$4.49

$

In Stock, Qty 12

0

69

Cub Cadet 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 732-0145

Compression Spring: .36 x 1.0

$4.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-0459A

Hex Cap Screw: 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

76

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

77

Cub Cadet 712-0116

Jam Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

78

Cub Cadet 732-0193

Comp. Spring:.39 x .6 x .88

$4.99

$

In Stock, Qty 6

0

79

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

80

Cub Cadet 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 784-5681

LH Handle Support Bracket

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 684-0102

Handle Panel
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0
