826 R - Troy-Bilt 26" Snow Thrower (SN: B250100101 - B250199999) TRIM, CONTROL & FRAME ASSEMBLY Parts Diagram

26" Snow Thrower

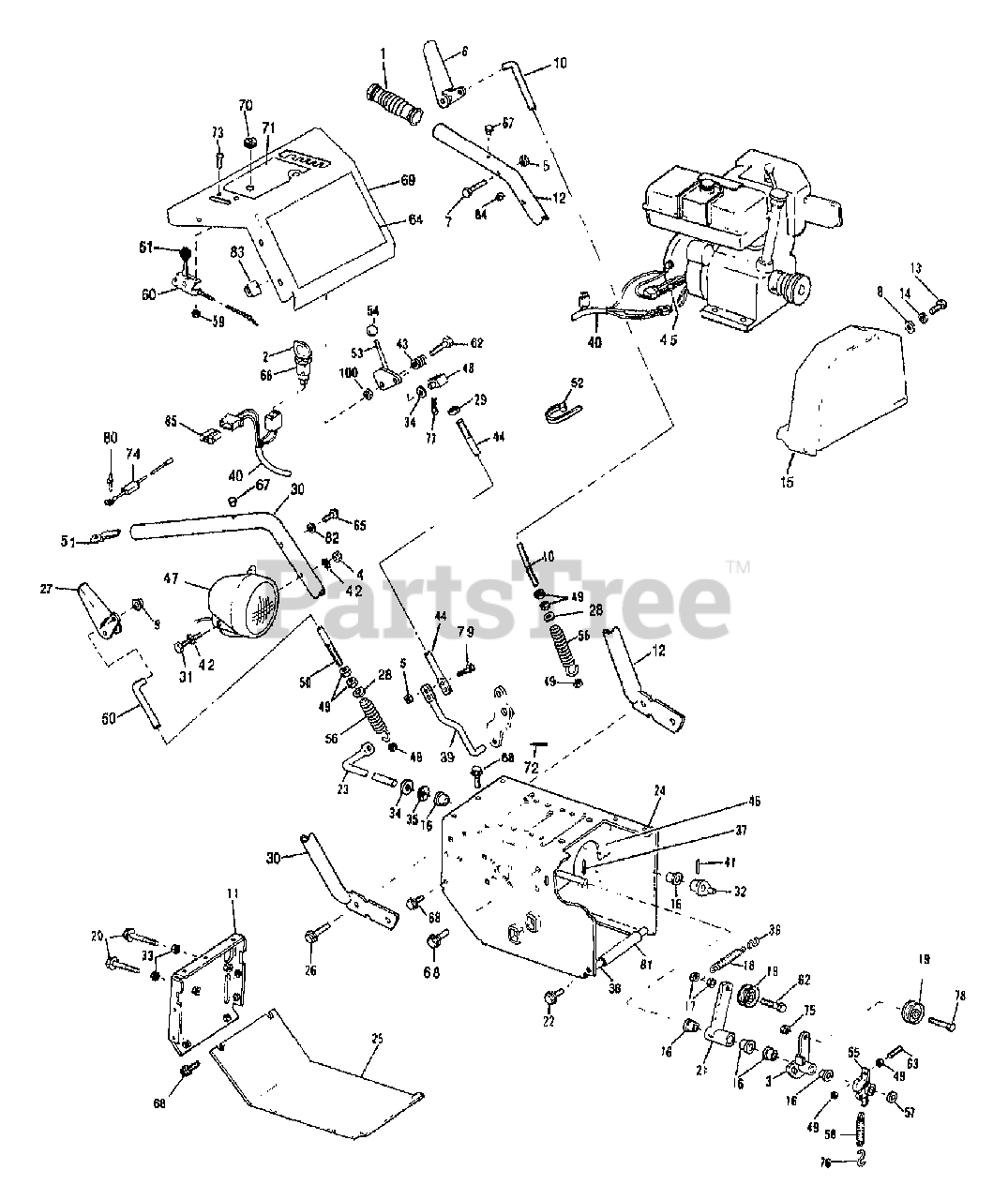

TRIM, CONTROL & FRAME ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1745576

GRIP-HANDLE
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

2

MTD 1727326

KEY

$

$

Not available

3

MTD 1739937

ARM-IDLER

$

$

Not available

4

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

MTD 1745673010

LEVER-CONTROL

$

$

Not available

7

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

8

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

9

Troy-Bilt 1728072

NUT-PUSH
(Superseded to 926-0106)

$

$

Not available

10

MTD 1758132

ROD-WHL DRIVE CLUTCH

$

$

Not available

11

Troy-Bilt 1757828GAR

PLATE-BACK

$

$

Currently unavailable

12

Troy-Bilt 1757511GAR

HANDLEBAR-LH

$

$

Currently unavailable

13

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1757792GAR

BELT COVER

$

$

Currently unavailable

16

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

18

MTD 1740011

SPRING-EXTENSION

$

$

Not available

19

MTD 1729440

PULLEY-IDLER

$

$

Not available

20

MTD 1186334

SCR-HFLK 5/16-18X1.75 ZP G5

$

$

Not available

21

MTD 1739935

ARM-IDLER

$

$

Not available

22

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

?23

MTD 1739942

CONTROL-ARM

$

$

Not available

?24

MTD 1745857GAR

ASSM-FRAME

$

$

Not available

25

MTD 1739838GAR

COVER-BOTTOM

$

$

Not available

26

MTD 1186345

SCR

$

$

Not available

27

Troy-Bilt 1745672010

LEVER-CONTROL
(Superseded to 1745672001)

$

$

Not available

28

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 1757510GAR

HANDLEBAR-RH

$

$

Currently unavailable

31

MTD 1111613

SCR-HH 5/16-18X4.0 G5 ZP

$

$

Not available

?32

MTD 1739932

ARM-CONTROL

$

$

Not available

33

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

?35

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

36

MTD 1740989

HOOK-J

$

$

Not available

?37

MTD 1100356

PIN-COTTER .093X1.00 ZP

$

$

Not available

38

MTD 1739756

BRACE-CROSS

$

$

Not available

39

MTD 1752107

ROD-LOWER CONTROL

$

$

Not available

40

Troy-Bilt 1748837

HARNESS

$

$

Currently unavailable

?41

MTD 1743493

PIN-ROLL .125X.75 ZP

$

$

Not available

42

Troy-Bilt 1177548

WASHER-LK .312 EXT TOOTH
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

43

MTD 1713167

SPRING-COMPRESSION

$

$

Not available

44

Troy-Bilt 1758134

ROD-SPEED CONTROL

$

$

Currently unavailable

45

MTD 1721038

CONNECTOR

$

$

Not available

?46

Troy-Bilt 1754272GAR

SUPPORT ASSY

$

$

Currently unavailable

47

Troy-Bilt 1757879

ASSM-LIGHT

$

$

Currently unavailable

48

MTD 1727053

BLOCK-SWIVEL

$

$

Not available

49

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

50

Troy-Bilt 1758133

ROD-AUGER CLUTCH

$

$

Currently unavailable

51

MTD 1746516

CLAMP

$

$

Not available

52

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 1739715

LEVER-SPEED CONTROL

$

$

Not available

54

MTD 1715817

KNOB

$

$

Not available

55

MTD 1739941

ASSM-BRAKE ARM

$

$

Not available

56

MTD 1739745

SPRING-EXTENSION

$

$

Not available

57

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

58

MTD 1740990

SPRING-EXTENSION

$

$

Not available

59

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 1734795

CABLE-THROTTLE BLNS SNOWTHR

$

$

Currently unavailable

61

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

62

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1741847

SCR SET-HXSKT 1/4-20X1.25

$

$

Currently unavailable

64

MTD 1757853

DECAL-LOGO

$

$

Not available

65

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

66

Troy-Bilt 1727321

SWITCH-IGN W/HDW & KEYS
(Superseded to 925-0873)

$

$

Not available

67

MTD 1750796

BUMPER-RUBBER

$

$

Not available

68

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 1757507GAR

ASSM-CONSOLE

$

$

Currently unavailable

70

MTD 1185585

GROMMET-FLIP

$

$

Not available

71

Troy-Bilt 1757850

DECAL-INST

$

$

Currently unavailable

72

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

73

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

74

MTD 1746515

ASSM-RESISTOR

$

$

Not available

75

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

76

Troy-Bilt 1742250

HOOK-S

$

$

Currently unavailable

77

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

79

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

80

Troy-Bilt 1186424

RIVET-POP .125

$

$

Currently unavailable

81

MTD 1746607

TUBE-PLASTIC

$

$

Not available

82

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

83

MTD 1724879

CLIP-CORD

$

$

Not available

84

MTD 1748835

BUSHING

$

$

Not available

85

Troy-Bilt 1748836

CONNECTOR

$

$

Currently unavailable

100

UNKNOWN

$

$

Not available
