826 CV (246-315B100) - Cub Cadet Chipper/Vacuum Engine (1996) Carburetor Assembly Parts Diagram

Chipper/Vacuum Engine

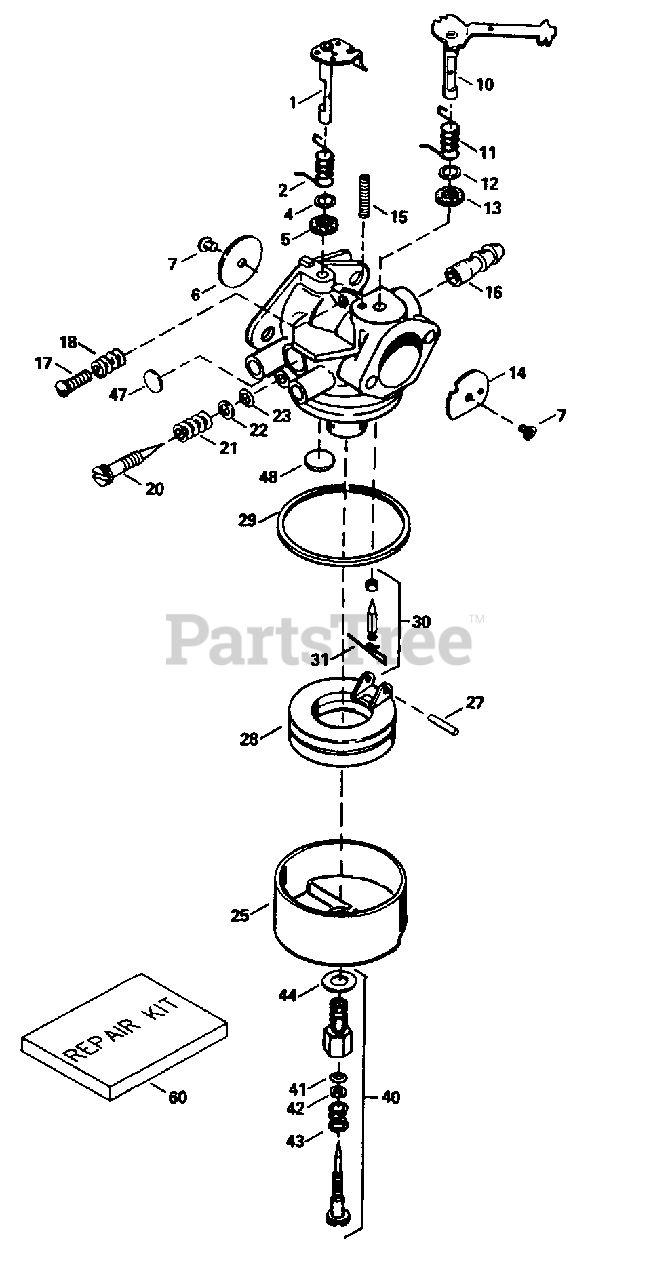

Carburetor Assembly Parts Diagram

  • Title

Cub Cadet TC-632351

Carburetor

Note: (Incl. 184 of Engine Parts List)

$113.99

$

Usually ships in 3-12 days

0

1

Cub Cadet TC-631776A

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 12

0

6

Cub Cadet TC-631778

Throttle Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Cub Cadet TC-631812

Choke Shaft & Lever Assembly
(Superseded to TC-632740)

$5.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-632043

Choke Return Spring

$2131.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

13

Cub Cadet TC-631183

Dust Seal (Choke)

$1.99

$

In Stock, Qty 12

0

14

Cub Cadet TC-631753

Choke Shutter

$1.99

$

In Stock, only 4 left!

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Throttle Crack Screw/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-632281

Idle Mixture Screw

Note: Included in Repair Kit

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

22

Cub Cadet TC-630739

Idle Mixture Screw Washer

$1.99

$

In Stock, Qty 7

0

23

Cub Cadet TC-630740

Idle Mixture Screw "O"-Ring

Note: Included in Repair Kit

$2.49

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 12

0

27

Cub Cadet TC-631024

Float Shaft

Note: Included in Repair Kit

$1.99

$

In Stock, Qty 11

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

29

Cub Cadet TC-631028

Float Blow "O"-Ring
(Superseded to TC-631028A)

Note: Included in Repair Kit

$2.49

$

In Stock, Qty 15

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. 31); Included in Repair Kit

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

40

Cub Cadet TC-632239

Main Adj. Screw Ass'y.

Note: (Incl. 41 thru 44); Included in Repair Kit

$14.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-630740

High Speed Mixture Screw "O"-Ring

Note: Included in Repair Kit

$2.49

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-630739

High Speed Mixture Screw Washer

$1.99

$

In Stock, Qty 7

0

43

Cub Cadet TC-630738

High Speed Mixture Screw Tension Spring

$1.99

$

In Stock, Qty 9

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

Note: Included in Repair Kit

$2.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

Note: Included in Repair Kit

$1.99

$

In Stock, only 3 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

Note: Included in Repair Kit

$1.99

$

In Stock, only 2 left!

0

60

Cub Cadet TC-632347

Repair Kit

Note: (Incl. Items Marked )

$20.99

$

Usually ships in 3-12 days

0
