826 CV (245-315B100) - Cub Cadet Chipper/Vacuum (1995) Bracket Assembly Parts Diagram

Chipper/Vacuum

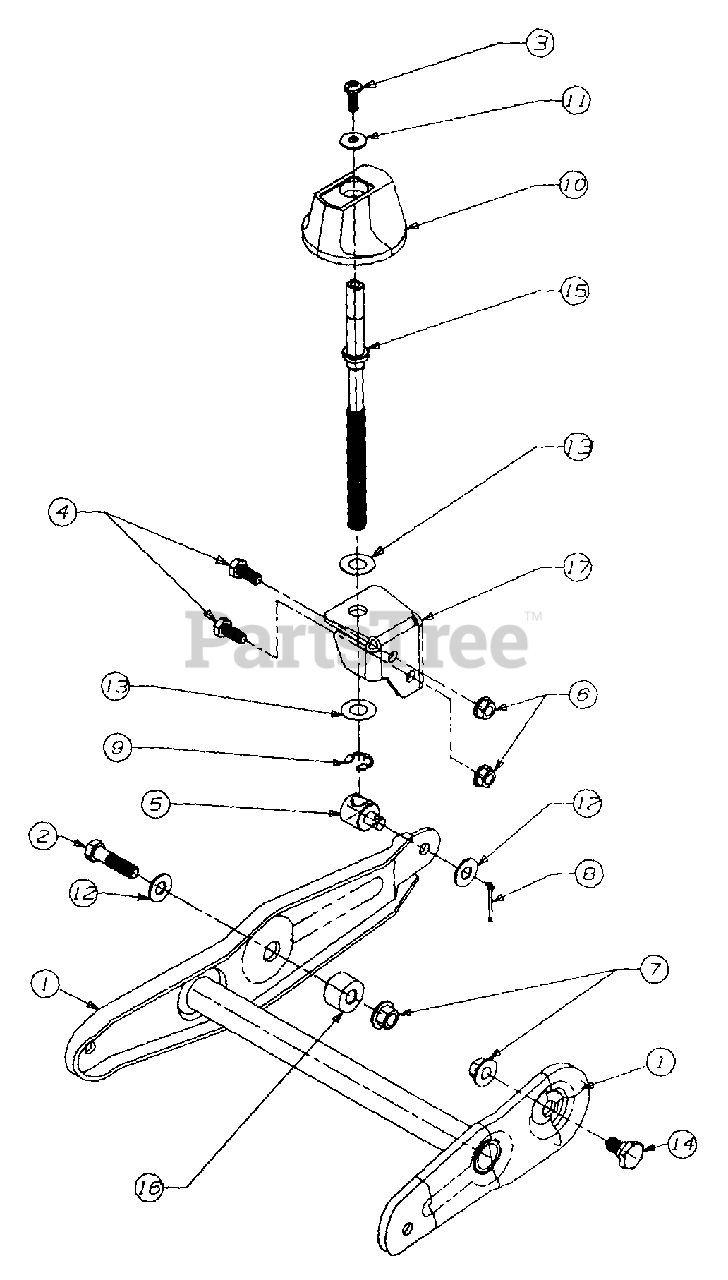

Bracket Assembly Parts Diagram

  • Title

1

Cub Cadet 681-0070

BRKT ASSY - WHEEL PIVOT

Variations

Cub Cadet 681-0070-0483

BRACKET ASSEMBLY-WHL PIVOT (CHARCOAL) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0070-0498

BRACKET ASSEMBLY-WHL PIVOT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0070-0637

BRACKET ASSEMBLY-WHL PIVOT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 681-0070-0638

BRACKET ASSEMBLY-WHL PIVOT (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0070-0662

BRACKET ASSEMBLY-WHL PIVOT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 710-0520

SCREW-HEX

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 710-0924

SCREW - MACHINE PAN HD

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3008

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1041

FERRULE - ADJUSTABLE

$

$

Not available

6

Cub Cadet 712-3004A

NUT-HEX FLANGE

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3005

NUT-HEX FLANGE LOCK

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-0115

PIN-COTTER

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 716-0104

RING-E
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 720-0236

KNOB-PLASTIC
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0270

WASHER-BELL

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0300

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0369

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0258

SCREW-SHOULDER
(Superseded to 938-0258)

$

$

Not available

15

Cub Cadet 747-0631

ROD-ADJUSTABLE

$

$

Not available

16

Cub Cadet 750-0985

SPACER

$

$

Not available

17

Cub Cadet 781-0605

BRACKET-HEIGHT ADJ

Variations

Cub Cadet 781-0605-0637

BRACKET-HGT-ADJ (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$
