826 4x4 (31AH4G3F100) - Cub Cadet 26" Snow Thrower (2001) Chain Case & Wheels Parts Diagram

26" Snow Thrower

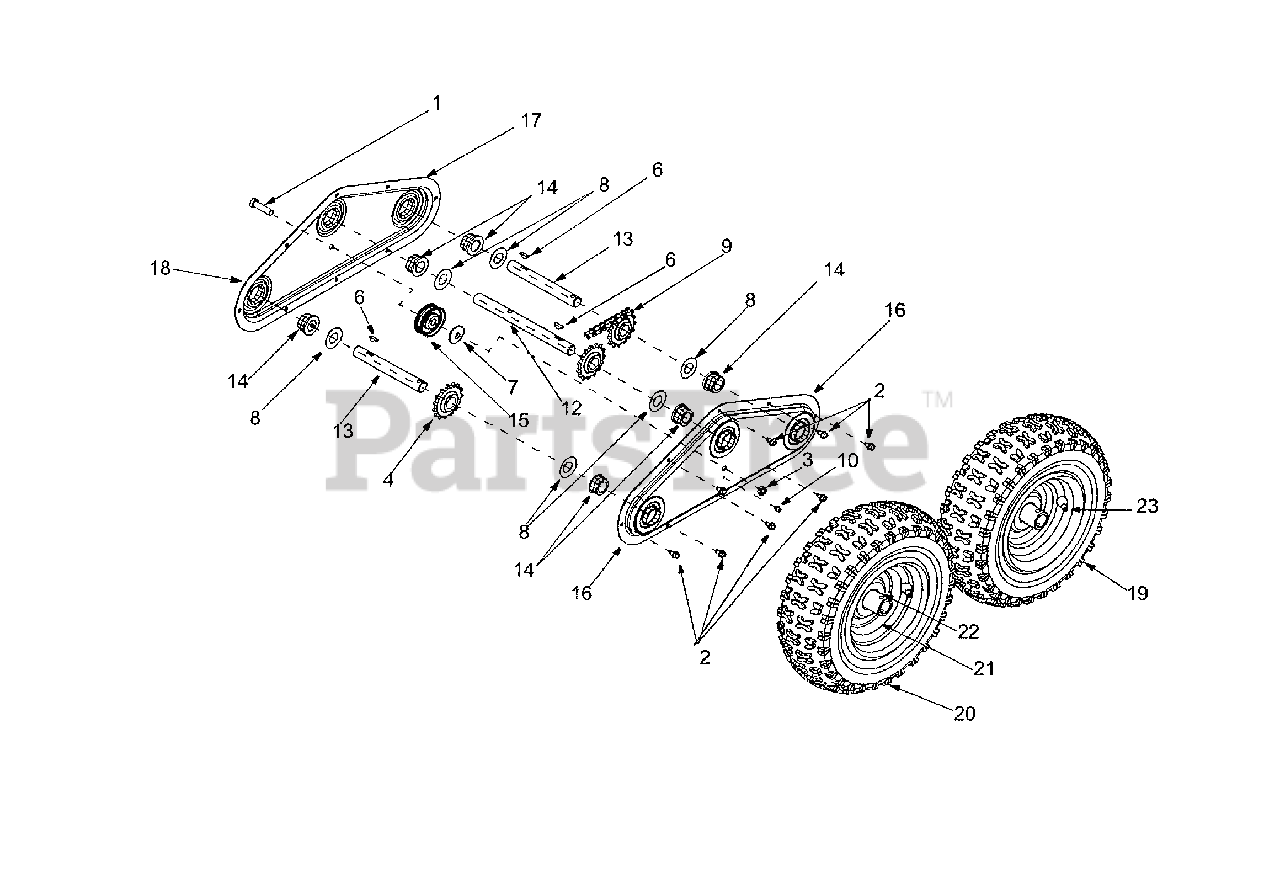

Chain Case & Wheels Parts Diagram

  • Title
1

Cub Cadet 710-0459A

Special Hex Screw: 3/8-24 x .5"

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

3

$4.99

$

In Stock, Qty 6

0

4

$

$

Not available

$

$

Not available

6

Cub Cadet 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0235

Flat Washer
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

8

Cub Cadet 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 737-0170

Lubricant: 6in 1

$

$

Currently unavailable

10

Cub Cadet 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 738-1135A

Drive Axle

$

$

Not available

13

Cub Cadet 738-1136A

Wheel Axle

$

$

Not available

14

Cub Cadet 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

15

Cub Cadet 756-0313

Flat Idler

$26.99

$

In Stock, Qty 5

0

16

Cub Cadet 784-0400A

Chain Case: Outer

Variations

Cub Cadet 784-0400A-0637

CHAIN CASE: OUTER - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 784-0401A

Chain Case: Inner

$

$

Not available

18

Cub Cadet 618-0420A

Chain Case Assembly RH
(Superseded to 918-0420A)

$424.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-0421A

Chain Case Assembly LH

$

$

Not available

19

Cub Cadet 634-0195

Complete Wheel Assembly

Variations

Cub Cadet 634-0195-0911

WHEEL ASSEMBLY (13 x 4 x 6) (OYSTER/CARLISLE) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0195-0931

WHEEL ASSEMBLY (13 x 4 x 6) (BEIGE/CARLISLE) - Carlisle Beige (0931)

$

$

Not available

$

$

20

Cub Cadet 734-1732

Tire Assembly

Variations

Cub Cadet 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$150.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1732-0904

USE 734-1732-0901 TIRE:SNOW H - Cheng (0904)

$150.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1732-0905

USE 734-1732-0901 TIRE:SNOW H - Duro (0905)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 734-1735

Rim Assembly

Variations

Cub Cadet 734-1735-0499

RIM ASSEMBLY 6X3.25 .8 - CUB BEIGE (0499)

$

$

Not available

$

$

22

Cub Cadet 741-0401

Bearing
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0

23

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
