826 (312-588-100) - Cub Cadet 26" Snow Thrower Engine (1992) Tec 8 HP Engine Assembly Parts Diagram

26" Snow Thrower Engine

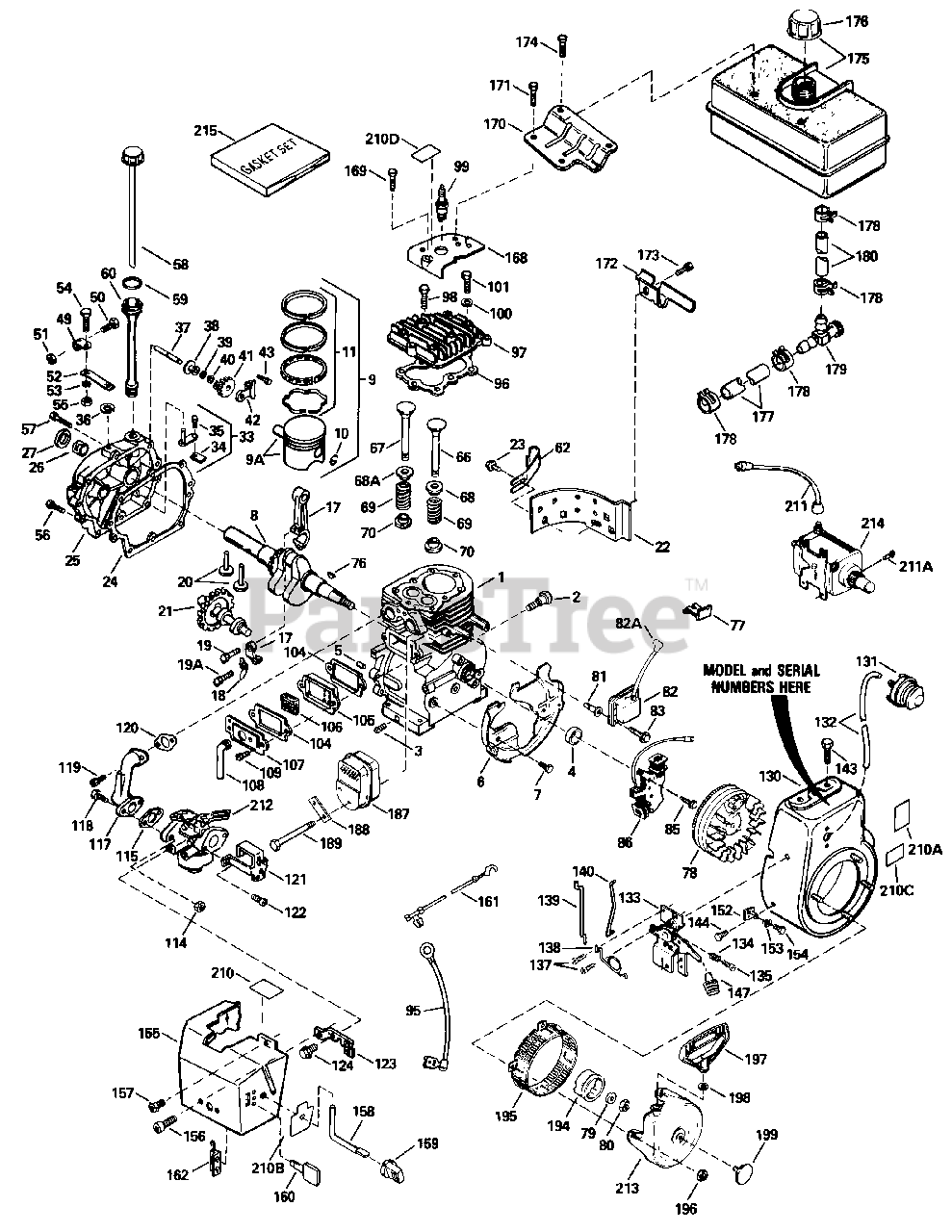

Tec 8 HP Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-35385

Cylinder

Note: (Incl. Nos. 3, 4 & 5)

$311.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-650820

Screw, Hex Hd. Shoulder, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 15

0

3

Cub Cadet TC-27642

Plug, Pipe

$1.99

$

In Stock, only 2 left!

0

4

Cub Cadet TC-35319

Seal, Oil

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet TC-27652

Pin, Dowel

$2.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-35326

Baffle, Blower Housing
(Superseded to TC-37853)

$11.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

8

Cub Cadet TC-35372

Crankshaft
(Superseded to TC-35571A)

$166.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-34552

Piston, Pin & Ring Ass'y.
(Superseded to TC-40049)

Note: (Incl. Nos. 9A, 10 & 11) (Std.)

$

$

Not available

Cub Cadet TC-34553

Piston, Pin & Ring Ass'y.

Note: (Incl. Nos. 9A, 10 & 11) (.010 oversize)

$

$

Not available

Cub Cadet TC-34554

Piston, Pin & Ring Ass'y.

Note: (Incl. Nos. 9A, 10 & 11) (.020 oversize)

$

$

Not available

9A

Cub Cadet TC-34329A

Piston & Pin Ass'y. (Std.)
(Superseded to TC-40049)

Note: (Incl. No. 10)

$

$

Not available

Cub Cadet TC-34330A

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 10)

$

$

Not available

Cub Cadet TC-34331A

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 10)

$

$

Not available

10

Cub Cadet TC-27888

Ring, Piston Pin Retaining

$1.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-34332

Ring Set, Piston (Std.)

$

$

Not available

11

Cub Cadet TC-34333

Ring Set, Piston (.010 Oversize)

$

$

Not available

11

Cub Cadet TC-34334

Ring Set, Piston (.020 Oversize)

$38.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-35373A

Rod Ass'y., Connecting
(Superseded to TC-36897A)

Note: (Incl. Nos. 13, 19 & 19A)

$48.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-35374

Dipper, Oil

$1.99

$

In Stock, only 4 left!

0

19

Cub Cadet TC-650908

Bolt, Connecting Rod
(Superseded to TC-651063)

$1.99

$

In Stock, only 3 left!

0

19A

Cub Cadet TC-650882

Bolt, Connecting Rod

$1.99

$

In Stock, only 1 left!

0

20

Cub Cadet TC-34034

Lifter, Valve
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

21

Cub Cadet TC-35375

Camshaft (Mechanical Compression Release)

$

$

Not available

22

Cub Cadet TC-33273A

Extension, Blower Housing

$7.49

$

Usually ships in 3-12 days

0

23

TC-650l28

Screw, Hex Hd. Sems, 10-24 x 1/2

$

$

Not available

24

Cub Cadet TC-35262

Gasket, Cylinder Cover
(Superseded to TC-37342)

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet TC-35376

Cover Ass'y., Cylinder
(Superseded to TC-35376A)

Note: (Incl. Nos. 26, 27 & 37)

$

$

Not available

26

Cub Cadet TC-35377

Bushing, Crankshaft

$11.99

$

In Stock, only 3 left!

0

27

TC-353l9

Seal, Oil

$

$

Not available

33

Cub Cadet TC-30699C

Rod Ass'y., Governor

Note: (Incl. Nos. 34 & 35)

$17.99

$

In Stock, only 1 left!

0

34

Cub Cadet TC-30700

Yoke, Governor

$1.99

$

In Stock, only 1 left!

0

35

Cub Cadet TC-650494

Screw, Fil. Hd. Sems, 6-40 x 5/16

$1.99

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-29642

Ring, Retaining

$100.99

$

In Stock, only 2 left!

0

37

TC-3l845

Shaft, Governor

$

$

Not available

38

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

39

Cub Cadet TC-35479

Washer, Flat

$

$

Not available

40

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

41

Cub Cadet TC-35378

Gear, Governor

Note: (Incl. No. 39)

$3.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-33369

Bracket, Governor Gear

$8.49

$

In Stock, only 1 left!

0

43

Cub Cadet TC-650836

Screw, Hex Washer Hd. Thread Forming, 10-24 x 1 1/2

$

$

Not available

49

Cub Cadet TC-29916

Clamp, Governor Lever

$1.99

$

In Stock, only 2 left!

0

50

Cub Cadet TC-29826

Screw, Hex Washer Hd., 10-32 x 3/4

$1.99

$

In Stock, only 4 left!

0

51

TC-292l6

Lock Nut, Hex "Keps," 10-32

$

$

Not available

52

Cub Cadet TC-33454

Lever, Governor
(Superseded to TC-33454A)

$10.99

$

In Stock, only 1 left!

0

53

Cub Cadet TC-29918

Washer, E.T. Lock

$1.99

$

In Stock, Qty 5

0

54

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

55

Cub Cadet TC-30322

Lock Nut, Hex "Keps," 8-32

$1.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-650832

Screw, Hex Washer Hd. Powerlok, 1/4-20 x 1-11/16

$

$

Not available

57

Cub Cadet TC-650833

Screw, Hex Washer Hd. Powerlok, 1/4-20 x 1-3/16

$1.99

$

Usually ships in 3-12 days

0

58

Cub Cadet TC-35555

Dipstick, Oil
(Superseded to TC-36205)

$10.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-35499

"O"-Ring

$1.49

$

In Stock, only 3 left!

0

60

Cub Cadet TC-35554

Tube, Oil Fill

$19.99

$

In Stock, only 1 left!

0

62

Cub Cadet TC-35540

Clip, Fill Tube

$1.99

$

In Stock, only 2 left!

0

66

Cub Cadet TC-27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 70)

$23.99

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-27880A

Valve, Exhaust (1/32" Oversize)

Note: (Incl. No. 70)

$

$

Not available

67

Cub Cadet TC-34035

Valve, Intake (Std.)

Note: (Incl. No. 70)

$15.99

$

In Stock, only 1 left!

0

67

Cub Cadet TC-34036

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 70)

$

$

Not available

68

Cub Cadet TC-27882

Cap, Upper Valve Spring

$1.99

$

In Stock, only 4 left!

0

68A

Cub Cadet TC-34689

Seal Ass'y., Intake Valve
(Superseded to TC-35862)

$9.49

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-27881

Spring, Valve

$3.99

$

In Stock, only 2 left!

0

70

Cub Cadet TC-32581

Cap, Lower Valve Spring

$6.49

$

In Stock, Qty 10

0

76

Cub Cadet TC-32589

Key, Flywheel

$1.49

$

In Stock, only 4 left!

0

77

Cub Cadet TC-29443

Clip, Spring

$1.99

$

In Stock, Qty 5

0

78

Cub Cadet TC-611093

Flywheel (w/ring gear)

$

$

Not available

79

Cub Cadet TC-650880

Washer, Lock

$1.99

$

In Stock, only 3 left!

0

80

Cub Cadet TC-650881

Nut, Flywheel

$1.99

$

Usually ships in 3-12 days

0

81

Cub Cadet TC-650872

Stud, Solid State Mounting

$

$

Not available

82

Cub Cadet TC-35135

Solid State Ass'y.
(Superseded to TC-35135B)

$62.99

$

Usually ships in 3-12 days

0

82A

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 3 left!

0

83

Cub Cadet TC-650814

Screw, Hex Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

85

Cub Cadet TC-650873

Screw, Hex Hd. Sems, 1/4-20 x 3/4

$1.99

$

Usually ships in 3-12 days

0

86

Cub Cadet TC-611111

Coil Ass'y., Alternator (18 Watt)

$68.99

$

Usually ships in 3-12 days

0

95

Cub Cadet TC-35234

Wire, Ground

$

$

Not available

96

Cub Cadet TC-34041A

Gasket, Cylinder Head

$5.49

$

Usually ships in 3-12 days

0

97

Cub Cadet TC-34030

Head, Cylinder

$

$

Not available

98

Cub Cadet TC-6021A

Screw, Hex Flange Hd. 5/16-18 x 1-1/2

$1.99

$

In Stock, only 3 left!

0

99

Cub Cadet 759-3331

Spark Plug (Champion J-8C or Equivalent)

$3.99

$

In Stock, only 3 left!

0

100

Cub Cadet TC-650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-650727

Screw, Special Hex. Hd. Tapped, 5/16-18 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

104

Cub Cadet TC-27896A

Gasket, Breather

$1.49

$

In Stock, Qty 10

0

105

Cub Cadet TC-28423

Body, Breather

$13.99

$

In Stock, only 1 left!

0

106

Cub Cadet TC-28424

Element, Breather

$3.99

$

In Stock, only 3 left!

0

107

Cub Cadet TC-28425

Cover, Breather

$7.49

$

In Stock, only 1 left!

0

108

Cub Cadet TC-35350

Tube, Breather

$6.49

$

Usually ships in 3-12 days

0

109

Cub Cadet TC-650128

Screw, Hex Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 1 left!

0

114

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, only 3 left!

0

115

Cub Cadet TC-33263

Gasket, Carburetor

$1.49

$

In Stock, Qty 20+

0

117

Cub Cadet TC-33877

Pipe, Intake

$48.99

$

Usually ships in 3-12 days

0

118

Cub Cadet TC-30088A

Screw, Fil. Hd. Sems, 1/4-28 x 1

$1.99

$

In Stock, only 2 left!

0

119

Cub Cadet TC-650378

Screw, Torx Fil. Hd. Sems, 5/16-18 x 1-1/8

$1.99

$

In Stock, only 3 left!

0

120

Cub Cadet TC-27915A

Gasket, Intake Pipe

$5.99

$

In Stock, Qty 20+

0

121

Cub Cadet TC-34587

Bracket, Choke
(Superseded to TC-34587A)

$9.49

$

In Stock, only 1 left!

0

122

Cub Cadet TC-28820

Screw, Fil. Hd. Sems, 10-32 x 1/2
(Superseded to TC-651081)

$4.49

$

In Stock, only 3 left!

0

123

Cub Cadet TC-33377

Bracket, Carburetor Cover Mounting
(Superseded to TC-37659)

$

$

Not available

124

Cub Cadet TC-650767

Screw, Hex Washer Hd. Sems, Taptite, 8-36 x 5/8

$1.49

$

In Stock, only 4 left!

0

130

Cub Cadet TC-34822A

Housing, Blower
(Superseded to TC-37961)

$

$

Not available

131

Cub Cadet TC-570682

Primer Ass'y.
(Superseded to TC-570682A)

$10.99

$

In Stock, only 4 left!

0

132

Cub Cadet TC-32180C

Line, Primer

$6.99

$

In Stock, only 4 left!

0

133

Cub Cadet TC-34677

Bracket Ass'y., Control

Note: (Incl. Nos. 134, 135, 136, & 138)

$54.99

$

In Stock, only 1 left!

0

134

Cub Cadet TC-31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

135

Cub Cadet TC-650549

Screw, Fil. Hd., 5-40 x 7/16
(Superseded to TC-651029)

$1.99

$

In Stock, only 2 left!

0

137

Cub Cadet TC-650821

Screw, Hex Washer Hd. Thread Cutting, 10-32 x 1/2

$1.99

$

In Stock, only 3 left!

0

138

Cub Cadet TC-34663

Spring, Speed Control

$1.99

$

In Stock, Qty 5

0

139

Cub Cadet TC-34667

Link, Governor

$1.99

$

Usually ships in 3-12 days

0

140

Cub Cadet TC-33878

Link, Governor-to-throttle

$6.99

$

In Stock, only 2 left!

0

143

Cub Cadet TC-650788

Screw, Hex Hd. Spinlock Thread Forming, 5/16-18 x 3/4

$1.99

$

In Stock, only 1 left!

0

144

Cub Cadet TC-29747B

Screw, Phil. Hex Hd. Sems, 5/16-24 x 21/32

$1.99

$

In Stock, Qty 9

0

147

Cub Cadet TC-35440

Knob, Control

$3.99

$

Usually ships in 3-12 days

0

152

Cub Cadet TC-34126

Bracket, Grommet Mounting

$1.99

$

Usually ships in 3-12 days

0

153

Cub Cadet TC-28545

Grommet, Plastic

$1.99

$

In Stock, only 4 left!

0

154

Cub Cadet TC-650760

Screw, Pan Hd. Taptite, 8-32 x 3/8

$1.99

$

In Stock, only 2 left!

0

155

Cub Cadet TC-35057A

Cover, Carburetor
(Superseded to TC-36547A)

$70.99

$

In Stock, only 1 left!

0

156

Cub Cadet TC-28942

Screw, Hex Washer Hd. Sems, 10-32 x 3/8

$1.49

$

In Stock, only 4 left!

0

157

Cub Cadet TC-650765

Screw, Hex Washer Hd. Self-Drilling, 10-32 x 1/2

$1.49

$

In Stock, only 4 left!

0

158

Cub Cadet TC-34586

Rod, Choke

$5.49

$

In Stock, only 1 left!

0

159

Cub Cadet TC-35438

Knob, Choke

$3.99

$

In Stock, only 1 left!

0

160

Cub Cadet TC-35062

Ignition, Key

$3.99

$

Usually ships in 3-12 days

0

161

Cub Cadet TC-35305

Wire, Ground

$

$

Not available

162

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, Qty 5

0

168

Cub Cadet TC-33272A

Cover, Cylinder Head
(Superseded to TC-33272D)

$7.49

$

Usually ships in 3-12 days

0

169

Cub Cadet TC-650802

Screw, Hex Washer Hd. Taptite, 1/4-20 x 5/8

$1.99

$

In Stock, Qty 5

0

170

Cub Cadet TC-34154

Plate, Fuel Tank Mounting

$

$

Not available

171

Cub Cadet TC-650713

Screw, Hex Hd., 5/16-18 x 5/8
(Superseded to TC-651055)

$

$

Not available

172

Cub Cadet TC-34155

Bracket, Fuel Tank

$

$

Not available

173

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

174

Cub Cadet TC-650665

Screw, Hex Washer Hd. Thread Cutting, 1/4-15 x 7/8

$1.99

$

In Stock, only 3 left!

0

175

Cub Cadet TC-34156A

Tank, Fuel

Note: (Incl. Nos. 176 & 178)

$54.99

$

Usually ships in 3-12 days

0

176

Cub Cadet TC-35355

Cap, Fuel Tank
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 9

0

177

Cub Cadet TC-30705

Line, Fuel

$16.99

$

In Stock, Qty 9

0

178

Cub Cadet TC-26460

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

179

Cub Cadet TC-32961

Valve, Fuel Shut-Off
(Superseded to TC-35857)

$13.99

$

Usually ships in 3-12 days

0

180

Cub Cadet TC-29774

Line, Fuel

$34.99

$

In Stock, Qty 6

0

187

Cub Cadet TC-35056

Muffler

$62.99

$

In Stock, only 2 left!

0

188

Cub Cadet TC-31588

Plate, Lock

$4.99

$

In Stock, Qty 20+

0

189

Cub Cadet TC-792093

Screw, Flanged Hex Hd., 5/16-18 x 4-3/16

$6.49

$

Usually ships in 3-12 days

0

194

Cub Cadet TC-35287

Hub, Starter

$

$

Not available

195

Cub Cadet TC-35446

Screen, Starter

$7.49

$

In Stock, only 1 left!

0

196

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, only 3 left!

0

197

Cub Cadet TC-590574

Starter Handle, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

198

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

199

Cub Cadet TC-35392

Plug, Starter

$1.99

$

Usually ships in 3-12 days

0

210

Cub Cadet TC-34346

Decal, Instruction
(Superseded to TC-36261)

$

$

Not available

210A

Cub Cadet TC-34686

Decal, Name

$

$

Not available

210B

Cub Cadet TC-35077

Decal, Choke

$

$

Not available

210C

Cub Cadet TC-34144

Decal, Primer

$

$

Currently unavailable

210D

Cub Cadet TC-34414

Decal, Warning (Bilingual)

$

$

Not available

211

Cub Cadet TC-32450B

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

211A

Cub Cadet TC-30063

Screw, Hex Washer Hd. Sems, 1/4-20 x 1/2

$1.99

$

In Stock, Qty 20+

0

212

Cub Cadet TC-632334A

Carburetor

Note: (Incl. No. 115)

$136.99

$

Usually ships in 3-12 days

0

213

Cub Cadet TC-590630

Starter, Rewind
(Superseded to TC-590689B)

$108.99

$

In Stock, only 1 left!

0

214

Motor Kit, Electric Starter (120 Volt)--See Electric Starter Motor

$

$

Not available

215

Cub Cadet TC-33279G

Gasket Set

$26.99

$

Usually ships in 3-12 days

0
