826 (312-588-100) - Cub Cadet 26" Snow Thrower Engine (1992) Tec 8 HP Electric Starter Motor Parts Diagram

26" Snow Thrower Engine

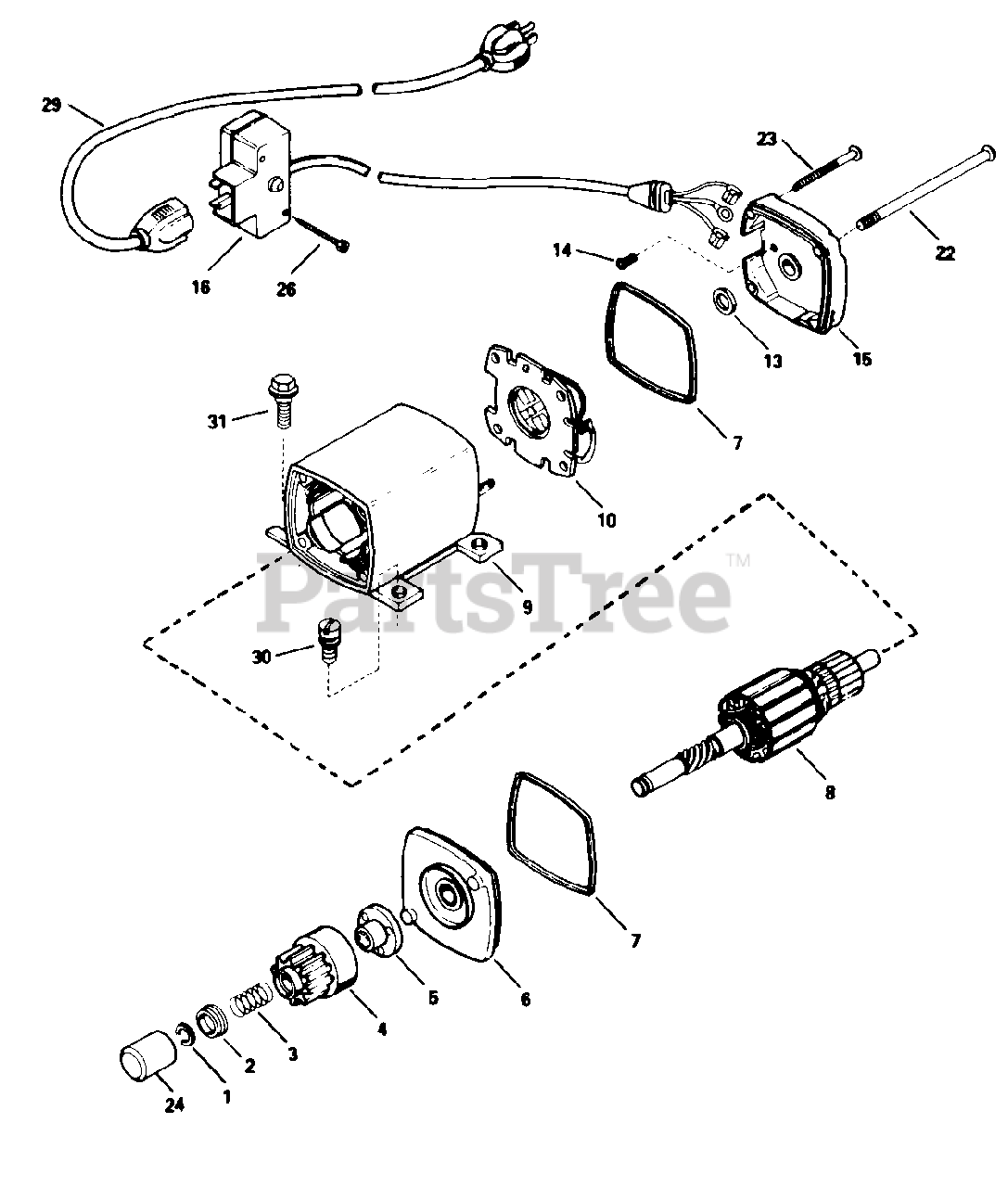

Tec 8 HP Electric Starter Motor Parts Diagram

  • Title

1

Cub Cadet TC-33842

Ring, Retainer

$3.99

$

In Stock, Qty 5

0

2

Cub Cadet TC-33430

Retainer, Spring

$7.99

$

In Stock, only 1 left!

0

3

Cub Cadet TC-33431

Spring, Anti-drift

$3.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-33432

Gear

$40.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-33433A

Nut and Retainer

Note: (Incl. No. 1)

$19.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-35449

Cap Ass'y., Drive End

Note: (Incl. No. 7)

$36.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-35450

"O"-Ring

$3.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-33541A

Armature

$

$

Currently unavailable

9

Cub Cadet TC-35451

Housing Ass'y.

$

$

Not available

10

Cub Cadet TC-35452

Card Ass'y., Brush
(Superseded to TC-35452A)

$58.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-590500

Washer, Thrust

$1.99

$

In Stock, only 1 left!

0

14

Cub Cadet TC-33441

Screw, Ground

$

$

Not available

15

Cub Cadet TC-35453

Cap Ass'y., Commutator End

Note: (Incl. No. 7)

$41.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-35454

Box Ass'y., Switch

Note: (Incl. No. 26)

$

$

Not available

22

Cub Cadet TC-35455

Bolt, Case

$

$

Not available

23

Cub Cadet TC-35456

Screw, Grounding

$1.99

$

In Stock, only 3 left!

0

24

Cub Cadet TC-33451

Cover, Dust

$3.49

$

In Stock, only 4 left!

0

26

Cub Cadet TC-650819

Screw, Hex Hd. Self-Tap, 6-32 x 2-1/2

$1.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-32450A

Cord, Extension (10'6")
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-30063

Screw, Fil. Hd. Sems, 1/4-20 x 9/16

$1.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-650820

Screw, Hex Hd. Shoulder, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 15

0

Cub Cadet TC-33329C

Electric Starter Motor Comp.

$

$

Currently unavailable
