826 (311-588-100) - Cub Cadet 26" Snow Thrower Engine (1991) Tec 8 HP HMSK80-155359P-Carburetor Parts Diagram

26" Snow Thrower Engine

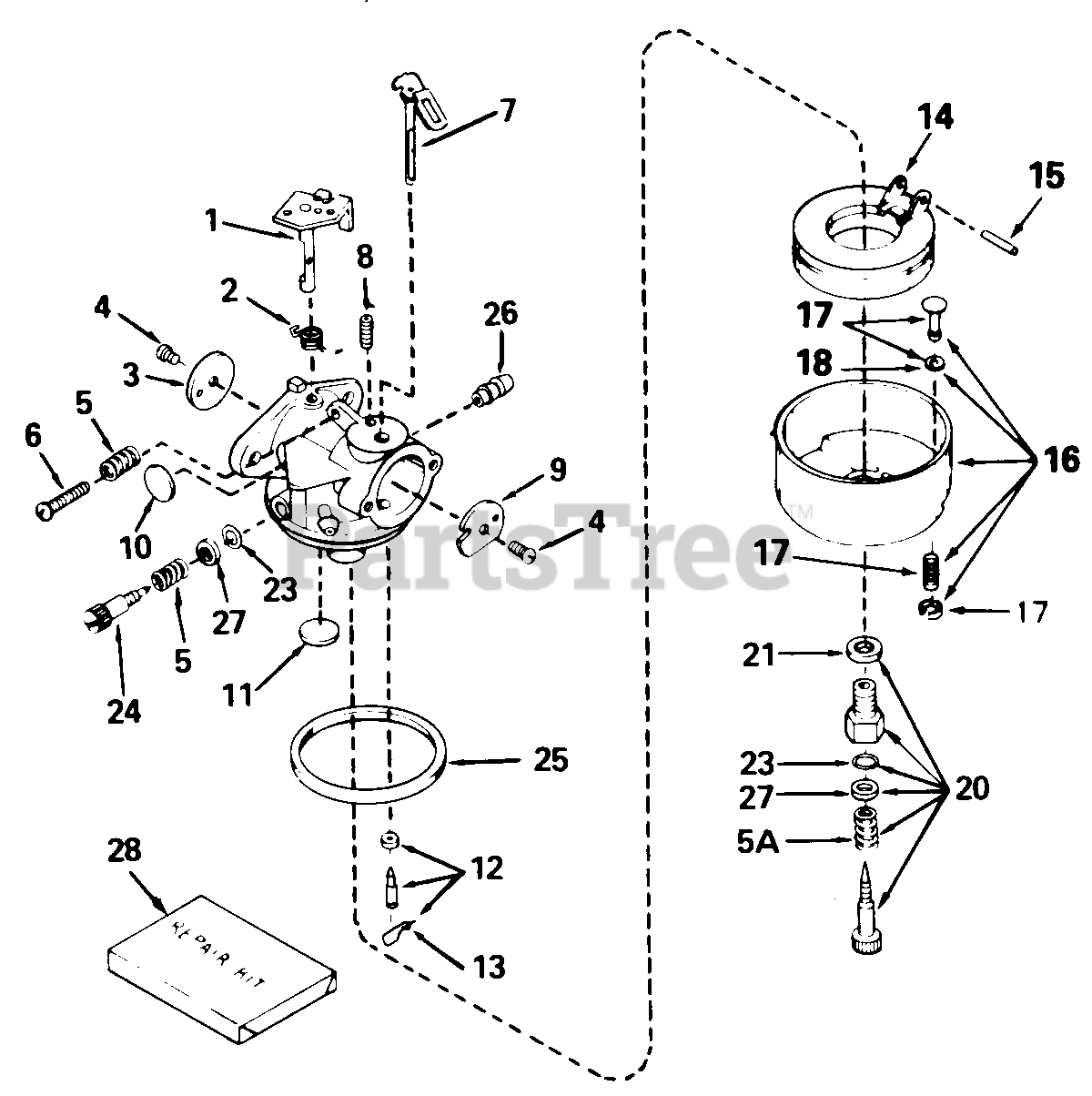

Tec 8 HP HMSK80-155359P-Carburetor Parts Diagram

  • Title

1

Cub Cadet TC-631776A

Shaft & Lever Ass'y., Throttle

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Spring, Throttle Return

$4.49

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-631778

Shutter, Throttle

$1.99

$

In Stock, only 3 left!

0

4

Cub Cadet TC-650506

Screw, Throttle & Choke Shutter

$1.49

$

In Stock, Qty 17

0

5

Cub Cadet TC-630766

Spring, Regulating Screw

$1.99

$

In Stock, only 2 left!

0

5A

Cub Cadet TC-630738

Spring, Main Adjustment Screw

$1.99

$

In Stock, Qty 9

0

6

Cub Cadet TC-650417

Screw, Idle Regulating
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

7

Cub Cadet TC-632112

Shaft & Lever Ass'y., Choke

$7.49

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-630735

Spring, Choke Positioning

$1.99

$

In Stock, only 4 left!

0

9

Cub Cadet TC-632174

Shutter, Choke

$4.49

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-630748

Plug, Welch

$1.99

$

In Stock, only 3 left!

0

11

Cub Cadet TC-631027

Plug, Welch

$1.99

$

In Stock, only 2 left!

0

12

Cub Cadet TC-631021

Inlet Needle, Seat & Clip Ass'y.
(Superseded to TC-631021B)

Note: (Incl. No. 13)

$6.99

$

In Stock, Qty 6

0

13

Cub Cadet TC-631022

Clip, Inlet Needle

$1.99

$

In Stock, only 4 left!

0

14

Cub Cadet TC-632019

Float, Carburetor
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

15

Cub Cadet TC-631024

Shaft, Float

$1.99

$

In Stock, Qty 11

0

16

Cub Cadet TC-631951

Bowl, Float

Note: (Incl. Nos. 17 & 18)

$17.99

$

Usually ships in 3-12 days

0

17

Cub Cadet TC-27136A

Plunger Ass'y., Drain

Note: (Incl. No. 18)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet TC-27554

Gasket, Drain Plunger

$1.49

$

In Stock, Qty 16

0

20

Cub Cadet TC-632239

Adjustment Screw Ass'y., Main

Note: (Incl. Nos. 5A, 21, 23 & 27)

$14.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-27110

Gasket, Bowl-to-Body
(Superseded to TC-27110A)

$2.49

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-630740

"O"-Ring, Adjustment Screw

$2.49

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-632281

Screw, Idle Adjustment

$3.99

$

In Stock, Qty 5

0

25

Cub Cadet TC-631028

Gasket, Bowl-to-Body
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

26

Cub Cadet TC-632164

Fitting, Fuel Inlet

$3.99

$

In Stock, only 1 left!

0

27

Cub Cadet TC-630739

Washer

$1.99

$

In Stock, Qty 7

0

28

Cub Cadet TC-632347

Repair Kit

Note: (Incl. Items Marked)

$20.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-632334A

Carburetor Comp.

$136.99

$

Usually ships in 3-12 days

0
