8255 - Lawn-Boy Walk-Behind Mower (SN: 700000001 - 799999999) (1977) MODEL D-481 ENGINE PARTS LIST MODELS USED ON: 8255 Parts Diagram

Walk-Behind Mower

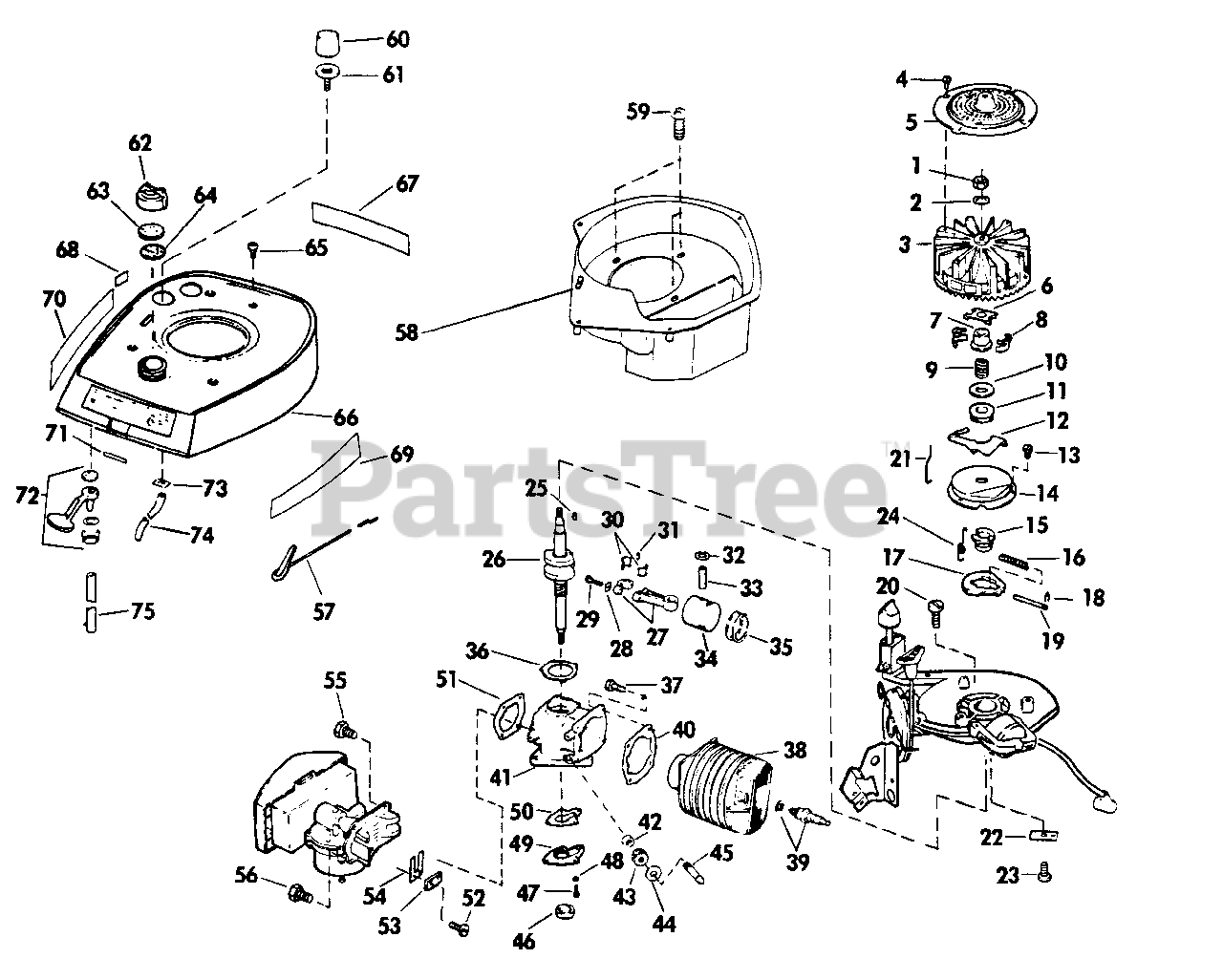

MODEL D-481 ENGINE PARTS LIST MODELS USED ON: 8255 Parts Diagram

  • Title

1

Lawn-Boy 130743

Nut-Flywheel

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.99

$

In Stock, Qty 6

0

2

Lawn-Boy 304161

Lockwasher-Flywheel

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

3

Lawn-Boy 681547

Flywheel & Screen Assy.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

4

Lawn-Boy 606537

Screw-Thd. Cutting

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.49

$

In Stock, Qty 5

0

5

Lawn-Boy 608805

Screen & Cup

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 678149

Governor Assembly

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

6

Lawn-Boy 602635

Yoke-Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

7

Lawn-Boy 602634

Collar-Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$21.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 602636

Weight-Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

9

Lawn-Boy 604269

Spring-Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$7.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 604413

Thrust Washer

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

11

Lawn-Boy 604265

Collar-Thrust

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$11.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 604266

Lever-Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$8.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 604344

Screw-Attaching Dust Cover

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

14

Lawn-Boy 604264

Dust Cover

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 604276

Cam-Spark Advance

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

16

Lawn-Boy 604267

Spring-Spark Advance

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604263

Flyweight-Spark Adv.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 604314

Retainer-Spring

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604277

Pin-Spark Advance

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

20

Lawn-Boy 604857

Screw-Arm. Plate to Crankcase

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY "LOCTITE" used during assembly

$6.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 604297

Rod Governor

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$20.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 607538

Tab

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

23

Lawn-Boy 604344

Screw

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

24

Lawn-Boy 608993

Spring-Variable Speed

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

25

Lawn-Boy 607199

Key-Crankshaft

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$4.99

$

In Stock, Qty 9

0

26

Lawn-Boy 608411

Crankshaft

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

Lawn-Boy 679155

Piston & Connecting Rod Assembly
(Superseded to 682864)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

27

Lawn-Boy 679156

Connecting Rod Assy.
(Superseded to 682865)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

28

Lawn-Boy 307558

Lockplate
(Superseded to 307578)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

29

Lawn-Boy 603976

Screw-Connecting Rod

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

30

Lawn-Boy 677982

Liners-Connecting Rod (Set)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$40.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$23.99

$

In Stock, Qty 5

0

32

Lawn-Boy 303712

Retaining Ring

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.99

$

In Stock, Qty 11

0

33

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$9.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 606607

Piston

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

35

Lawn-Boy 679252

Ring Set

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

36

Lawn-Boy 602590

Gasket-Crankcase to Arm. Plate .005 in.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY 678071 Gasket Set

$

$

Not available

36

Lawn-Boy 602763

Gasket-Crankcase to Arm. Plate .010 in.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY 678071 Gasket Set

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 602657

Screw-Cylinder to Crankcase

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

38

Lawn-Boy 678106

Cylinder & Sleeve Assy.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

39

Spark Plug & Gasket

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY Not sold individually; sold only in prepacked quantities of 20 part #679743.

$

$

Not available

40

Lawn-Boy 604116

Gasket-Cylinder to Crankcase

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY 678071 Gasket Set

$3.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 679748

Crankcase, Bearing & Seal

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

42

Lawn-Boy 608224

Seal, Driveshaft

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

43

Lawn-Boy 608367

Gear

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$88.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 608030

Washer-Thrust

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 607708

Driveshaft

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

46

Lawn-Boy 609342

Seal, Crankshaft

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$5.49

$

In Stock, Qty 15

0

47

Lawn-Boy 314576

Screw

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY "LOCTITE" used during assembly

$1.49

$

In Stock, Qty 6

0

48

Lawn-Boy 306547

Washer

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

49

Lawn-Boy 608500

Cover

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

50

Lawn-Boy 607824

Gasket

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 608362

Gasket-Reed Plate

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY 678071 Gasket Set

$4.49

$

In Stock, Qty 9

0

52

Lawn-Boy 303761

Screw-Machine
(Superseded to 612872)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.49

$

In Stock, Qty 5

0

53

Lawn-Boy 602587

Plate-Back-up

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$2.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 602588

Reed

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

55

Lawn-Boy 602192

Screw

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$8.49

$

Usually ships in 3-6 days

0

56

Lawn-Boy 604857

Screw

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

57

Lawn-Boy 681235

Knob & Rod

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$48.99

$

In Stock, only 2 left!

0

58

Lawn-Boy 681226

Air Baffle Assy.

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

59

Lawn-Boy 608808

Screw-Baffle

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

60

Lawn-Boy 607310

Bulb-Primer
(Superseded to 610482)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

61

Lawn-Boy 607311

Base-Primer

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

62

Lawn-Boy 679456

Cap, Gas Tank
(Superseded to 682755)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$21.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 607213

Gasket

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$1.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 609150

Baffle

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$5.49

$

In Stock, Qty 11

0

65

Lawn-Boy 608997

Screw, Cover

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$1.99

$

In Stock, only 2 left!

0

66

Lawn-Boy 681557

Cover, Engine

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

67

Lawn-Boy 609329

Decal, Lawn-Boy

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

68

Lawn-Boy 609206

Decal, Caution

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

69

Lawn-Boy 609330

Decal, R.H.-21"

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

70

Lawn-Boy 609331

Decal, L.H.-21"

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

71

Lawn-Boy 608810

Spring, Bar

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$3.49

$

In Stock, only 1 left!

0

72

Lawn-Boy 681524

Fuel, Shut Off

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$

$

Not available

73

Lawn-Boy 608027

Fastener, Primer

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$1.99

$

In Stock, Qty 6

0

74

Lawn-Boy 607575

Tube Primer
(Superseded to 44-3173)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$4.99

$

In Stock, only 1 left!

0

75

Lawn-Boy 607581

Fuel Hose
(Superseded to 112-7048)

Note: Note: For Complete Interlock Replacement Parts, see INTERLOCK LEVER ASSEMBLY

$6.99

$

Usually ships in 3-6 days

0
