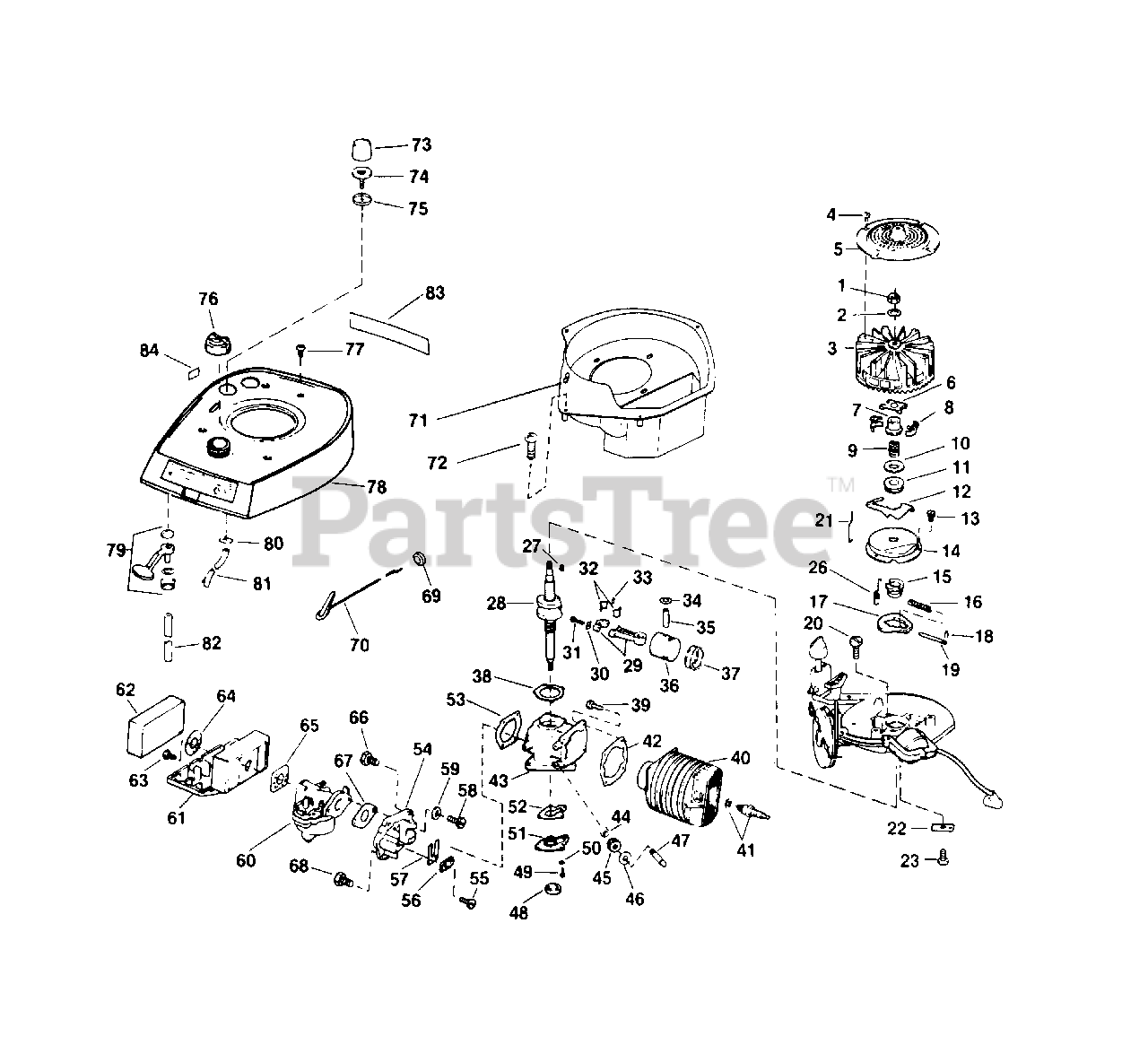

8253 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL D-481 ENGINE, STARTER, MAGNETO AND CARBURETOR PARTS LIST MODELS USED ON: 8253 Parts Diagram

Walk-Behind Mower

MODEL D-481 ENGINE, STARTER, MAGNETO AND CARBURETOR PARTS LIST MODELS USED ON: 8253 Parts Diagram

  • Title
+

Lawn-Boy 678149

Governor Assembly

$

$

Not available

+

Lawn-Boy 679155

Piston & Connecting Rod Assembly
(Superseded to 682864)

$

$

Not available

1

Lawn-Boy 130743

Nut-Flywheel

$3.49

$

In Stock, Qty 6

0

2

Lawn-Boy 304161

Lockwasher-Flywheel

$

$

Not available

3

Lawn-Boy 681547

Flywheel & Screen Assy.

$

$

Not available

4

Lawn-Boy 606537

Screw-Thd. Cutting

$2.49

$

In Stock, only 4 left!

0

5

Lawn-Boy 608805

Screen & Cup

$28.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 602635

Yoke-Governor

$

$

Not available

7

Lawn-Boy 602634

Collar-Governor

$24.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 602636

Weight-Governor

$

$

Not available

9

Lawn-Boy 604269

Spring-Governor

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 604413

Thrust Washer

$

$

Not available

11

Lawn-Boy 604265

Collar-Thrust

$12.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 604266

Lever-Governor

$9.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 604344

Screw-Attaching Dust Cover

$

$

Not available

14

Lawn-Boy 604264

Dust Cover

$

$

Not available

15

Lawn-Boy 604276

Cam-Spark Advance

$

$

Not available

16

Lawn-Boy 604267

Spring-Spark Advance

$4.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604263

Flywheel-Spark Adv.

$

$

Not available

18

Lawn-Boy 604314

Retainer-Spring

$3.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604277

Pin-Spark Advance

$

$

Not available

20

Lawn-Boy 604857

Screw-Ann. Plate to Crankcase

$7.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 604297

Rod Governor

$22.99

$

Usually ships in 3-6 days

0

$

$

Not available

23

$

$

Not available

26

Lawn-Boy 608993

Spring-Variable Speed

$

$

Not available

27

Lawn-Boy 607199

Key-Crankshaft

$5.49

$

In Stock, Qty 9

0

28

Lawn-Boy 608411

Crankshaft

$

$

Not available

29

Lawn-Boy 679156

Connecting Rod Assy.
(Superseded to 682865)

$

$

Not available

30

Lawn-Boy 307558

Lockplate
(Superseded to 307578)

$

$

Not available

31

Lawn-Boy 603976

Screw-Connecting Rod

$

$

Not available

32

Lawn-Boy 677982

Liners-Connecting Rod

$46.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

34

Lawn-Boy 303712

Retaining Ring

$3.49

$

In Stock, Qty 11

0

35

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

36

$

$

Not available

37

Lawn-Boy 679252

Ring Set

$

$

Not available

38

Lawn-Boy 602590

Gasket-Crankcase to Ann. Plate .005 in.

Note: 678071-Gasket Set

$

$

Not available

38

Lawn-Boy 602763

Gasket-Crankcase to Arm. Plate .010 in.

Note: 678071-Gasket Set

$2.49

$

In Stock, only 1 left!

0

39

Lawn-Boy 602657

Screw-Cylinder to Crankcase

$

$

Not available

40

Lawn-Boy 678106

Cylinder & Sleeve Assy.

$

$

Not available

41

Spark Plug & Gasket

Note: Not sold individually; sold only in prepack quantities of 20. Part #678743.

$

$

Not available

42

Lawn-Boy 604116

Gasket-Cylinder to Crankcase

Note: 678071-Gasket Set

$3.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 679748

Crankcase, Bearing & Seal

$

$

Not available

44

Lawn-Boy 608224

Seal, Driveshaft

$15.99

$

In Stock, only 1 left!

0

45

$100.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 608030

Washer-Thrust

$2.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 607708

Driveshaft

$

$

Not available

48

Lawn-Boy 605020

Seal, Crankshaft
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

49

$1.99

$

In Stock, Qty 6

0

50

$

$

Not available

51

$

$

Not available

52

$4.49

$

Usually ships in 3-6 days

0

53

Lawn-Boy 608362

Gasket-Reed Plate

Note: 678071-Gasket Set

$4.49

$

In Stock, Qty 7

0

54

Lawn-Boy 679711

Reed Plate Assembly

$

$

Not available

55

Lawn-Boy 303761

Screw-Machine
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

56

Lawn-Boy 602587

Plate-Back-up

$3.49

$

Usually ships in 3-6 days

0

57

$

$

Not available

58

$

$

Not available

59

$

$

Not available

60

Lawn-Boy 679710

Carburetor

$

$

Not available

61

Lawn-Boy 607578

Case-Air Filter

$36.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 607580

Element

$4.99

$

In Stock, Qty 8

0

63

$

$

Not available

64

$2.99

$

In Stock, only 1 left!

0

65

$3.49

$

In Stock, only 4 left!

0

66

$

$

Not available

67

$3.99

$

In Stock, Qty 18

0

68

$7.49

$

Usually ships in 3-6 days

0

69

Lawn-Boy 608820

Grommet

$

$

Not available

70

Lawn-Boy 681235

Knob & Rod

$47.99

$

In Stock, only 2 left!

0

71

Lawn-Boy 681226

Air Baffle Assy.

$

$

Not available

72

Lawn-Boy 608808

Screw-Baffle

$

$

Not available

73

Lawn-Boy 607310

Bulb-Primer
(Superseded to 610482)

$

$

Not available

74

Lawn-Boy 607311

Base-Primer

$

$

Not available

75

Lawn-Boy 607844

Cap-Primer

$

$

Not available

76

Lawn-Boy 681214

Cap-Gas Tank

$

$

Not available

77

Lawn-Boy 608997

Screw-Cover

$2.49

$

In Stock, only 2 left!

0

78

Lawn-Boy 681521

Cover-Engine

$

$

Not available

79

Lawn-Boy 681524

Fuel Shut-off

$

$

Not available

80

Lawn-Boy 608027

Fastener-Primer

$2.49

$

In Stock, Qty 6

0

81

Lawn-Boy 607575

Gas Line-Primer
(Superseded to 44-3173)

$5.49

$

In Stock, only 1 left!

0

82

Lawn-Boy 607581

Fuel Hose
(Superseded to 112-7048)

$6.99

$

Usually ships in 3-6 days

0

83

Lawn-Boy 609200

Decal-Lawn-Boy

$

$

Not available

84

$

$

Not available

85

Lawn-Boy 609199

Decal RH

$

$

Not available

86

Lawn-Boy 609198

Decal LH

$

$

Not available

87

Lawn-Boy 608819

Clip-Speed Control

$

$

Not available
