8252 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL 8252 SELF-PROPELLED WITH GRASSCATCHER Parts Diagram

Walk-Behind Mower

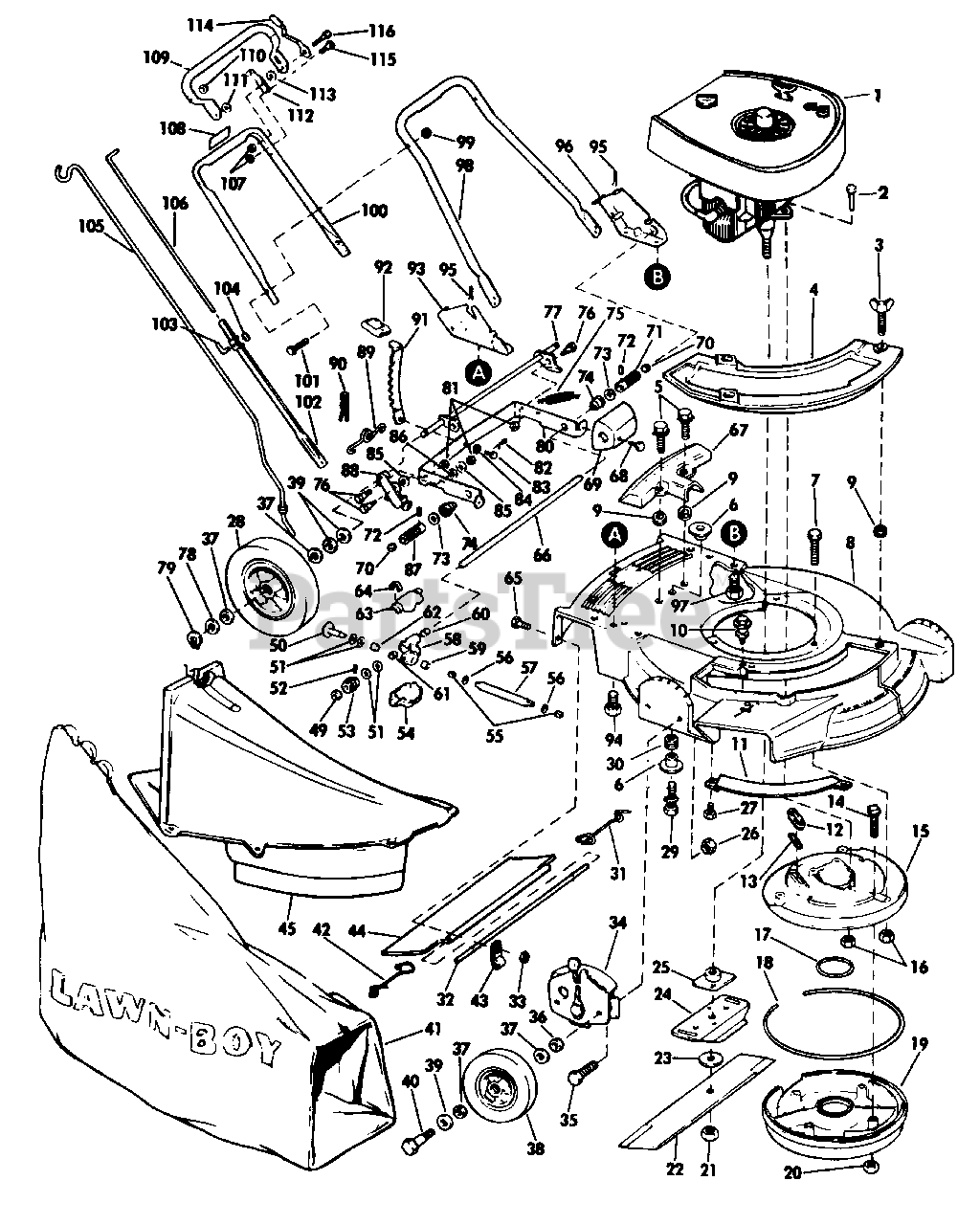

MODEL 8252 SELF-PROPELLED WITH GRASSCATCHER Parts Diagram

  • Title

1

Engine-See Note #2

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.) NOTE #2. Complete engine replacement part no. 681476, D-409 is available for this mower. See page 36 for parts.

$

$

Not available

2

Lawn-Boy 603014

Screw-Crankcase to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

3

Lawn-Boy 606733

Wing Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$9.99

$

In Stock, Qty 6

0

4

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$36.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 606452

Sems Screw-Drive Cover Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

6

Lawn-Boy 607605

Spacer-Flanged

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

7

Lawn-Boy 607601

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 679937

Housing-21"
(Superseded to 684750)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1285.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1.49

$

In Stock, Qty 13

0

10

Lawn-Boy 607809

Screw
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$4.49

$

In Stock, Qty 16

0

11

Lawn-Boy 608175

Toe Bar

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$77.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$2.99

$

In Stock, Qty 16

0

13

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$11.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 607847

Screw-Muffler to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

15

Lawn-Boy 607711

Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

16

Lawn-Boy 608311

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 607748

Gasket-Muffler (inside)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

18

Lawn-Boy 607600

Gasket-Muffler (outside)
(Superseded to 604516)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

19

Lawn-Boy 607599

Muffler Cover

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

20

Lawn-Boy 602315

Nut-Muffler to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$4.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 603703

Blade
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$33.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.99

$

In Stock, Qty 12

0

24

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

25

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$51.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 602830

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

27

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 678638

Wheel-Rear
(Superseded to 682972)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$29.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 607606

Sems Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

30

Lawn-Boy 307417

Grommet

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$6.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

32

Lawn-Boy 608174

Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

33

Lawn-Boy 603477

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

34

Lawn-Boy 678462

Height Adjustment Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

35

Lawn-Boy 605101

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

36

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 605255

Washer Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 678636

Front Wheel

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$28.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.) NOTE #1. Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire

$2.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 603441

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$7.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 679966

Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

42

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

43

Lawn-Boy 608161

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$11.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

49

Lawn-Boy 605255

Washer Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1.99

$

In Stock, Qty 20+

0

50

Lawn-Boy 607663

Gear Driver
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

51

Lawn-Boy 608030

Washer-Thrust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$2.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 311866

Roll Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.49

$

In Stock, only 1 left!

0

53

Lawn-Boy 607664

Gear Drive
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

54

Lawn-Boy 608291

Cover-Gear Bottom

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

55

Lawn-Boy 608563

Bushing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$9.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 303067

"O" Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Currently unavailable

57

Lawn-Boy 607654

Tube
(Superseded to 683129)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

58

Lawn-Boy 679699

Bracket & Bearing Assembly
(Superseded to 683971)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

59

Lawn-Boy 608287

Needle Bearing-Sealed
(Superseded to 510505)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

60

Lawn-Boy 608285

Needle Bearing-Sealed
(Superseded to 117-3500)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.49

$

In Stock, Qty 16

0

61

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.49

$

In Stock, Qty 16

0

62

Lawn-Boy 510505

Needle Bearing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

63

Lawn-Boy 608289

Cover-Gear Top

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

64

Lawn-Boy 608292

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

65

Lawn-Boy 306487

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

66

Lawn-Boy 679952

Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

67

Lawn-Boy 607655

Cover-Drive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$51.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 607783

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

69

Lawn-Boy 607767

Guard-Roller

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

70

Lawn-Boy 602926

Plug

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$12.99

$

In Stock, Qty 6

0

71

Lawn-Boy 607657

Drive Roller-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

72

Lawn-Boy 606013

Pin-Spirol

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.49

$

In Stock, Qty 5

0

73

Lawn-Boy 603037

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

74

Lawn-Boy 678782

Sleeve & Bearing Assembly
(Superseded to 681904)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

75

Lawn-Boy 603003

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

76

Lawn-Boy 602984

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

77

Lawn-Boy 681291

Axle Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Currently unavailable

78

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$2.99

$

In Stock, Qty 20+

0

79

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$5.99

$

In Stock, Qty 6

0

80

Lawn-Boy 608934

Bracket
(Superseded to 610500)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$384.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 602201

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

82

Lawn-Boy 603036

Cotter Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

83

Lawn-Boy 606115

Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$7.49

$

Usually ships in 3-6 days

0

84

Lawn-Boy 606116

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

85

Lawn-Boy 603093

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

86

Lawn-Boy 603123

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

87

Lawn-Boy 607658

Drive Roller-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

88

Lawn-Boy 679630

Clutch
(Superseded to 683775)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

89

Lawn-Boy 605802

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$7.99

$

In Stock, Qty 7

0

90

Lawn-Boy 603019

Hairpin
(Superseded to 1-806003)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1.49

$

In Stock, Qty 20+

0

91

Lawn-Boy 607673

Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

92

Lawn-Boy 607562

Knob

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$15.99

$

Usually ships in 3-6 days

0

93

Lawn-Boy 679667

Bracket-Handle-R.H.
(Superseded to 681780)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$102.99

$

Usually ships in 3-6 days

0

94

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.99

$

In Stock, only 3 left!

0

95

Lawn-Boy 605803

Clip

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

96

Lawn-Boy 679668

Bracket-Handle-L.H.
(Superseded to 681781)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

97

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$3.99

$

In Stock, only 3 left!

0

98

Lawn-Boy 607296

Handle-Lower
(Superseded to 611113)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

99

Lawn-Boy 602315

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$4.99

$

In Stock, only 2 left!

0

100

Lawn-Boy 607146

Handle-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

101

Lawn-Boy 602486

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Currently unavailable

102

Lawn-Boy 679661

Control Lever Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

103

Lawn-Boy 602993

Screw
(Superseded to 603699)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

104

Lawn-Boy 602992

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

105

Lawn-Boy 607561

Rod-Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

106

Lawn-Boy 607660

Control Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

107

Lawn-Boy 6Q3477

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Currently unavailable

108

Lawn-Boy 608958

Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

109

Lawn-Boy 679664

Handle & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

110

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$1.49

$

In Stock, Qty 6

0

111

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

112

Lawn-Boy 607666

Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

113

Lawn-Boy 302474

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

114

Lawn-Boy 679640

Spring-Lockout

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available

115

Lawn-Boy 306483

Screw-Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. (Note: For Complete Interlock Replacement Parts, See page 22.)

$

$

Not available
