8252 - Lawn-Boy Walk-Behind Mower (SN: 500000001 - 599999999) (1975) MODEL D-481 MAGNETO AND STARTER PARTS LIST MODELS USED ON: 8252 Parts Diagram

Walk-Behind Mower

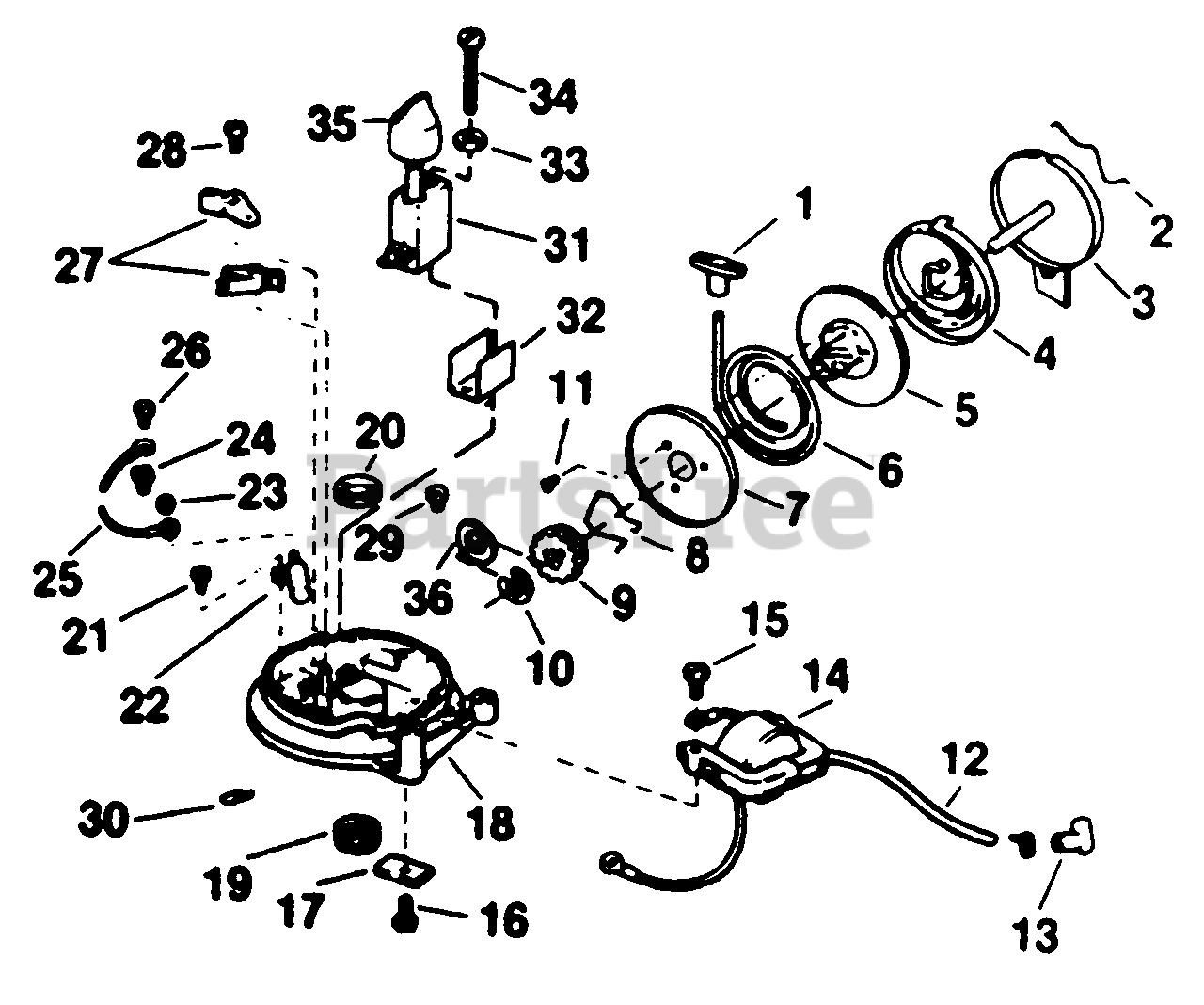

MODEL D-481 MAGNETO AND STARTER PARTS LIST MODELS USED ON: 8252 Parts Diagram

  • Title
1

Lawn-Boy 606863

Handle-Starter
(Superseded to 609477)

$

$

Not available

2

Lawn-Boy 604573

Spring-Starter Rope Retainer

$5.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 681301

Spring-Cup-Pin Assembly
(Superseded to 681395)

$

$

Not available

4

Lawn-Boy 604257

Spring-Starter

$40.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 609002

Pulley-Starter
(Superseded to 681896)

$

$

Not available

6

Lawn-Boy 607874

Rope-Starter

$

$

Not available

7

Lawn-Boy 604244

Plate-Starter Pulley
(Superseded to 681896)

$

$

Not available

8

Lawn-Boy 604260

Spring-Starter Pinion

$14.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 607547

Pinion-Starter

$

$

Not available

10

Lawn-Boy 609004

Retainer-Push-On

$

$

Not available

11

Lawn-Boy 609003

Screw-Threaded Cutting Starter

$

$

Not available

12

Lawn-Boy 678117

High Tension Lead Assembly

$20.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 580339

Cover & Terminal Assembly
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 678539

Coil & Lamination Assy.

$

$

Not available

15

Lawn-Boy 607526

Screw-Lamination Mounting
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 604857

SCrew-Starter Attach.

$7.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604261

Clamp-Starter Pin

$

$

Not available

18

Lawn-Boy 681316

Arm. Plate Bearing & Oil Seal Assy.

$

$

Not available

19

Lawn-Boy 679277

Bearing

$

$

Not available

20

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, Qty 5

0

21

Lawn-Boy 510193

Screw-Cond. Mtg.

$

$

Currently unavailable

22

Lawn-Boy 677299

Cond. & Nut Assy.

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 604256

Grommet-Nylon

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 678116

Terminal & Lead Assy.

$

$

Not available

26

Lawn-Boy 604986

Screw-Shut-Off Switch

$

$

Not available

27

Lawn-Boy 677254

Bracket Base & Arm Assembly

$54.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 303212

Screw-Breaker Base

$

$

Not available

29

Lawn-Boy 607255

Grommet

$

$

Not available

30

$

$

Not available

31

Lawn-Boy 679620

Shorting Switch

$

$

Not available

32

Lawn-Boy 608597

Insulator

$

$

Not available

33

$

$

Not available

34

$

$

Not available

35

$

$

Not available

36

$

$

Not available
