825005 - Ariens Emperor Rear Grass Bagger (SN: 009501 & Above) Grass Bagger Parts Diagram

Emperor Rear Grass Bagger

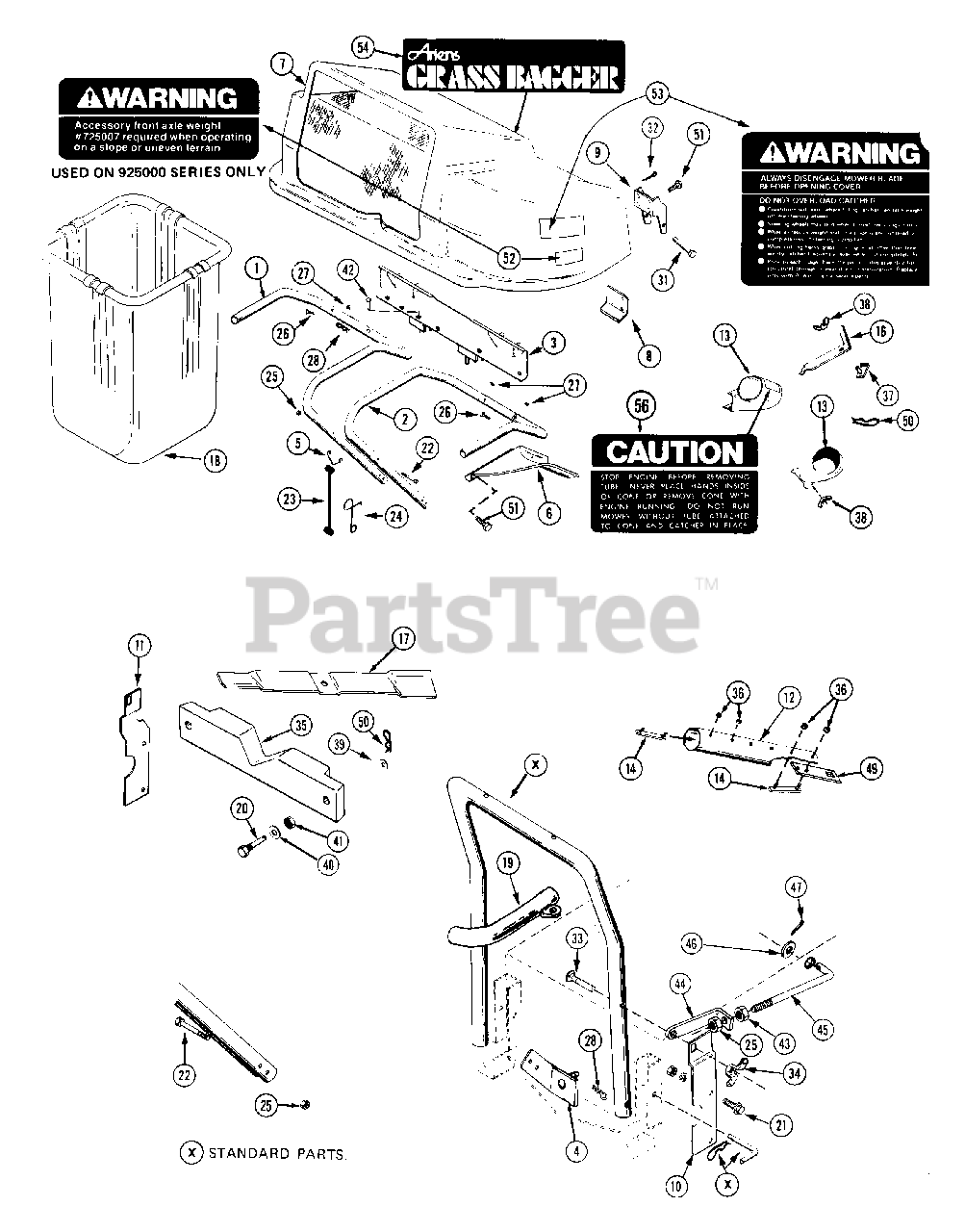

Grass Bagger Parts Diagram

  • Title

1

Ariens 02536800

TUBE L.H. SUPPORT

$

$

Not available

2

Ariens 02530900

TUBE R.H. SUPPORT

$

$

Not available

3

Ariens 02536900

FRAME

$

$

Not available

4

Ariens 02537000

LOWER MOUNTING BRACKET

$

$

Not available

5

Ariens 02533000

ANCHOR

$

$

Not available

6

Ariens 02537100

SUPPORT

$

$

Not available

7

Ariens 62503100

GRASS CATCHER COVER ASSEMBLY
(Superseded to 52504000)

$

$

Not available

8

Ariens 02534800

RETAINER

$

$

Not available

9

Ariens 02531600

HINGE

$

$

Not available

10

Ariens 02531800

STABILIZER R.H.

$

$

Not available

11

Ariens 02531900

STABILIZER L.H.

$

$

Not available

12

Ariens 02532000

TUBE BLANK

$

$

Not available

13

Ariens 62504600

GRASS CATCHER BOOT ASSEMBLY
(Superseded to 52504100)

$

$

Not available

14

Ariens 02533300

CLIP

$

$

Not available

16

Ariens 02532400

STRAP CONE

$

$

Not available

17

Ariens 02532500

MOWER BLADE
(Superseded to 02728700)

$39.99

$

In Stock, only 1 left!

0

18

Ariens 02532600

BASKET

$

$

Not available

19

Ariens 02537500

EXHAUST PIPE EXTENSION

$

$

Not available

20

Ariens 01226800

STUD-WEIGHT

$

$

Not available

21

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 05904600

BLT-HEX .25-20X2.25 GR2
(Superseded to 05956700)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 02533100

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

25

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

27

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 10

0

28

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 02531700

CLEVIS PIN

$

$

Not available

32

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 07003600

BLT-CRVD-HD .31-18X1.44 YWZC

$

$

Not available

34

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$3.49

$

Usually ships in 4-12 days

0

35

Ariens 02537700

WEIGHT
(Superseded to 72701600)

Note: (Optional Equipment)

$

$

Not available

36

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 9

0

37

Ariens 02532300

CLIP CONE

$

$

Not available

38

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

39

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

Note: (Optional Equipment)

$1.49

$

In Stock, only 2 left!

0

40

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

Note: (Optional Equipment)

$2.99

$

In Stock, Qty 9

0

41

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

Note: (Optional Equipment)

$3.99

$

In Stock, only 2 left!

0

42

Ariens 02537300

CLEVIS PIN

$

$

Not available

43

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 5

0

44

Ariens 02534600

BRACKET

$

$

Not available

45

Ariens 02534700

ROD

$

$

Not available

46

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

In Stock, only 1 left!

0

47

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 11

0

49

Ariens 02539700

STRAP
(Superseded to 53506100)

$

$

Not available

50

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

51

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

52

Ariens 07848800

WHEEL WEIGHT WARNING DECAL

$

$

Not available

53

Ariens 07848700

WARNING DECAL
(Superseded to 05359700)

$18.99

$

Usually ships in 4-12 days

0

54

Ariens 07848500

ARIENS GRASS BAGGER DECAL
(Superseded to 07796500)

$

$

Not available
