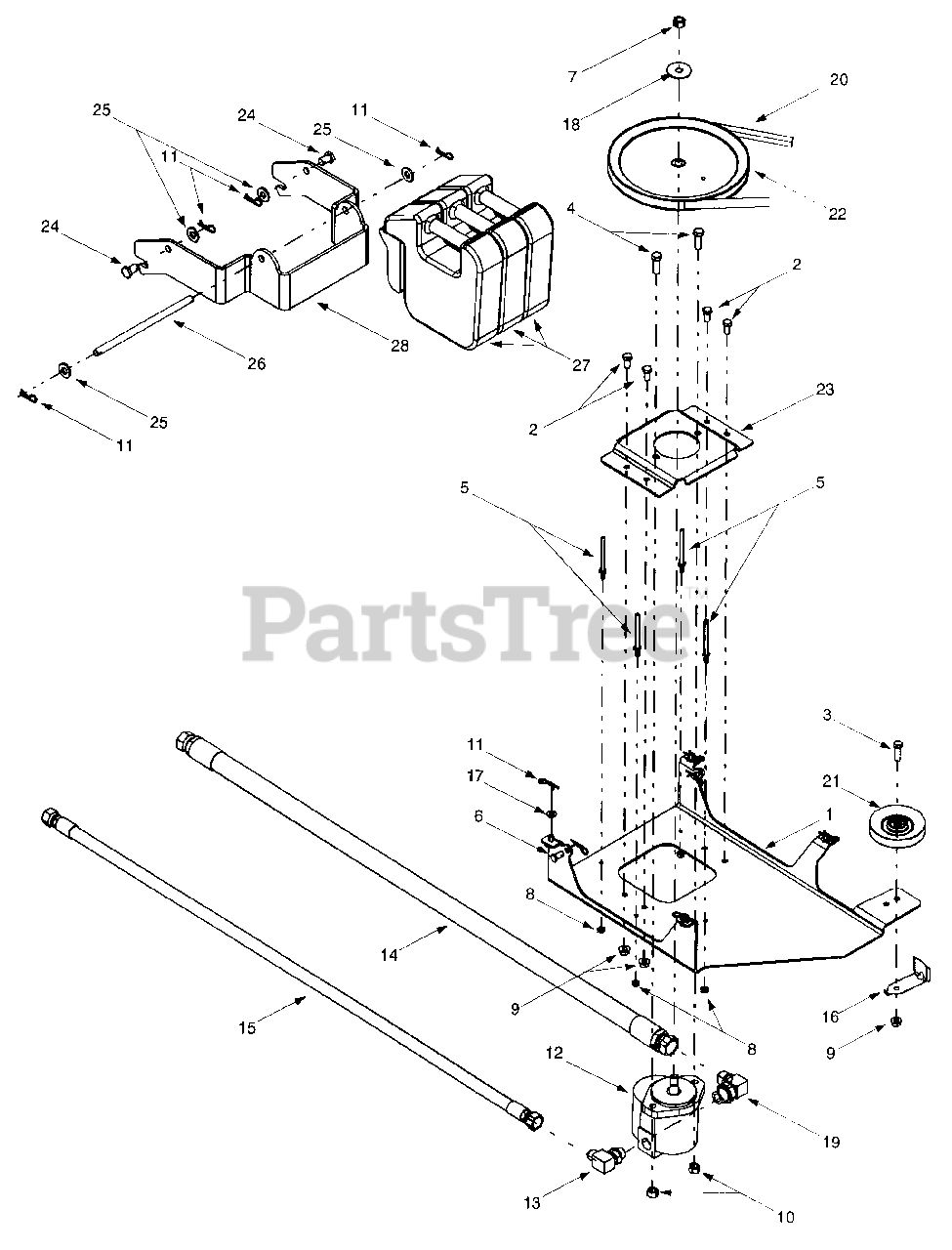

825 (190-825-101) - Cub Cadet 30" Hydraulic Rear Mount Tiller Hydraulic Pump And Undercarriage Assembly Parts Diagram

30" Hydraulic Rear Mount Tiller

Hydraulic Pump And Undercarriage Assembly Parts Diagram

  • Title

1

Cub Cadet 683-0309

Hydraulic Pump Bracket Ass'y
(Superseded to 683-0309-0637)

Variations

Cub Cadet 683-0309-0637

BRACKET-HYD PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 12

0

3

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 711-1000

Belt Keeper Pin
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

6

Cub Cadet 711-1421

Clevis Pin, 3/8 x .75

$7.49

$

In Stock, only 3 left!

0

7

Cub Cadet 712-0239

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

9

Cub Cadet 712-0431

Hex Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3067

Hex Lock Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-0145

Click Pin, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 718-0545

Eaton Hydraulic Pump

$

$

Not available

13

Cub Cadet 727-0220

90° Hydraulic Adapter, 7/8

$

$

Not available

14

Cub Cadet 727-0628

Hydraulic Hose, 1.0625-12 x 54

$

$

Not available

15

Cub Cadet 727-0629

Hydraulic Hose, .875-14 x 49

$

$

Not available

16

Cub Cadet 732-0990

Belt Guard

$8.49

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0275

Flat Washer, .344 x.688 x.065

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-3027

Flat Washer, .531 x 1.75 x .090

$

$

Not available

19

Cub Cadet 737-0309

90° Hydraulic Adapter, 1-1/16

$

$

Not available

20

Cub Cadet 754-0341

V-belt
(Superseded to 954-0341)

Note: (For Manual PTO Tractors)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 754-0490

V-belt
(Superseded to 954-0490)

Note: (For Electric PTO Tractors)

$

$

Not available

21

Cub Cadet 756-0487

Idler Pulley, 5/8 x 4.0

$48.99

$

In Stock, only 1 left!

0

22

Cub Cadet 756-1178

Drive Pulley, 10.0

$

$

Not available

23

Cub Cadet 786-0283

Pump Mounting Bracket

$

$

Not available

24

Cub Cadet 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

25

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

26

Cub Cadet 747-1186

Weight Guard Rod

$

$

Not available

27

Cub Cadet 759-3389

45 lb. Suitcase Weight
(Superseded to 490-900-M059)

$86.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 783-0870

Weight Bracket

Variations

Cub Cadet 783-0870-0637

WEIGHT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$
