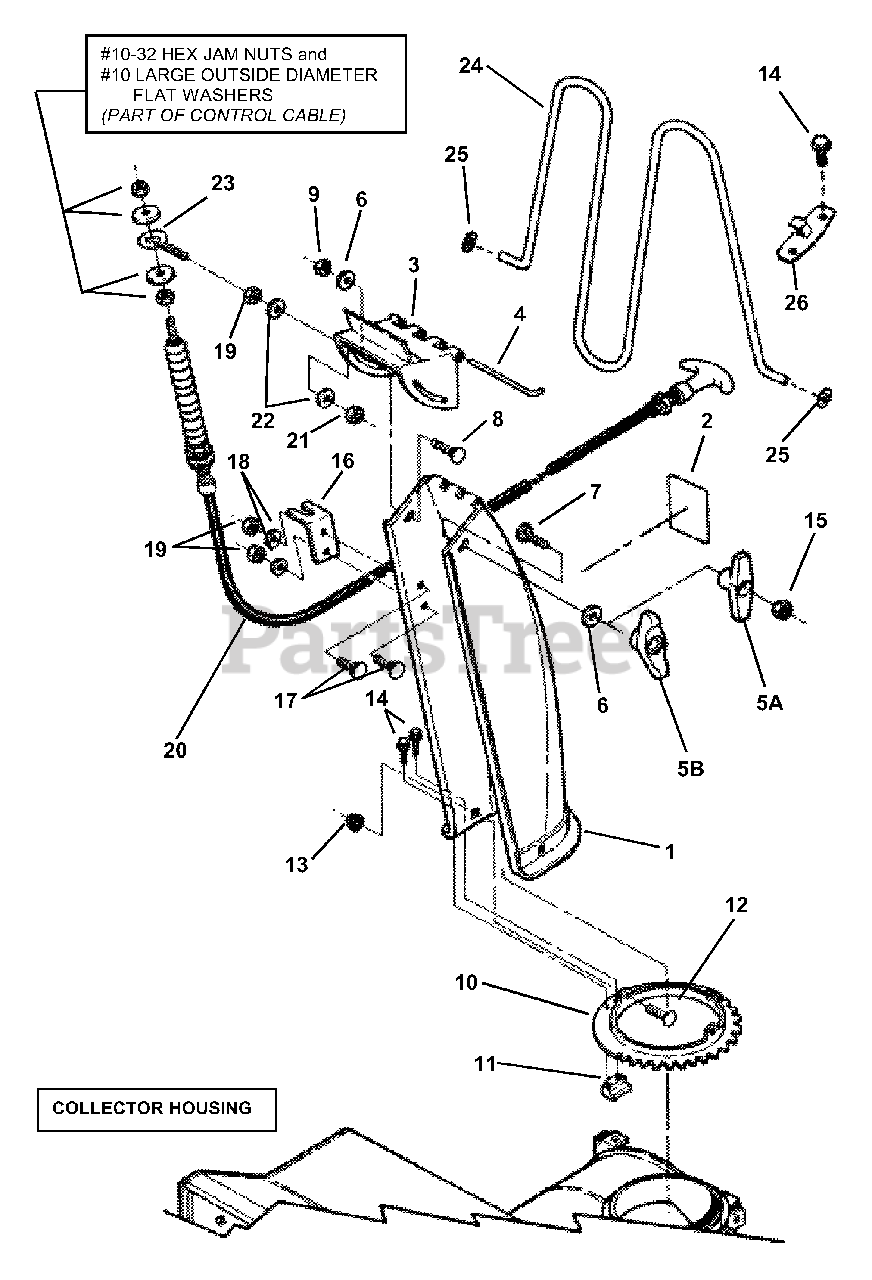

8246 (84924) - Snapper 24" Snow Thrower, 8hp Discharge Chute Parts Diagram

24" Snow Thrower, 8hp

Discharge Chute Parts Diagram

  • Title

1

Snapper 7028217

CHUTE, Discharge
(Superseded to 7053411YP)

Note: (8246 Model Only)

$

$

Not available

Snapper 7028208

CHUTE, Remote Control Discharge
(Superseded to 7072881SM)

$

$

Not available

2

Snapper 7024773

DECAL, Hand Danger
(Superseded to 7024773YP)

$13.99

$

Usually ships in 2-12 days

0

Snapper 7074197

DECAL, Hand Danger (Euro)
(Superseded to 7074197SM)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7028235

DEFLECTOR, Remote Control Discharge
(Superseded to 7029847YP)

$73.99

$

Usually ships in 2-12 days

0

Snapper 7028184

DEFLECTOR
(Superseded to 7029847YP)

Note: (8246 Model Only)

$73.99

$

Usually ships in 2-12 days

0

4

Snapper 7028253

PIN, Hinge
(Superseded to 7028253YP)

$11.99

$

Usually ships in 2-12 days

0

5A

Snapper 7035744

T-KNOB (Plastic)
(Superseded to 7105085YP)

Note: Was 16324

$3.99

$

In Stock, Qty 20+

0

5B

Snapper 7035744

T-KNOB (w/5/16-18 insert)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 7

0

8

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7039765

RING, Chute (59 Tooth, 229 Degrees)
(Superseded to 7039765SM)

$65.99

$

In Stock, only 1 left!

0

Snapper 7047855

RING, Chute (Euro) (48 Tooth, 187 Degrees)
(Superseded to 7047855YP)

$77.99

$

Usually ships in 2-12 days

0

11

Snapper 7011938

RETAINER (Chute Ring to Housing)
(Superseded to 7011938SM)

$

$

Not available

12

Snapper 7091077

BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 7091077YP)

$

$

Not available

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

15

Snapper 7091511

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7032813

MOUNT, Cable
(Superseded to 7032813SM)

$18.99

$

Usually ships in 2-12 days

0

17

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

19

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7045172

CABLE, Control
(Superseded to 7045172SM)

$

$

Not available

21

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

Note: Was 91099

$

$

Not available

22

Snapper 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7023798

BOLT, 1/4-20 x 1-1/2" Eye
(Superseded to 7023798SM)

$3.49

$

In Stock, only 2 left!

0

24

Snapper 7019692

WIRE, Safety
(Superseded to 7019692SM)

$31.99

$

Usually ships in 2-12 days

0

25

Snapper 7023673

PUSH-ON Fastener, 5/32" Dia.
(Superseded to 7023673YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7032559

RETAINER, Safety Wire
(Superseded to 7032559YP)

$14.99

$

Usually ships in 2-12 days

0
