8245 (84369) - Snapper 24" Snow Thrower, 8hp Wheels, Hub Parts Diagram

24" Snow Thrower, 8hp

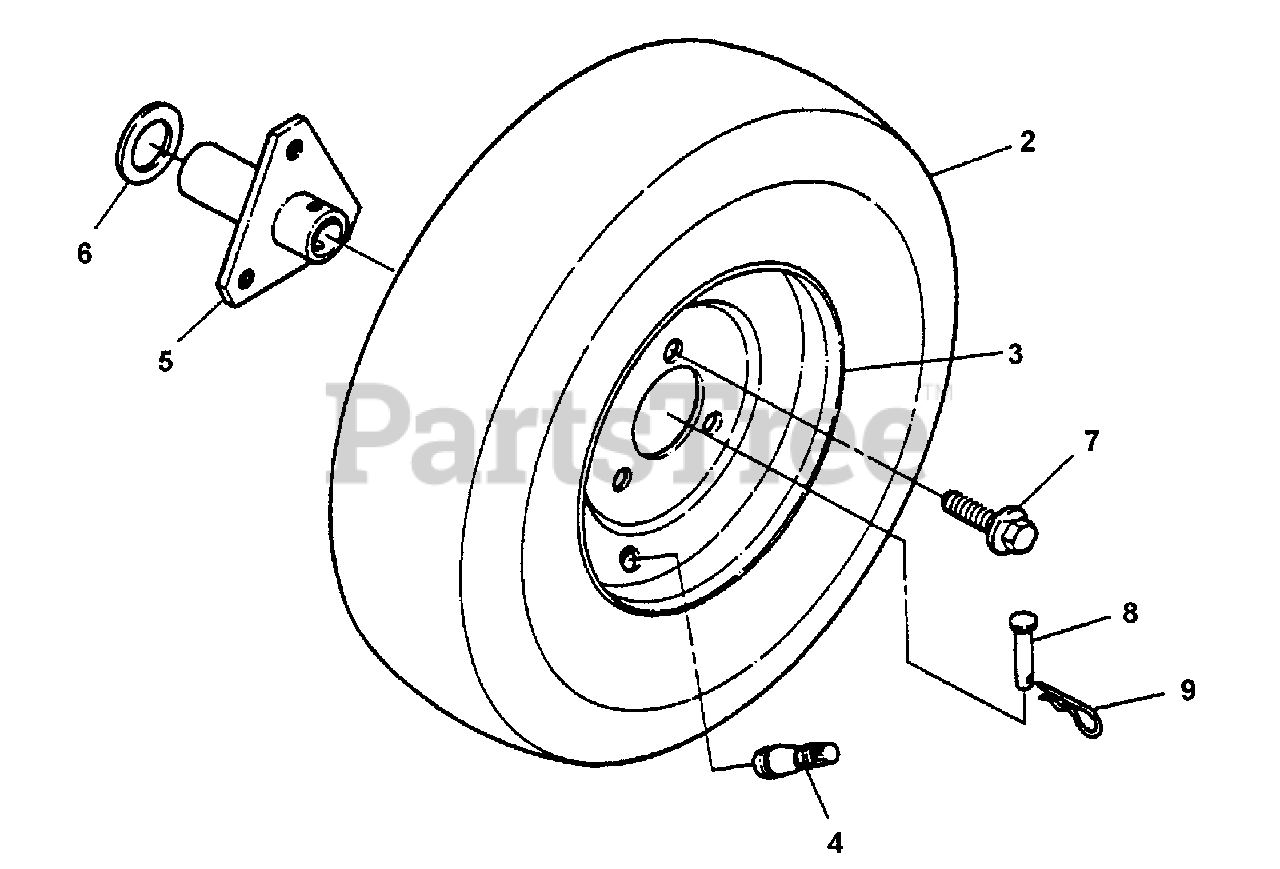

Wheels, Hub Parts Diagram

  • Title

Snapper 7051803

ASSEMBLY, Wheel & Tire (Snow Hog)

Note: (8245, 8265, & 9265 Models); (Includes Items 2A, 3A, & 4)

$

$

Not available

Snapper 7051871

ASSEMBLY, Wheel & Tire (Snow Hog)
(Superseded to 7051871YP)

Note: (10305E Models); (Includes Items 2B, 3B, & 4)

$

$

Not available

Snapper 7058916

* ASSEMBLY, Wheel & Tire (Kenda)

Note: (8245, 9265 & E9265 Models); (Includes Items 2C, 3A & 4)

$

$

Not available

Snapper 7058918

* ASSEMBLY, Wheel & Tire (Kenda)
(Superseded to 7051871YP)

Note: (11305 & E11305 Models); (Includes Items 2D, 3B & 4)

$

$

Not available

2

Snapper 7023495

TIRE, 16 x 4.80 x 8 (Snow Hog)(A)

Note: (8245, 8265 & 9265 Models)

$

$

Not available

2

Snapper 7023672

TIRE, 16 x 6.50 x 8 (Snow Hog)(B)

Note: (10305E Models)

$

$

Currently unavailable

2

Snapper 7073453

* TIRE, 16 x 4.80 x 8 (Kenda)(C)

Note: (8245, 9265 & E9265 Models)

$

$

Currently unavailable

2

Snapper 7073455

* TIRE, 16 x 6.50 x 8 (Kenda)(D)

Note: (11305 & E11305 Models)

$

$

Currently unavailable

3

Snapper 7017145

RIM(A)
(Superseded to 7017145YP)

Note: Was 12162 (8245, 8265 & 9265 Models)

$134.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM(B)
(Superseded to 7012163YP)

Note: (10305E, 11305 8, E11305 Models)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Snap-In
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7040464

HUB, Wheel

$

$

Not available

6

Snapper 7010935

WASHER, 3/4 x 1-1/8" Thrust
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Head Lug (Nyloc) Grade 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7029841

PIN, 5/16 x1-11/16" Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0
