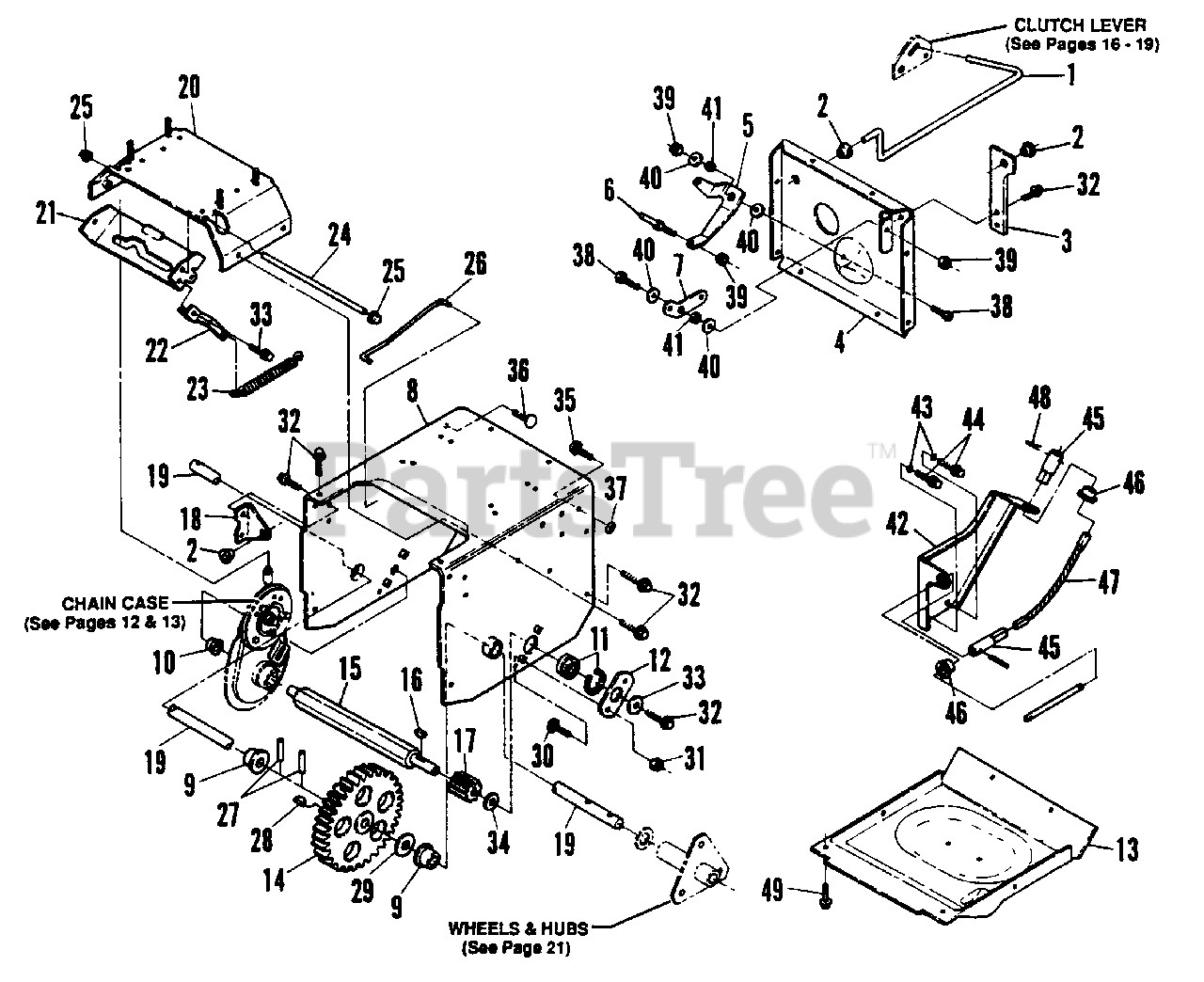

8243E (80006) - Snapper 24" Snow Thrower, 8hp Frame, Traction Drive Parts Diagram

24" Snow Thrower, 8hp

Frame, Traction Drive Parts Diagram

  • Title

1

Snapper 7019684

ROD, Activating
(Superseded to 7019684YP)

$30.99

$

In Stock, only 1 left!

0

2

Snapper 7012117

BRACKET
(Superseded to 7012117SM)

Note: (Series 1 & 2)

$4.49

$

In Stock, Qty 11

0

3

Snapper 7032125

BRACKET, Support

Note: (Series 1 & 2)

$

$

Not available

4

Snapper 7039768

COVER, Frame Back
(Superseded to 7039768YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7037967

LEVER, Shift

$

$

Not available

6

Snapper 7013872

STUD, Shift Lever
(Superseded to 7013872YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7032124

BELLCRANK, Traction

$

$

Not available

8

Snapper 7039970

FRAME
(Superseded to 7039970YP)

Note: (Order Items 9 & 10 When Replacing) (Series 1 & 2)

$82.99

$

Usually ships in 2-12 days

0

Snapper 7032935

FRAME
(Superseded to 7034306YP)

Note: (Order Items 9 & 10 When Replacing) (Series 3 & 4)

$182.99

$

Usually ships in 2-12 days

0

9

Snapper 7015363

BUSHING, Axle Shaft
(Superseded to 7015363SM)

$

$

Not available

10

Snapper 7013874

BUSHING, Hex Shaft

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

12

Snapper 7032121

RETAINER, Bearing

$

$

Not available

13

Snapper 7039769

COVER, Frame Bottom

$

$

Not available

14

Snapper 7018460

GEAR, Axle Shaft

$

$

Not available

15

Snapper 7027610

SHAFT, Hex
(Superseded to 7027610YP)

$94.99

$

Usually ships in 2-12 days

0

16

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7013884

PINION, Hex Shaft
(Superseded to 7013884YP)

$78.99

$

In Stock, only 1 left!

0

18

Snapper 7032120

BRACKET, Idler Mounting

$

$

Not available

19

Snapper 7029549

SHAFT, Axle
(Superseded to 7029549YP)

$152.99

$

Usually ships in 2-12 days

0

20

Snapper 7057367

BRACE, Frame 3.375 x 7.688

Note: (5 HP Briggs Engines)

$

$

Not available

Snapper 7057275

BRACE, Frame 3.125 x 6.375

Note: (8 HP Briggs Engines)

$

$

Not available

Snapper 7057277

BRACE, Frame 3.125 x 6.375

Note: (5 HP Tecumseh Engines)

$

$

Currently unavailable

Snapper 7057276

BRACE, Frame 3.125 x 6.375
(Superseded to 7057276YP)

Note: (10 HP Tecumseh Engines)

$110.99

$

Usually ships in 2-12 days

0

21

Snapper 7037965

BRACKET, Clutch

$

$

Not available

22

Snapper 7032130

BRACKET, Spring

$

$

Not available

23

Snapper 7012264

SPRING
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

24

Snapper 7021843

SHAFT, Cross
(Superseded to 7021843YP)

$19.99

$

Usually ships in 2-12 days

0

25

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

26

Snapper 7013875

ROD, Push
(Superseded to 7013875YP)

$6.49

$

Usually ships in 2-12 days

0

27

Snapper 7013878

PIN, 3/16" x 1-1/4" Roll

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

29

Snapper 7010935

WASHER, 3/4 Thrust
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091604

BOLT, 1/4-20 x 1/2"
(Superseded to 703978)

Note: Was 90005 (Series 1 & 2)

$3.99

$

In Stock, Qty 20+

0

Snapper 7091064

BOLT, 1/4-20 x 1/2" Carr.
(Superseded to 7091064YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, only 3 left!

0

31

Snapper 7091584

NUT, 1/4-20 Hex Flg. Lock
(Superseded to 703233)

Note: Was 90583 (Series 1 & 2)

$4.49

$

In Stock, Qty 5

0

Snapper 7091584

NUT, 1/4-2D Hex Flg. Lock
(Superseded to 703233)

Note: Was 91065 (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 5

0

32

Snapper 7090858

SCREW, 5/16-18 x 1/2" ST
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: (Series 1 & 2)

$4.49

$

In Stock, only 1 left!

0

Snapper 7091076

WASHER, 3/8" Flat
(Superseded to 703350)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7010690

WASHER, 5/8" Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carr.
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 12

0

36

Snapper 7090790

BOLT, 5/16-18 x 1-3/8" Carr.

$

$

Not available

37

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 8

0

39

Snapper 7091575

NUT, 5/16-18 Ctr Lock
(Superseded to 703164)

Note: Was 90184 (Series 1 & 2)

$3.49

$

In Stock, Qty 17

0

Snapper 7091575

NUT, 5/16-18 Ctr Lock
(Superseded to 703164)

Note: Was 91067 (Used on Series 3 & 4 Models; black zinc coated.)

$3.49

$

In Stock, Qty 17

0

40

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848 (Series 1 & 2)

$5.49

$

Usually ships in 2-12 days

0

Snapper 7016314

WASHER, 5/16 x 1-1/4" Flat
(Superseded to 7016314YP)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

Usually ships in 2-12 days

0

41

Snapper 7013849

SPACER, 5/16 x 5/8"
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7033459

BRACKET, Flex Shaft

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Currently unavailable

43

Snapper 7090187

WASHER, 5/16" Split
(Superseded to 703116)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7090361

SCREW, 5/16-18 x 5/8" HWST
(Superseded to 703949)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, only 3 left!

0

Snapper 7091547

SCREW, 3/8-16 x 3/4" HWST
(Superseded to 703448)

Note: Was 90850 (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7022095

CONNECTOR, Plastic

Note: Was 16287 (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Not available

Snapper 7022095

CONNECTOR, Metal

Note: (Series 2)

$

$

Not available

46

Snapper 7014386

BUSHING

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Not available

47

Snapper 7052024

SHAFT, Flex

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$

$

Not available

Snapper 7051944

SHAFT, Flex

Note: (Used on Series 3 & 4 Models; black zinc coated.) (Series 2)

$

$

Currently unavailable

Snapper 7061389

KIT, Chute Crank Replacement

Note: (Required to Convert Flex Shaft to the New Design Chute Crank.)

$

$

Not available

48

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365 (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, only 4 left!

0

49

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

?50

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

?51

Snapper 7014001

ROLL-PIN
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0
