8243 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) HOUSING AND SHROUD GROUP MODEL: 8243 Parts Diagram

Walk-Behind Mower

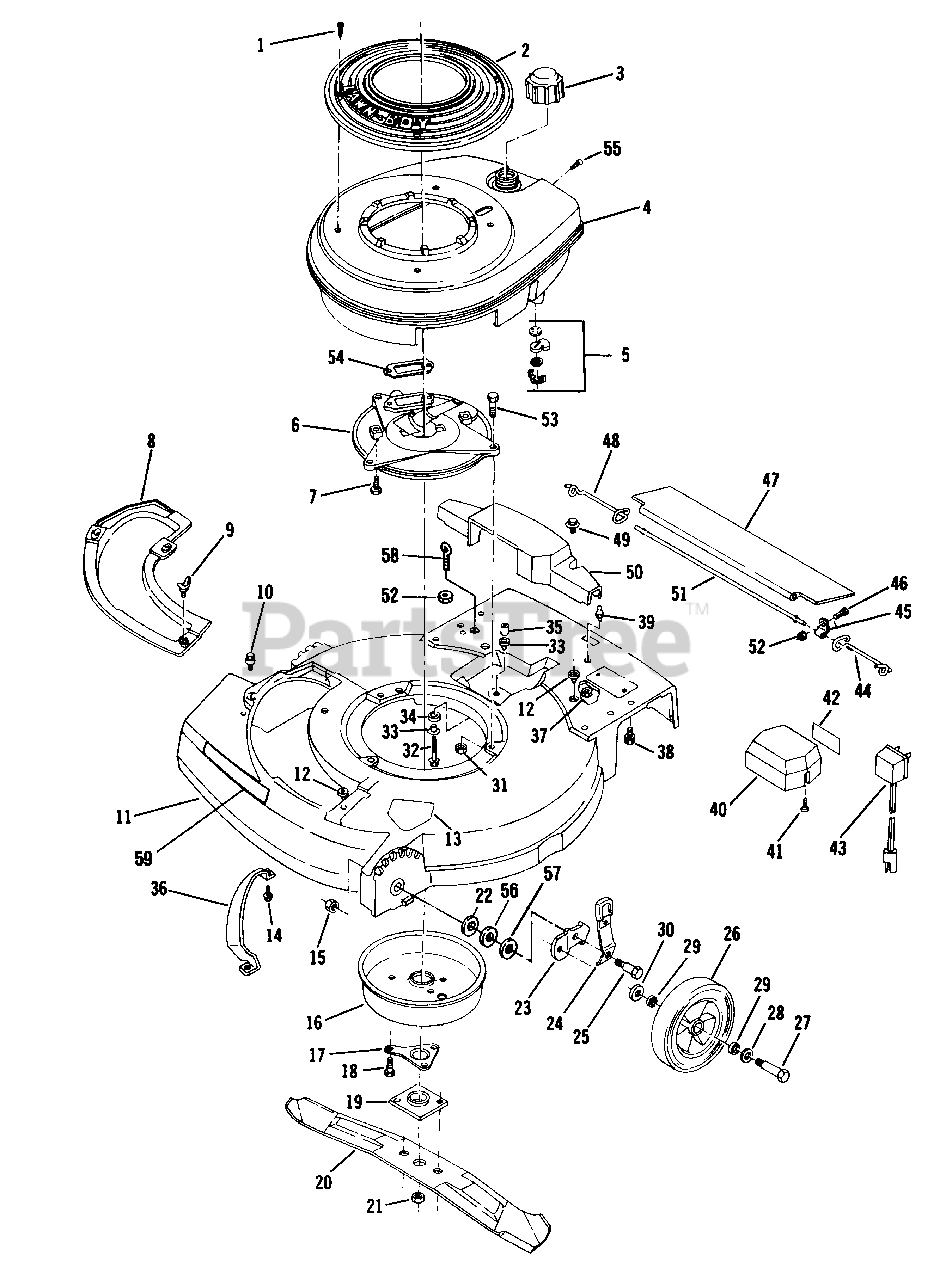

HOUSING AND SHROUD GROUP MODEL: 8243 Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611382

Cover-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors. Includes 607213 Gasket and 609150 Baffle (Parts Not Shown).

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 682802

Shroud-Engine
(Superseded to 16-5539)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609119

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 607601

Screw-Muff. Plt. to Blk.

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

10

Lawn-Boy 607809

Screw Plt. and Chute Mtg.
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

11

Lawn-Boy 682787

Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

14

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 609471

Screw-Muff. to Muff. Plt.

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

19

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 683682

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, Qty 18

0

21

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 11

0

22

Lawn-Boy 608834

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 608833

Bracket-Whl. Hgt. Adj.
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 603441

Bolt-Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 605256

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 608311

Nut-Muff. Plt. to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

32

Lawn-Boy 611595

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 607605

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 307417

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 609588

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 311505

Nut-Ball Stud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 609034

Ball Stud-Batt. Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 682869

Batt. Box and Batt. Pack Ass'y.
(Superseded to 94-1614)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609022

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 608649

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 681369

Battery Charger Assembly
(Superseded to 131-0848)

Note: Important Note: Replacement parts may not always be available in matching colors.

$78.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611262

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

In Stock, Qty 5

0

48

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 606452

Screw-Axle Cover Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611297

Cover-Drive Axle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 602315

Nut-Trailing Shield and Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 611774

Screw-Muff. Plt. to Hsg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

54

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

55

Lawn-Boy 608997

Screw-Shroud to C.D. Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 146014

Washer-Shim-Wheel Height Adj. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors. Use as required to adjust wheel wobble.

$

$

Not available

57

Lawn-Boy 146015

Washer-Shim-Wheel Height Adj. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors. Use as required to adjust wheel wobble.

$3.49

$

In Stock, only 1 left!

0

58

Lawn-Boy 611243

Eyebolt-Starter Rope

Note: Important Note: Replacement parts may not always be available in matching colors.

$20.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 612765

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
