8241 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) DRIVE GROUP MODELS: 8241 Parts Diagram

Walk-Behind Mower

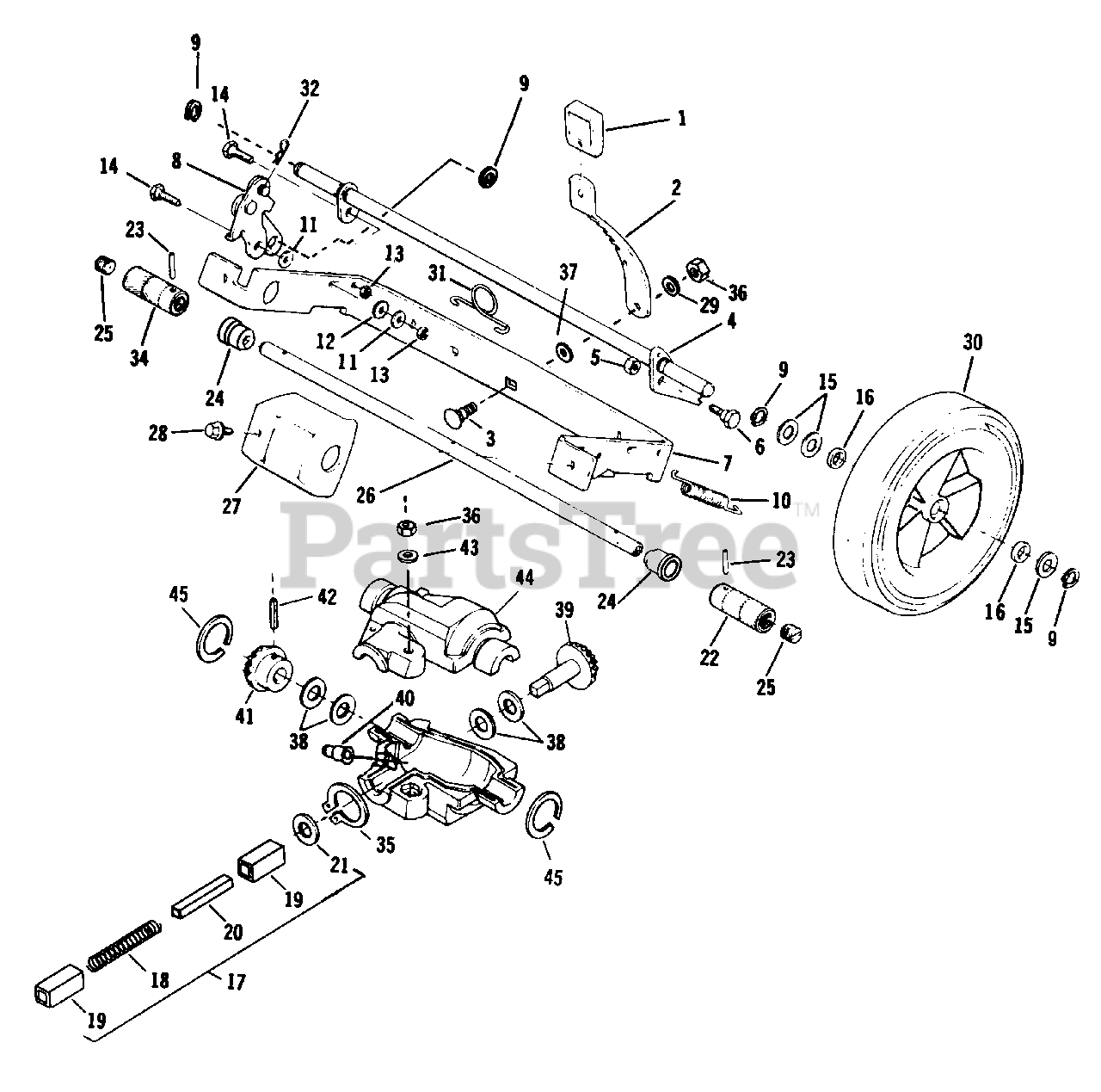

DRIVE GROUP MODELS: 8241 Parts Diagram

  • Title

1

Lawn-Boy 607562

Knob-Rear Height Adj. Lvr.

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

Lever-Rear Height Adj.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611752

Shoulder Bolt-Ht. Adj. Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682180

Axle Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611753

Bracket-21" Axle

Note: Important Note: Replacement parts may not always be available in matching colors.

$252.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

Clutch Assembly
(Superseded to 683775)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 610437

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 603093

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603123

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602201

Stopnut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602984

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605256

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 683129

Driveshaft Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611756

Spring-Compression

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611757

Bushing-Driveshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 611758

Driveshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611266

Drive Roller-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Standard Replacement-Ground Speed-2.7 m.p.h.

$96.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 610475

Drive Roller-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Slower Ground Speed-2.4 m.p.h.

$120.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611612

Drive Roller-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

23

Lawn-Boy 611303

Pin-Spiral

Note: Important Note: Replacement parts may not always be available in matching colors. Standard Replacement-Ground Speed-2.7 m.p.h.

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 611303

Pin-Spiral

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Slower Ground Speed-2.4 m.p.h.

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610686

Pin-Groove

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

24

Lawn-Boy 681904

Sleeve and Bearing Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602926

Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

In Stock, Qty 6

0

26

Lawn-Boy 679952

Shaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 607767

Guard-Roller

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 607783

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 603093

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 682972

Wheel-Rear

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 605802

Spring-Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 7

0

32

Lawn-Boy 603019

Lock Pin
(Superseded to 1-806003)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

34

Lawn-Boy 611265

Drive Roller-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Standard Replacement-Ground Speed-2.7 m.p.h.

$96.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 6104?6

Drive Roller-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Slower Ground Speed-2.4 m.p.h.

$

$

Currently unavailable

34

Lawn-Boy 611611

Drive Roller-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors. Provides Faster Ground Speed-3.1 m.p.h.

$

$

Not available

35

Lawn-Boy 908973

Ring-Retaining
(Superseded to 32151-33)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

36

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 606116

Washer-Ht. Adj. Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 610687

Gear-Drive

Note: Important Note: Replacement parts may not always be available in matching colors.

$268.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 610153

Zerk Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 610688

Gear Driven

Note: Important Note: Replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 311866

Spring Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

43

Lawn-Boy 610566

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 682662

Gear Box Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611171

Ring-Retaining
(Superseded to 32151-91)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

46

Lawn-Boy 611169

Gear Case-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611170

Gear Case-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
