824 RS (1695978) - Murray 24" Snow Thrower, 8hp (2011) Wheel & Tire Group Parts Diagram

24" Snow Thrower, 8hp

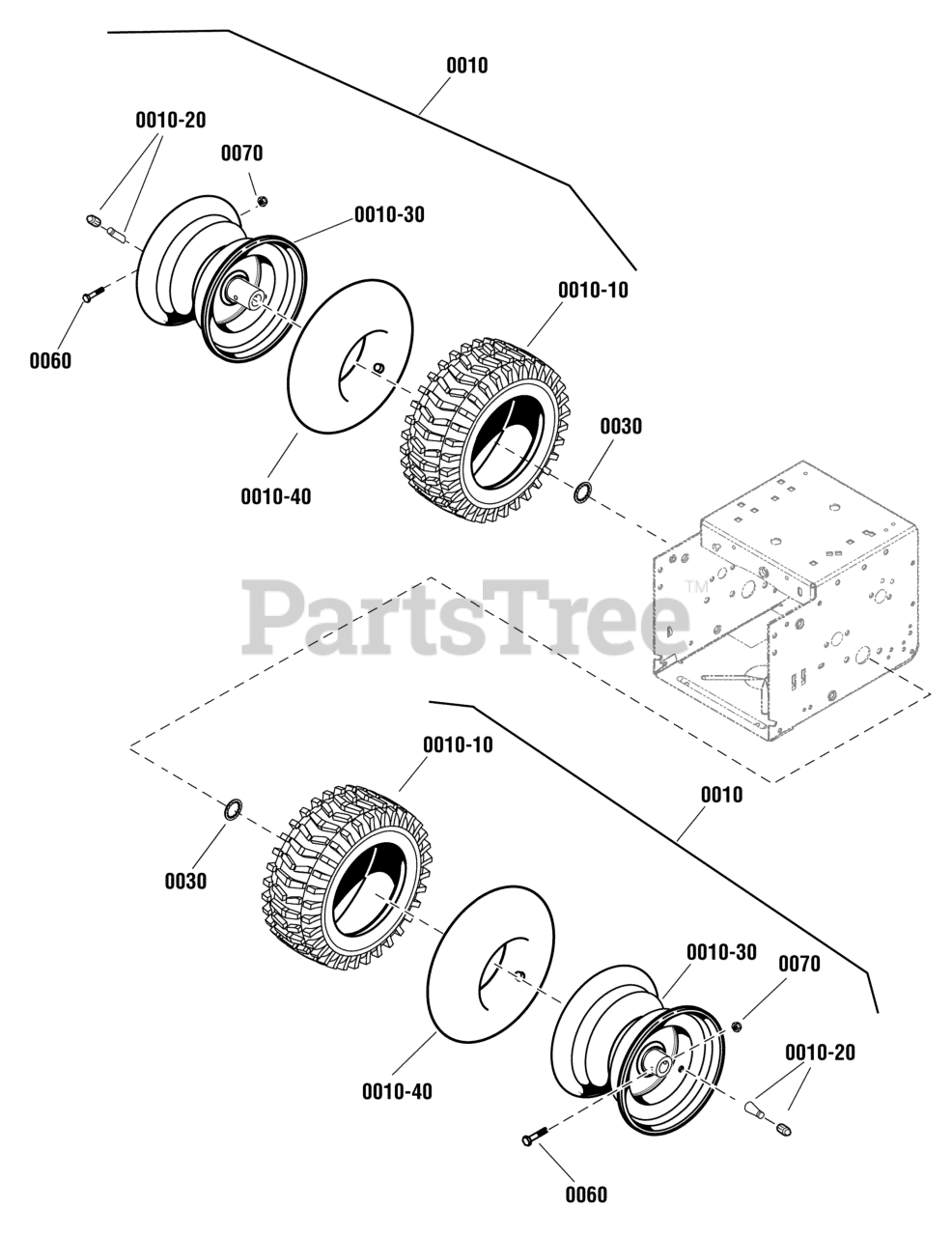

Wheel & Tire Group Parts Diagram

  • Title
0010

Murray 1752391YP

WHEEL & TIRE ASSEMBLY
(Superseded to 1754488YP)

Note: (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$

$

Not available

0010-10

Murray 1752426YP

TIRE, 4.10-4

$48.99

$

In Stock, only 2 left!

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

* WHEEL, Rim

$

$

Not available

0010-40

Murray 2164247SM

TUBE, Tire

$40.99

$

Usually ships in 2-12 days

0

0030

Murray 1657528SM

RETAINING RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0060

Murray 577015MA

CAPSCREW, Hex, 1/4-20 x 1-3/4, G5

$4.99

$

In Stock, Qty 5

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
