824 RS (1695978) - Murray 24" Snow Thrower, 8hp (2011) Auger Drive Group Parts Diagram

24" Snow Thrower, 8hp

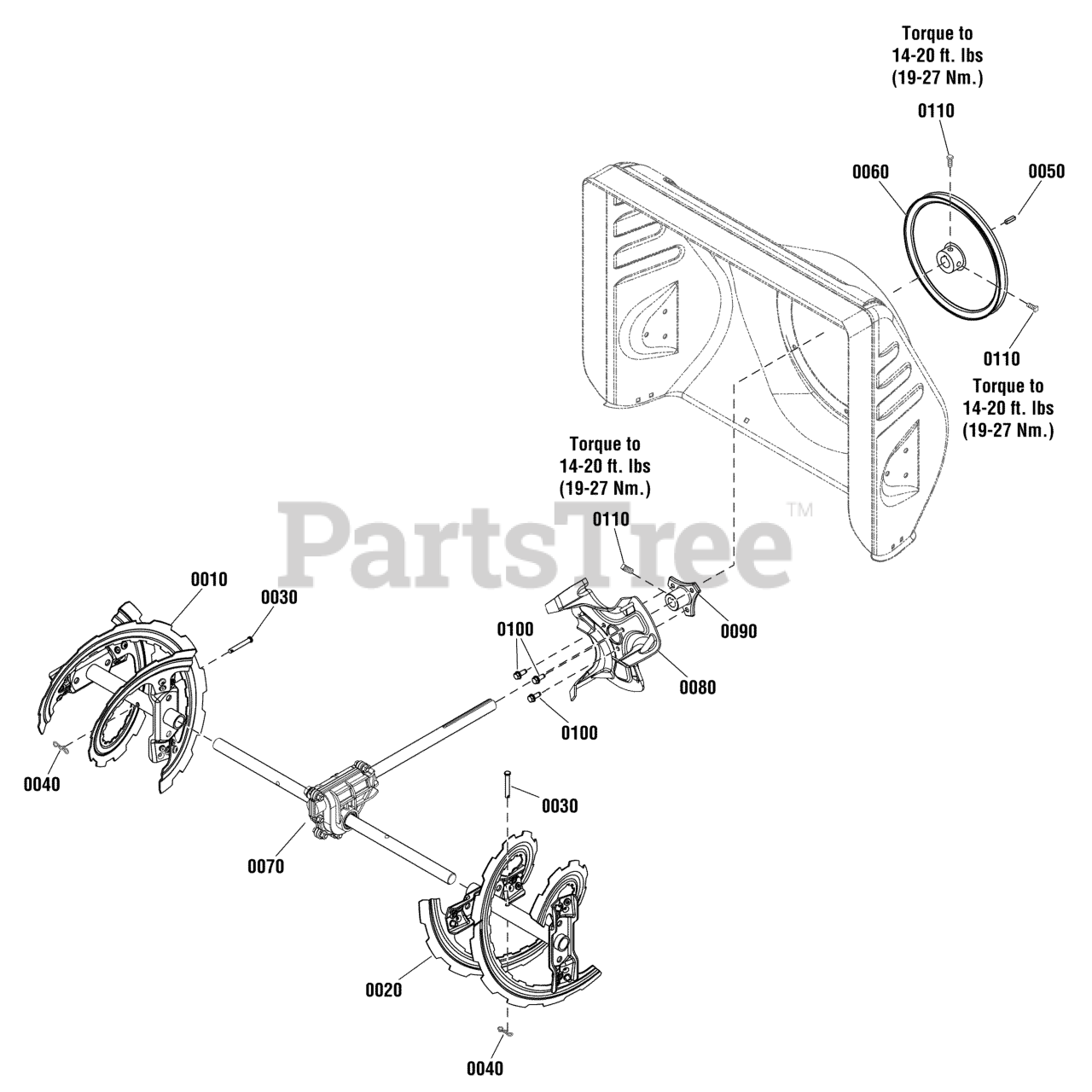

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1752081AYP

AUGER ASSEMBLY, RH
(Superseded to 1752081BMYP)

$158.99

$

In Stock, only 1 left!

0

0020

Murray 1752067AYP

AUGER ASSEMBLY, LH
(Superseded to 1752067BMYP)

$

$

Not available

0030

Murray 1739295YP

PIN, Shear, 1/4 x 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 1739292YP

PIN, Cotter, Bow Tie, 3/16
(Superseded to 703060)

$4.49

$

In Stock, Qty 12

0

0050

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 12

0

0060

Murray 1752220YP

PULLEY, Auger

$87.99

$

In Stock, Qty 5

0

0070

Murray 1753221YP

GEAR CASE ASSEMBLY, 24"

$463.99

$

Usually ships in 2-12 days

0

0080

Murray 1751348AYP

IMPELLER
(Superseded to 1751348BMYP)

$46.99

$

In Stock, only 4 left!

0

0090

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0100

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0110

Murray 1930540SM

SETSCREW, Square Head, 5/16-18 x 5/8, G8

$4.49

$

In Stock, Qty 11

0
