824 ES (1696267-00) - Murray 24" Snow Thrower, 8hp (2012) Wheels & Tires Group Parts Diagram

24" Snow Thrower, 8hp

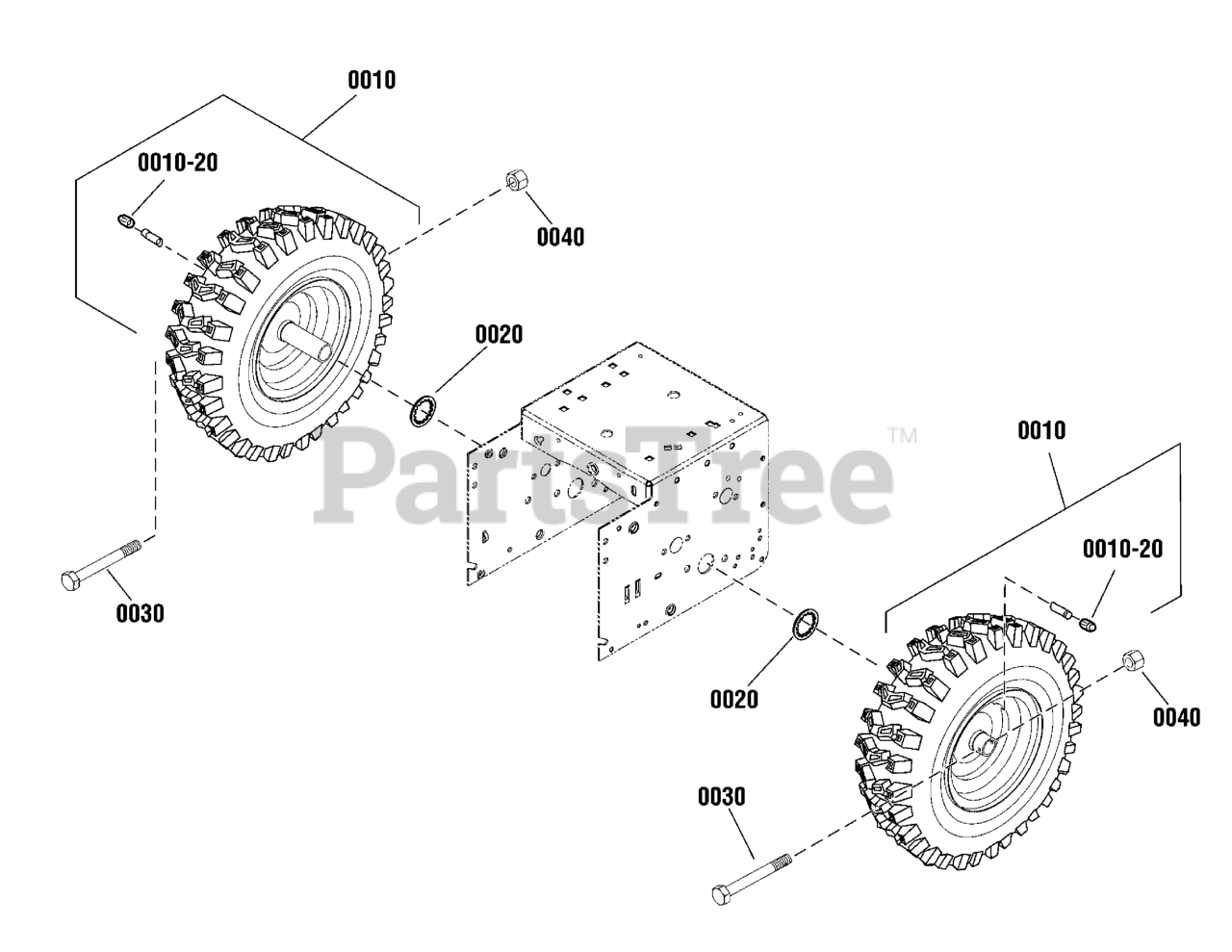

Wheels & Tires Group Parts Diagram

  • Title
0010

Murray 1754488YP

WHEEL & TIRE ASSEMBLY, 4.10-4, P2-407

Note: (Includes Ref 0010-20)

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020

Murray 1657528SM

RING, Retaining, Self Lock, 3/4

$4.49

$

In Stock, Qty 20+

0

0030

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$4.99

$

In Stock, Qty 5

0

0040

Murray 15X145MA

NUT, Hex, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
