824 ES (1696267-00) - Murray 24" Snow Thrower, 8hp (2012) Handles & Controls Group Parts Diagram

24" Snow Thrower, 8hp

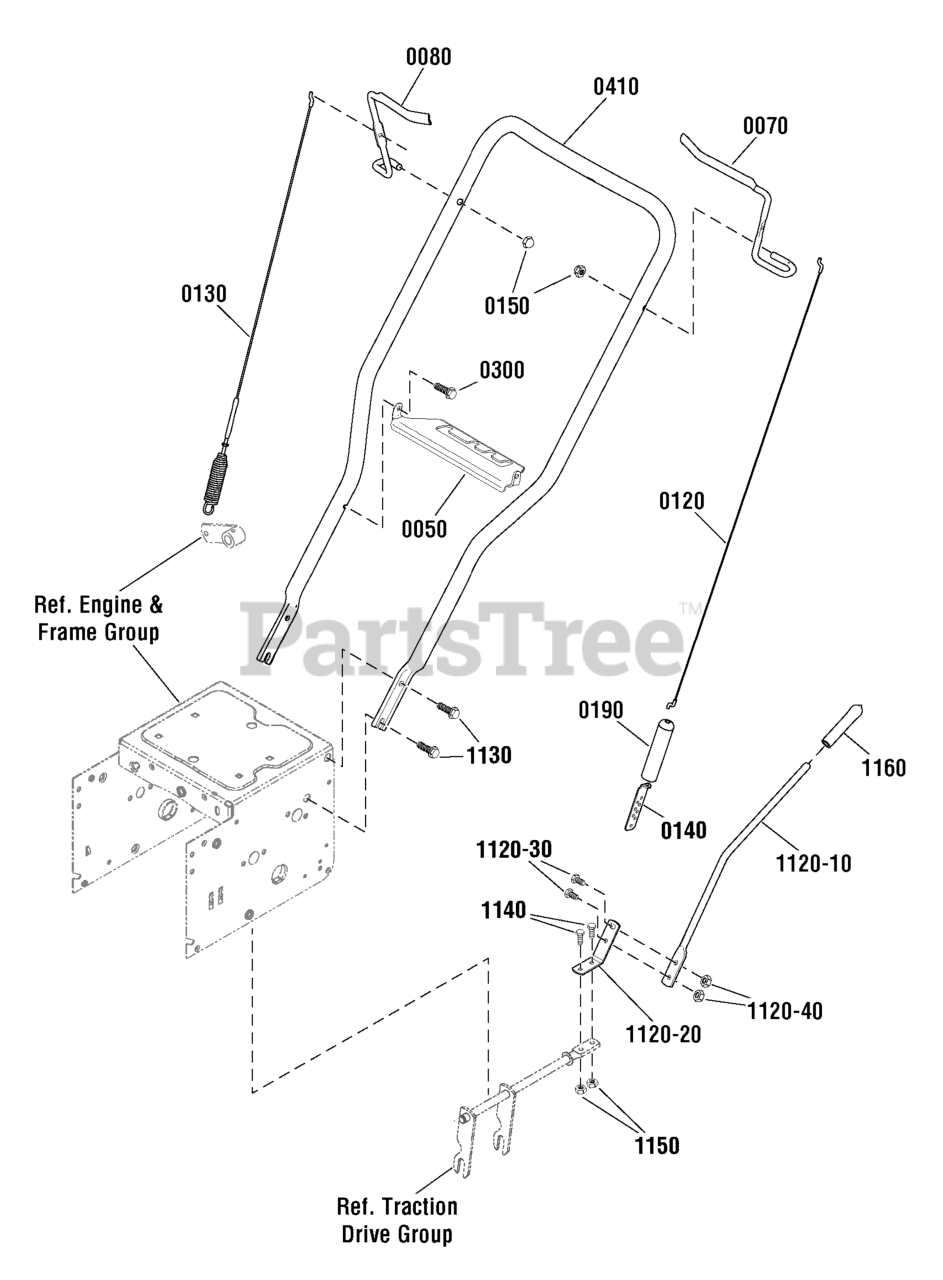

Handles & Controls Group Parts Diagram

  • Title

0050

Murray 1752386AYP

GEAR SELECT BRACKET

$19.99

$

Usually ships in 2-12 days

0

0070

Murray 1752027AYP

BAIL, LH Drive

$56.99

$

Usually ships in 2-12 days

0

0080

Murray 1752028AYP

BAIL, RH Drive

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1501124MA

CABLE, Front Drive, 32"
(Superseded to 762259MA)

$12.99

$

In Stock, only 2 left!

0

0130

Murray 1732471SM

CABLE & SPRING ASSEMBLY, Auger Drive, RH

$

$

Not available

0140

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0150

Murray 1960093SM

NUT, Push Pal 5/16 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

0190

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0300

Murray 26X263MA

CAPSCREW, Hex, 1/4-20 x 19/32

$4.99

$

In Stock, only 1 left!

0

0410

Murray 1751584AYP

HANDLE

$55.99

$

Usually ships in 2-12 days

0

1120-10

Murray 1752853AYP

ROD, Shift
(Superseded to 1752853BMYP)

$29.99

$

In Stock, only 1 left!

0

1120-20

Murray 760564MA

LEVER, Spring Shift

$9.99

$

Usually ships in 2-12 days

0

1120-30

Murray 302628MA

BOLT, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 7

0

1120-40

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

1130

Murray 1752940YP

BOLT, Hex Flange, 5/16-18 x 1
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

1140

Murray 302628MA

BOLT, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 7

0

1150

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

1160

Murray 331624MA

GRIP

$5.99

$

In Stock, only 1 left!

0
