824 ES (1696122) - Murray 24" Snow Thrower, 8hp (2011) Engine Group Parts Diagram

24" Snow Thrower, 8hp

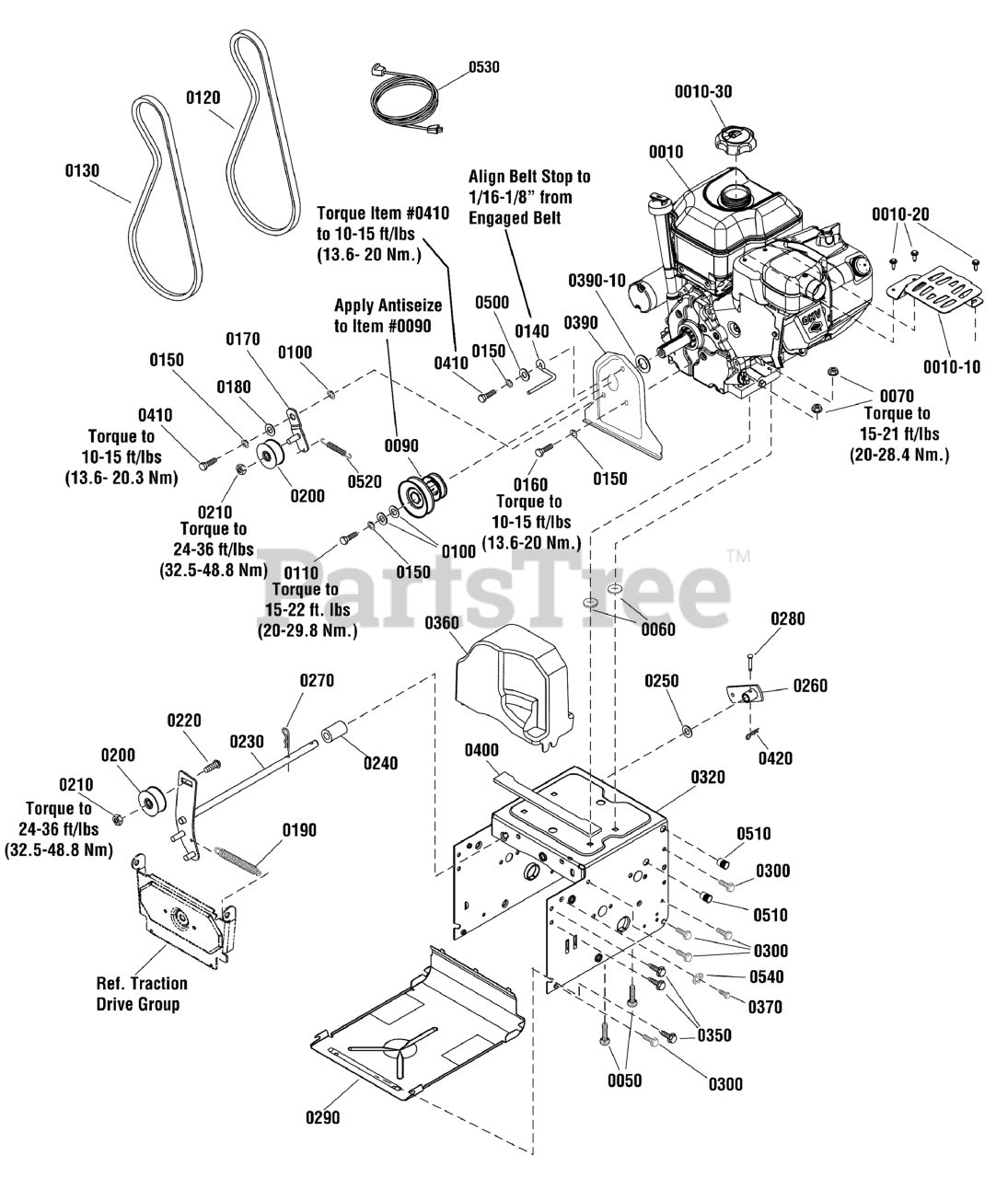

Engine Group Parts Diagram

  • Title

0010

Murray 12A113-0154-E8

* ENGINE, 8TP Briggs & Stratton, Snow Series

Note: (Engine Model: 12A113-0154-E8)

$

$

Currently unavailable

0010-10

Murray 797003

GUARD, Muffler, Plate

$45.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699234

SCREW, Hex Head, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Murray 795027

CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0050

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

0060

Murray 028X76MA

PUSHNUT, 1/4

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 1751417YP

BELT, Auger

$28.99

$

Usually ships in 2-12 days

0

0140

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 5

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 165X159MA

SPRING, External, Auger 7/16 ID x 5-1/8 x 3/4 W

$6.99

$

In Stock, Qty 9

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0210

Murray 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501226YZMA

IDLER ASSEMBLY, Auger

$52.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, Auger Idler

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 0031X6MA

PIN, Hair, 3/8 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0320

Murray 1751698BNYP

FRAME BOX

$93.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1751525YP

COVER, Belt

$37.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0390

Murray 1733868BZYP

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Murray 1733898SM

SEAL, Foam

$6.49

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

STRIP, Seal

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Murray 7090555YP

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0500

Murray 7091528SM

WASHER, Flat, 3/8 x 7/8

$3.99

$

Usually ships in 2-12 days

0

0510

Murray 1752526YP

THREADED INSERT, Open End, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

0520

Murray 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, only 3 left!

0

0530

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0540

Murray 7091890SM

WASHER, Internal Tooth, 1/4

$4.49

$

Usually ships in 2-12 days

0
