824 (190-824-101) - Cub Cadet Sleeve Hitch with Electric att 824 Sleeve Hitch w/Electric Lift Parts Diagram

Sleeve Hitch with Electric

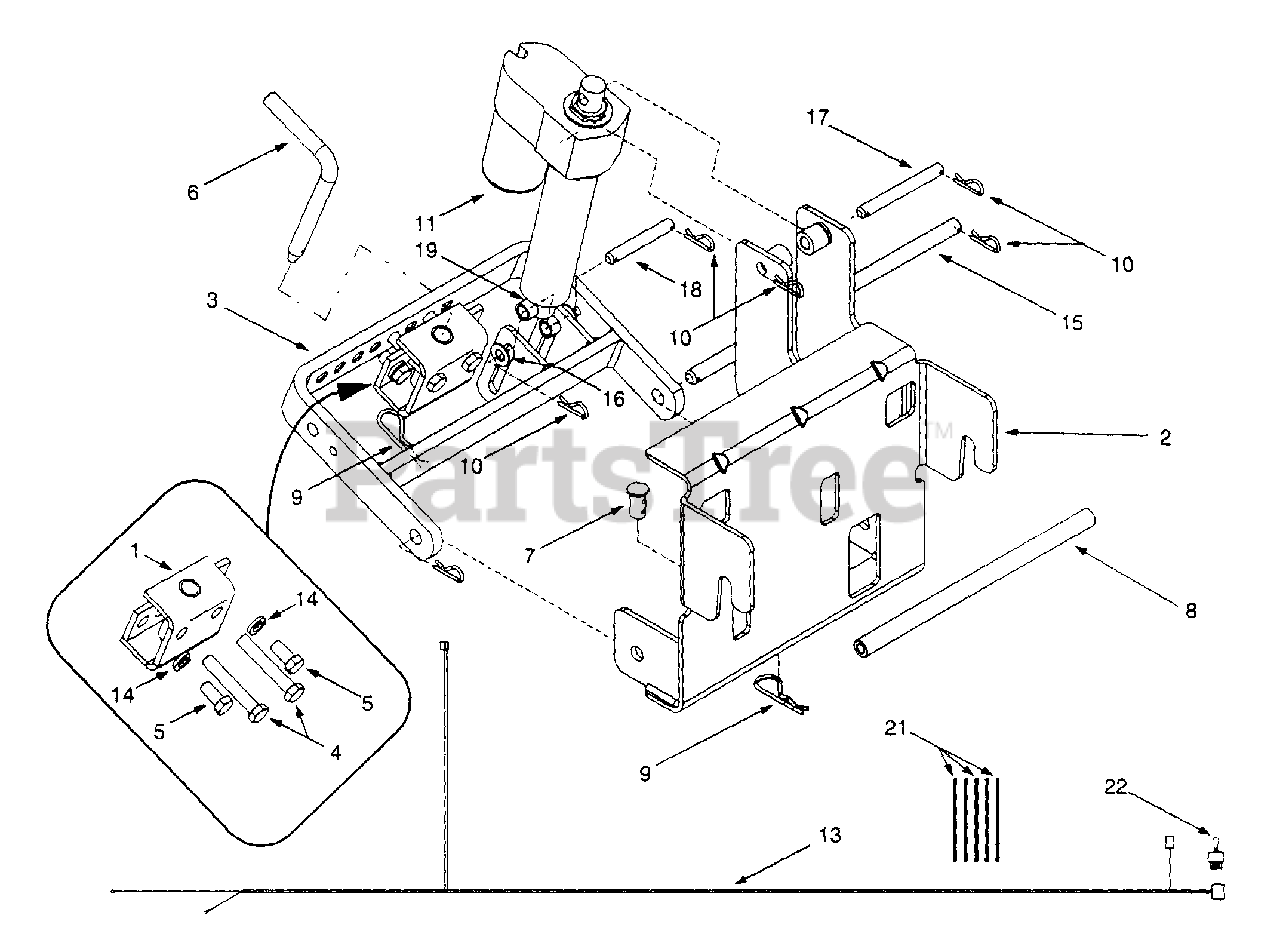

824 Sleeve Hitch w/Electric Lift Parts Diagram

  • Title
1

Cub Cadet 13269

Hitch Bracket Assembly
(Superseded to 13269-0637)

Variations

Cub Cadet 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 683-0272A

Sleeve Hitch Bracket Assembly
(Superseded to 683-0272A-0637)

Variations

Cub Cadet 683-0272A-0637

BRACKET ASM-FAST A - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 683-0273

Sleeve Hitch Assembly
(Superseded to 683-0273-0637)

Variations

Cub Cadet 683-0273-0637

HITCH SLEEVE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0182

Hex Cap Screw, 1/2-13 x 3 (Grade 5)
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-3131

Hex Cap Screw, 1/2-13 x 1 (Grade 5)

$5.49

$

In Stock, only 1 left!

0

6

Cub Cadet 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

8

Cub Cadet 711-1440

Support Rod, 3/4 x 13"

$

$

Not available

9

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

11

Cub Cadet 717-0620

Electromechanical Linear Actuator
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

?12

Cub Cadet 736-0272

Flat Washer, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 629-0919

Wire Harness
(Superseded to 929-0919)

$

$

Not available

14

Cub Cadet 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 738-0482

Hitch Rod

$

$

Not available

16

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .060

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-1170

Upper Cylinder Support Rod

$

$

Not available

18

Cub Cadet 747-1171

Lower Cylinder Support Rod

$

$

Not available

19

Cub Cadet 750-1206

Spacer, .542 x .750 x .5

$16.99

$

In Stock, only 1 left!

0

?20

Cub Cadet 783-0668

Hitch Plate

Variations

Cub Cadet 783-0668-0498

HITCH PLATE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0668-0637

PLATE-HITCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0668-0665

PLATE-HITCH (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0668-0691

PLATE-HITCH (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

21

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0
