8237 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1979) Handle And Rear Bagger Group-Model: R7268 Parts Diagram

Walk-Behind Mower

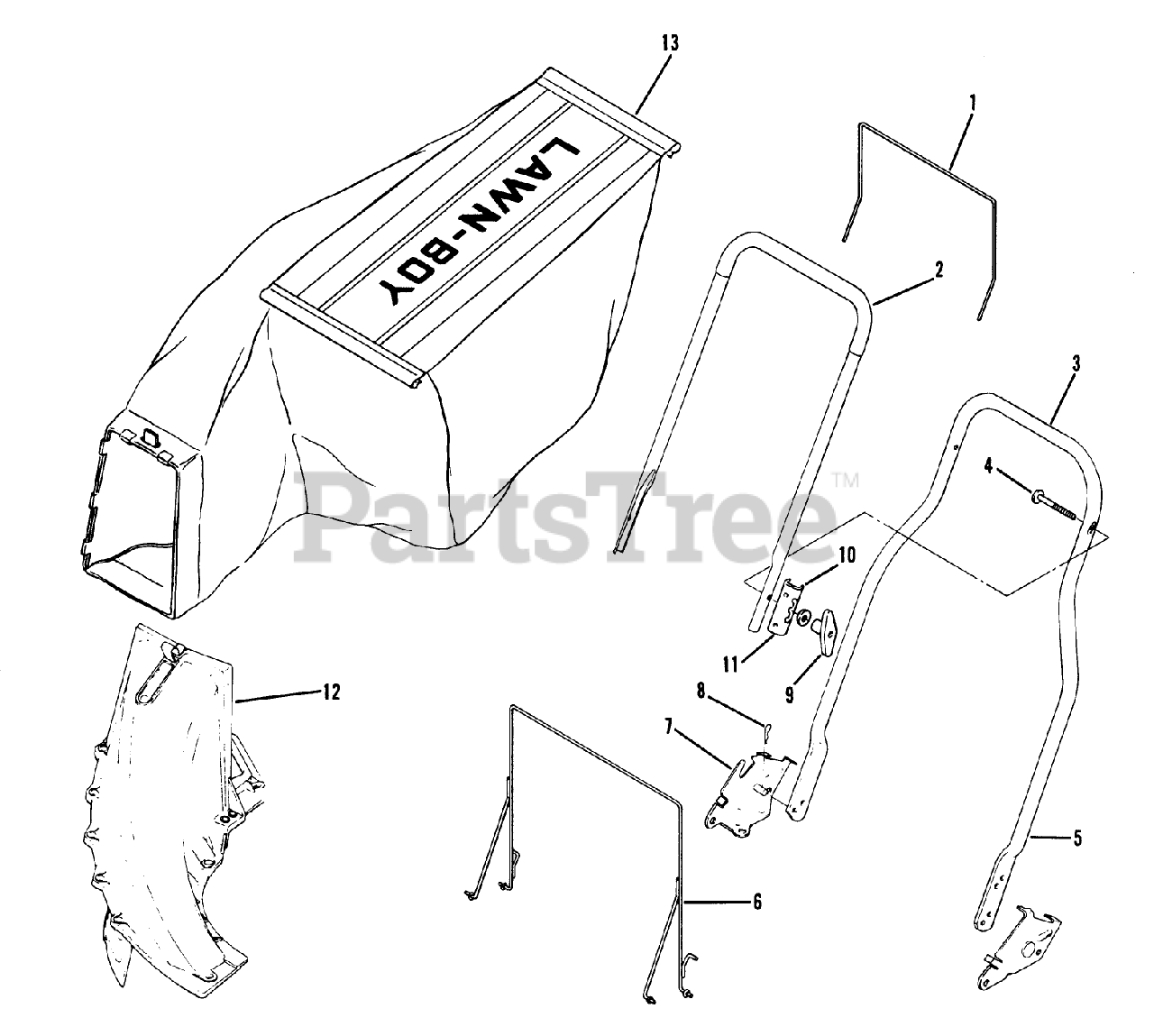

Handle And Rear Bagger Group-Model: R7268 Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 681834

DISCONTINUED
(Superseded to 608094)

$

$

Not available

3

Lawn-Boy 607545

DISCONTINUED
(Superseded to 612787)

$

$

Not available

4

Lawn-Boy 607543

See Supercession: 611184
(Superseded to 611184)

$8.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 681778

DISCONTINUED

$

$

Not available

6

Lawn-Boy 681805

DISCONTINUED

$

$

Not available

7

Lawn-Boy 681779

DISCONTINUED

$

$

Not available

8

Lawn-Boy 605803

HAIR PIN

$

$

Not available

9

Lawn-Boy 607544

NUT-WING

$25.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 8

0

11

Lawn-Boy 609692

BRACKET R/B 613462

$

$

Not available

12

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

$

$

Not available

13

Lawn-Boy 681726

See Supercession: 681915
(Superseded to 681915)

$

$

Not available
