8237 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) DRIVE GROUP MODELS 8237 Parts Diagram

Walk-Behind Mower

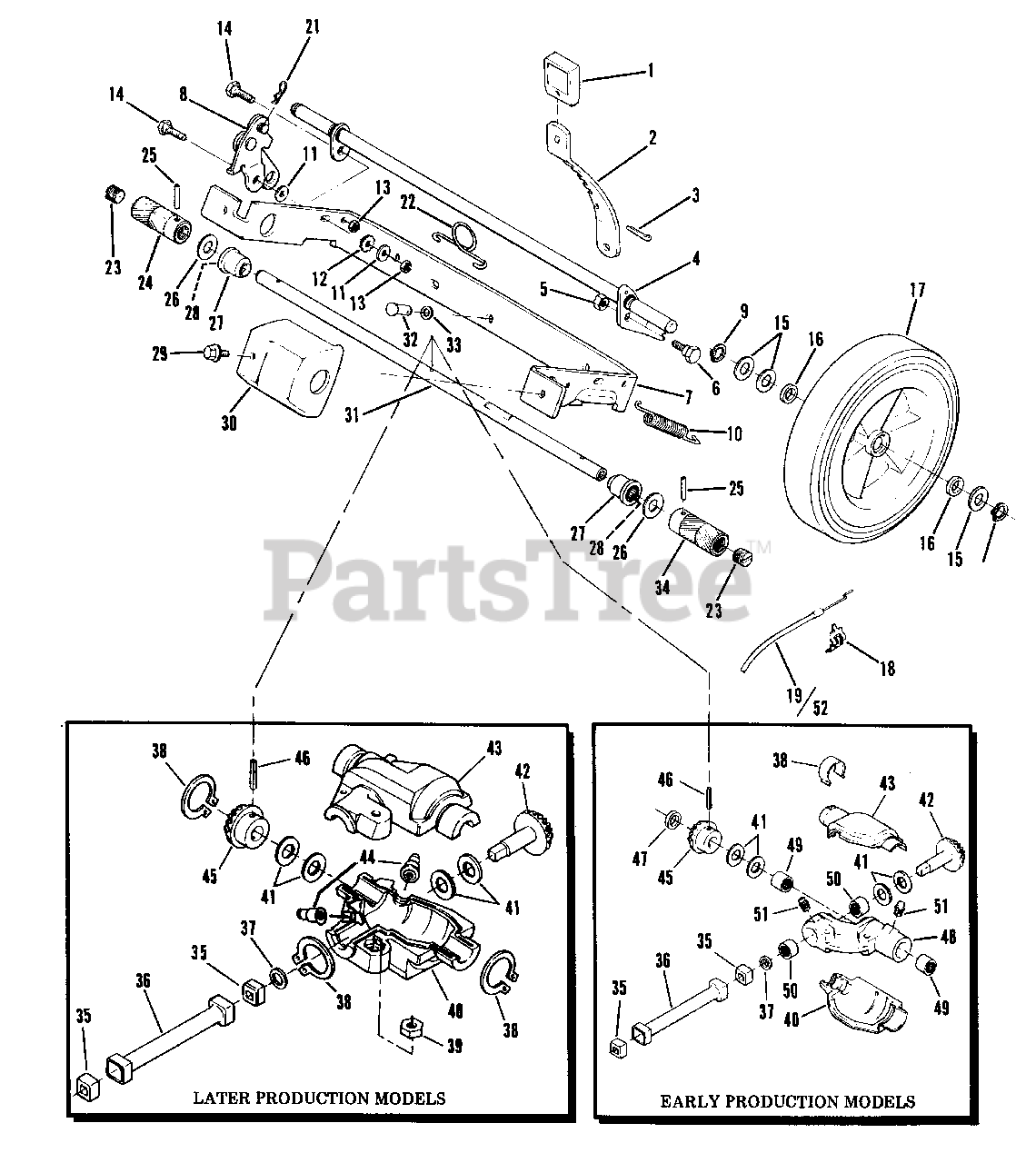

DRIVE GROUP MODELS 8237 Parts Diagram

  • Title

#38

Lawn-Boy 908973

Ring-Retaining
(Superseded to 32151-33)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 2 left!

0

#39

Lawn-Boy 602315

Locknut

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

#40

Lawn-Boy 610152

Gear Box-Lower
(Superseded to 682662)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

#43

Lawn-Boy 610151

Gear Box-Upper
(Superseded to 682662)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

#44

Lawn-Boy 610153

Zerk Fitting

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

1

Lawn-Boy 607562

Knob-Rear Height ht. Adjustment Lever

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

Lever-Rear Height Adjust

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 603036

Cotter Pin

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 681290

Axle Bracket Assembly

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 681534

Axle Assembly

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

Locknut

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

Bolt-Shoulder

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

Bracket-21" Axle

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$384.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

Clutch Assembly
(Superseded to 683775)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607676

Retaining Ring

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

10

Lawn-Boy 603003

Spring

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 603093

Washer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603123

Lockwasher

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602201

Stop Nut

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602984

Bolt-Shoulder

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605256

Washer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

Washer-Felt

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 678638

Wheel-Rear
(Superseded to 682972)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$29.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608936

Clip
(Superseded to 682603)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681667

Cable-Interlock-Manual

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 607676

Retaining Ring

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

21

Lawn-Boy 603019

Lock Pin
(Superseded to 1-806003)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 605802

Spring-Height Adjust

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 7

0

23

Lawn-Boy 602926

Plug

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$12.99

$

In Stock, Qty 6

0

24

Lawn-Boy 607658

Drive Roller-R.H.

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 606013

Pin-Roll

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 5

0

26

Lawn-Boy 603037

Washer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 678782

Sleeve & Bearing Assembly
(Superseded to 681904)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 679144

Needle Bearing

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 607783

Screw-Sems

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 607767

Guard-Roller

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 679952

Shaft

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 606115

Pin-Rear Height Adjust Lever

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 606116

Spring Washer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 607657

Drive Roller-L.H.

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 608563

Bushing

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 610625

Tube-Drive
(Superseded to 683129)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 610644

"O" Ring-Spacer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 608292

Clamp

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 608291

Cover-Gear Bottom

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 608030

Washer

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 607663

Gear-Drive
(Superseded to 98-8319)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 608289

Cover-Gear Top

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 607664

Gear Driven
(Superseded to 98-8319)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 311866

Pin-Roll

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

47

Lawn-Boy 605255

Washer-Felt

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 679699

Bracket & Bearing Assembly
(Superseded to 683971)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 16

0

50

Lawn-Boy 510505

Needle Bearing

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 603615

Zerk Fitting

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 681699

Cable-Interlock-Electric

Note: Note Space washers on either side of rear wheels so that center of tread on rollers lines up with center of tire. One washer is used next to bolt head on front wheels. Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable
