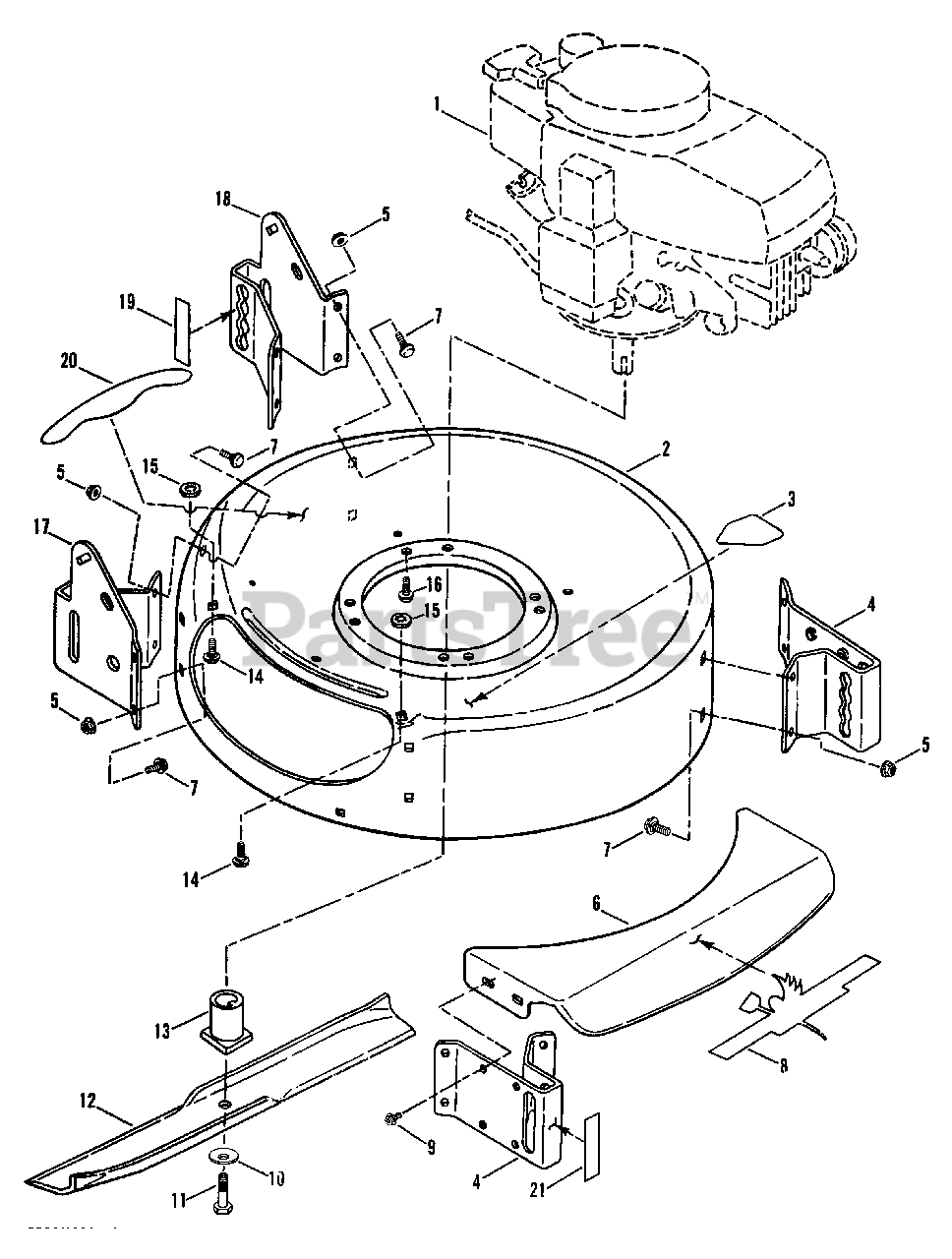

82355 - Snapper Lady Garden 19" Walk-Behind Mower Engine, Cutting Deck, Blade Parts Diagram

Lady Garden 19" Walk-Behind Mower

Engine, Cutting Deck, Blade Parts Diagram

  • Title

1

ENGINE, Tecumseh Model TVS 115, ULTRA 4.5

Note: *(110 Volt Electric Start Model 82355)

$

$

Not available

ENGINE, Tecumseh Model TVS 115, ULTRA 4.5

Note: *(Recoil Start Model 82354)

$

$

Not available

2

Snapper 7054453

DECK, 20" Cutting

Note: Was 35324 (Includes item 3)

$

$

Not available

3

Snapper 7013010

DECAL, DANGER (Keep Hands & Feet Away)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

4

Snapper 7035321

BRACKET, Front Wheels
(Superseded to 7035321YP)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7034363

PLATE, Deck Front
(Superseded to 7034363YP)

$21.99

$

Usually ships in 2-12 days

0

7

Snapper 7090731

BOLT, 5/16-18 x 1/2 Short Neck Carriage, Grade 5
(Superseded to 703798)

Note: Was 91788

$4.49

$

In Stock, Qty 7

0

8

Snapper 7035402

DECAL, Lady Garden
(Superseded to 7035402YP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

10

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

11

Snapper 7090483

SCREW, 3/8-24 x 1 3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7017167

BLADE, Mulching

$

$

Not available

13

Snapper 7015626

HUB, Blade
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

14

Snapper 7091508

BOLT, 5/16-18 x 3/4 Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

15

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Head, Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7035323

BRACKET, Rear Wheel (Right Side)
(Superseded to 7035323YP)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 7035322

BRACKET, Rear Wheel (Left Side)
(Superseded to 7035322YP)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7035401

DECAL, Height Adjustment

$

$

Currently unavailable

20

Snapper 7035397

DECAL, WARNING, Chute & Deflector

$

$

Not available
