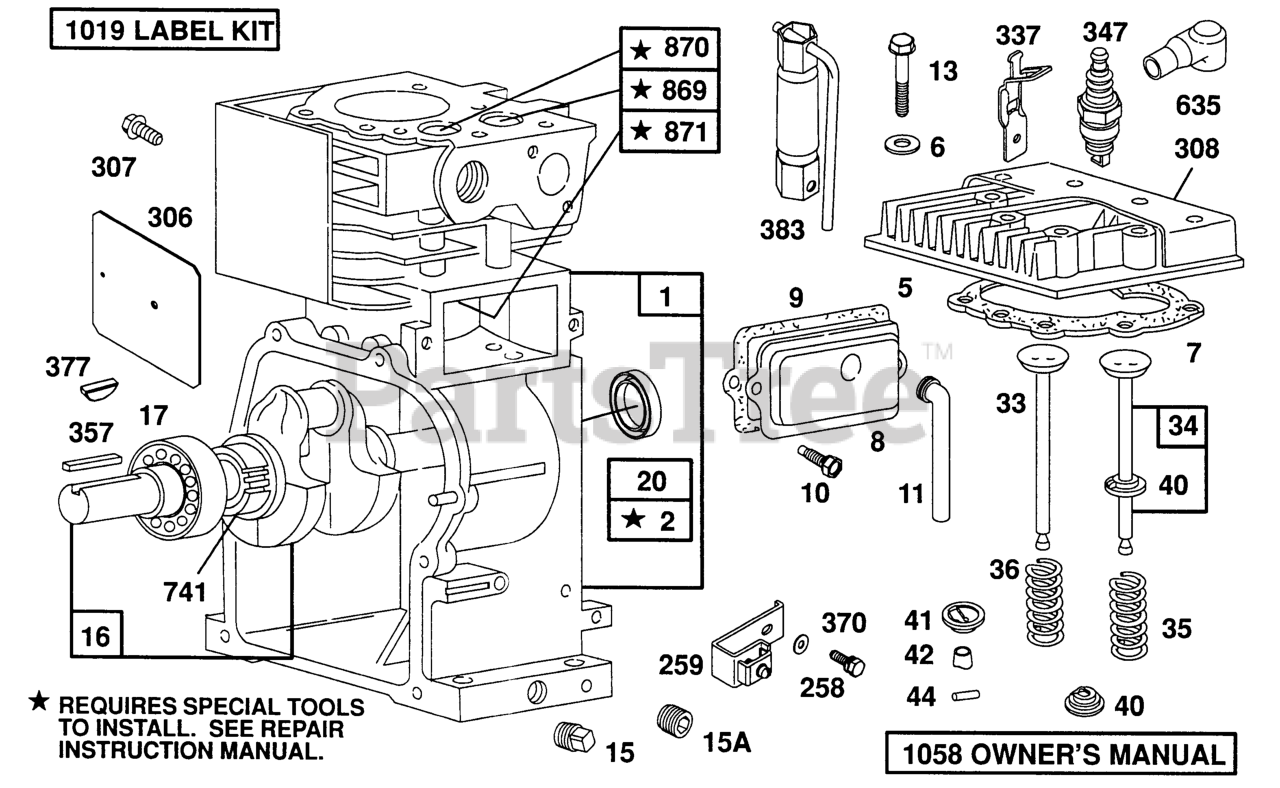

82332-0133-01 - Briggs & Stratton Horizontal Engine Cylinder,Cylinder Head Parts Diagram

Horizontal Engine

Cylinder,Cylinder Head Parts Diagram

  • Title

1

Briggs & Stratton 395567

Cylinder Assembly

$310.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing/Seal Kit (DU)
(Superseded to 796961)

Note: Requires Special Tools For Installation.

$21.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 272167

Gasket-Cyl Hd

Note: Included in Gasket Set-Part No. 495602

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 495602

$3.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 271489

Tube-Breather

Note: (Rubber Hang Down Tube See Ref. 8 Note)

$8.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 94547

Screw, Machine Hex (Cylinder Head)
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

15A

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 493633

Crankshaft

Note: Used Before Code Date 93071900

$148.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 495484

Bearing-Ball
(Superseded to 690824)

Note: Used After Code Date 93071800

$28.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

Note: Used Before Code Date 93071900

$20.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 495602

$5.49

$

In Stock, Qty 13

0

20

Briggs & Stratton 393812

Seal-Oil

Note: Used Before Code Date 93071800

$5.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 495355

Seal, Oil (For Use With Ball Bearing Covers)
(Superseded to 692020)

Note: Used After Code Date 93071900

$10.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 262580

Valve-Exhaust (Cobalite)
(Superseded to 296676)

Note: Used After Code Date 90051300 and Before Code Date 93112200

$23.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 262986

Valve-Exhaust
(Superseded to 497871)

Note: Used After Code Date 93112100

$35.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 296676

Valve-Exhaust (Grooved Stem-Includes Retainer No. 93312)

Note: Used Before Code Date 90051400

$23.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Grooved stem-includes Retainer)

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

Note: Used After Code Date 93112100

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 262750

Spring, Valve (Exhaust)
(Superseded to 691838)

Note: Used After Code Date 90051300 and Before Code Date 93112200

$8.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26826

Spring-Valve (Exhaust)

Note: Used Before Code Date 90051400

$7.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

41

Briggs & Stratton 292259

Retainer-Valve (Exhaust)

Note: Used Before Code Date 90051400

$9.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 491442

Rotocoil Assy (Exhaust)
(Superseded to 691367)

Note: Used After Code Date 90051300 and Before Code Date 93112200

$10.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 23184

Retainer-Valve Spring
(Superseded to 691760)

$7.49

$

In Stock, Qty 11

0

44

Briggs & Stratton 23187

Pin-Locating
(Superseded to 5023187)

Note: (Use with valves with hole in stem except with rotocap)

$335.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 93062

Screw, Hex Head Tap
(Superseded to 691637)

$3.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 294502

Bracket-Control Wire Casing

$7.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 220478

Shield-Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 223390

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 220824

Switch-Stop

$3.99

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

370

Briggs & Stratton 66432

Washer, Steel Zinc
(Superseded to 691607)

$5.49

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

Note: Used Before Code Date 88080100

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

Note: Used After Code Date 88073100

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

Note: For Options, See Repair Manual.

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

Note: See Repair Manual.

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491075

Label Kit

$34.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 27842

Owner's Manual

$

$

Not available
