8233 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) Model D-641e Magneto And Starter Parts List Models Used On: 8233ae Parts Diagram

Walk-Behind Mower

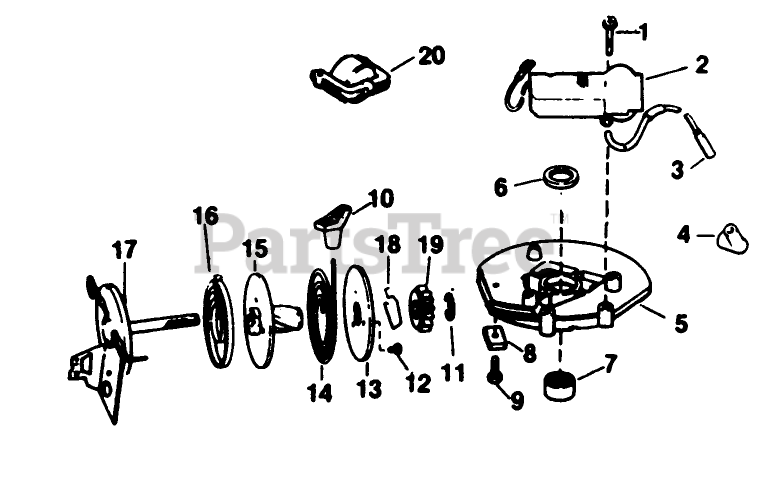

Model D-641e Magneto And Starter Parts List Models Used On: 8233ae Parts Diagram

  • Title

1

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$2.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 681525

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

3

Lawn-Boy 678117

LEAD AY. S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$20.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 580339

See Supercession: 684698
(Superseded to 684698)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$7.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 681375

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

6

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$6.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 679277

BEARING AY. S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

8

Lawn-Boy 604261

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

9

Lawn-Boy 604857

SCREW S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$7.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 606863

See Supercession: 609477
(Superseded to 609477)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

Lawn-Boy 681522

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

11

Lawn-Boy 604259

E-RING

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

12

Lawn-Boy 602821

SCREW

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

13

Lawn-Boy 604244

See Supercession: 681896
(Superseded to 681896)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

14

Lawn-Boy 607874

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

15

Lawn-Boy 604646

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

16

Lawn-Boy 604257

SPRING S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$40.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 681301

See Supercession: 681395
(Superseded to 681395)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

18

Lawn-Boy 604260

STARTER SPRING S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$14.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 607547

STARTER PINION S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

20

Lawn-Boy 681362

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available
