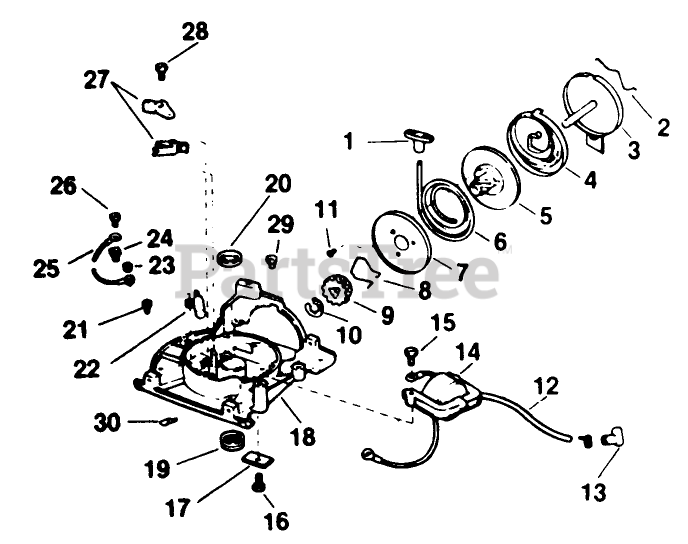

8233 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) Model D-449 Magneto Starter Parts List Models Used On: 8229f Parts Diagram

Walk-Behind Mower

Model D-449 Magneto Starter Parts List Models Used On: 8229f Parts Diagram

  • Title

1

Lawn-Boy 606863

See Supercession: 609477
(Superseded to 609477)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

2

Lawn-Boy 604573

SPRING S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$5.49

$

Usually ships in 3-6 days

0

Lawn-Boy 681352

DUP PART SEE $BOOK

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

3

Lawn-Boy 681347

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

4

Lawn-Boy 604257

SPRING S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$40.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 604646

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

6

Lawn-Boy 604279

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

7

Lawn-Boy 604244

See Supercession: 681896
(Superseded to 681896)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

8

Lawn-Boy 604260

STARTER SPRING S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$14.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 607547

STARTER PINION S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

10

Lawn-Boy 604259

E-RING

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

11

Lawn-Boy 602821

SCREW

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

Lawn-Boy 609005

WASHER S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

12

Lawn-Boy 678117

LEAD AY. S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$20.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 580339

See Supercession: 684698
(Superseded to 684698)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 678539

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

15

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$2.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 604857

SCREW S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$7.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604261

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

18

Lawn-Boy 608655

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

19

Lawn-Boy 679277

BEARING AY. S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

20

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$6.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 510193

Screw

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Currently unavailable

22

Lawn-Boy 677299

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

23

Lawn-Boy 133079

NUT S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 604256

NUT - CLIP

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 678116

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

26

Lawn-Boy 604986

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

27

Lawn-Boy 677254

BREAKER AY. S

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$54.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 303212

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

29

Lawn-Boy 607255

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

30

Lawn-Boy 607145

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available

31

Lawn-Boy 608978

DISCONTINUED

Note: (Note: For Complete Interlock Replacement parts, see page 22.)

$

$

Not available
