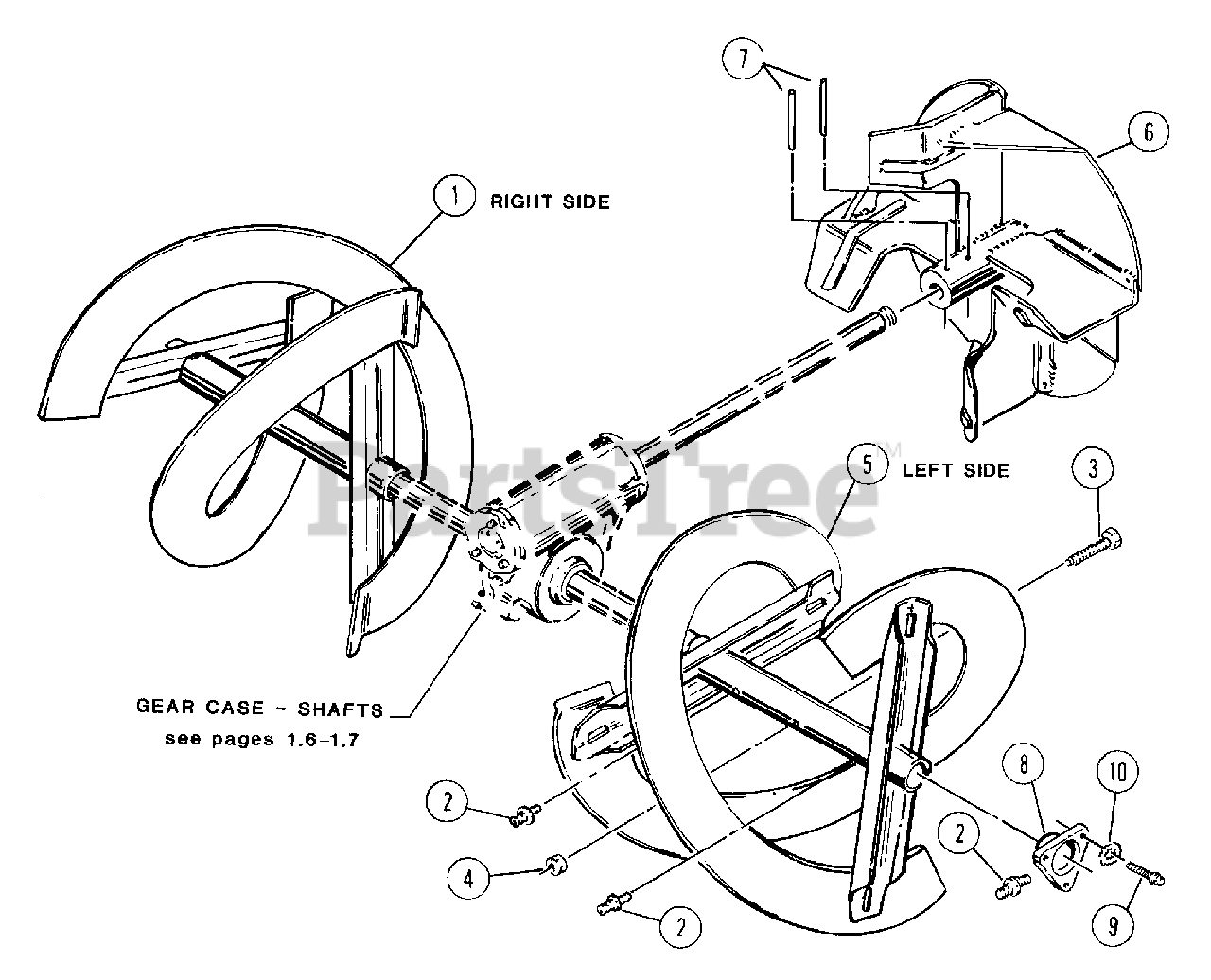

8230 (86133) - Snapper 23" Snow Thrower, 8hp Augers, Impeller Parts Diagram

23" Snow Thrower, 8hp

Augers, Impeller Parts Diagram

  • Title

BEARING & FITTING ASSY. (.72" Wide)

$

$

Not available

1

Snapper 7051422

AUGER, Right-23" Units Serial #03 Prefix only

Note: Was 49916

$

$

Currently unavailable

1

Snapper 7049928

AUGER, Right-23" Units-Serial #23 Prefix

$

$

Not available

1

Snapper 7051425

AUGER, Right-26" Units-Serial #03 Prefix only

Note: Was 49913

$

$

Not available

Snapper 7049935

AUGER, Right-26" Units Serial #23 Prefix
(Superseded to 7049935YP)

$199.99

$

Usually ships in 2-12 days

0

1

Snapper 7049922

AUGER, Right-30" Units
(Superseded to 7049922YP)

$307.99

$

Usually ships in 2-12 days

0

2

Snapper 7010817

FITTING, Grease (Straight Press Fit .187" Hole, .25" Deep)
(Superseded to 7010817SM)

Note: (For Bearings, item 8)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013865

BOLT, 5/16-18 x 1-7/8" Shear
(Superseded to 7091550YP)

$

$

Not available

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7051423

AUGER, Left-23" Units-Serial #03 Prefix only

Note: Was 49917

$

$

Not available

5

Snapper 7049927

AUGER, Left-23" Units-Serial #23 Prefix

$

$

Not available

5

Snapper 7051426

AUGER, Left-26" Units-Serial #03 Prefix only

Note: Was 49914

$

$

Currently unavailable

5

Snapper 7049936

AUGER, Left-26" Units-Serial #23 Prefix

$

$

Not available

5

Snapper 7049921

AUGER, Left-30" Units
(Superseded to 7049921YP)

$245.99

$

Usually ships in 2-12 days

0

6

Snapper 7049677

IMPELLER (Fan)

$

$

Not available

7

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 15

0

8

Snapper 7051350

BEARING & FITTING ASSY. (.72" Wide) 26" & 30" Models
(Superseded to 7051350YP)

$35.99

$

Usually ships in 2-12 days

0

8

Snapper 7051490

BEARING & FITTING ASSY. (1.22" Wide) 23" Models
(Superseded to 7051490YP)

$47.99

$

In Stock, only 2 left!

0

9

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

Note: (For Augers-items 1 & 5)

$3.49

$

In Stock, Qty 12

0
