8229 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1971) MODELS 8229, 8229S SELF-PROPELLED MOWER PARTS LIST Parts Diagram

Walk-Behind Mower

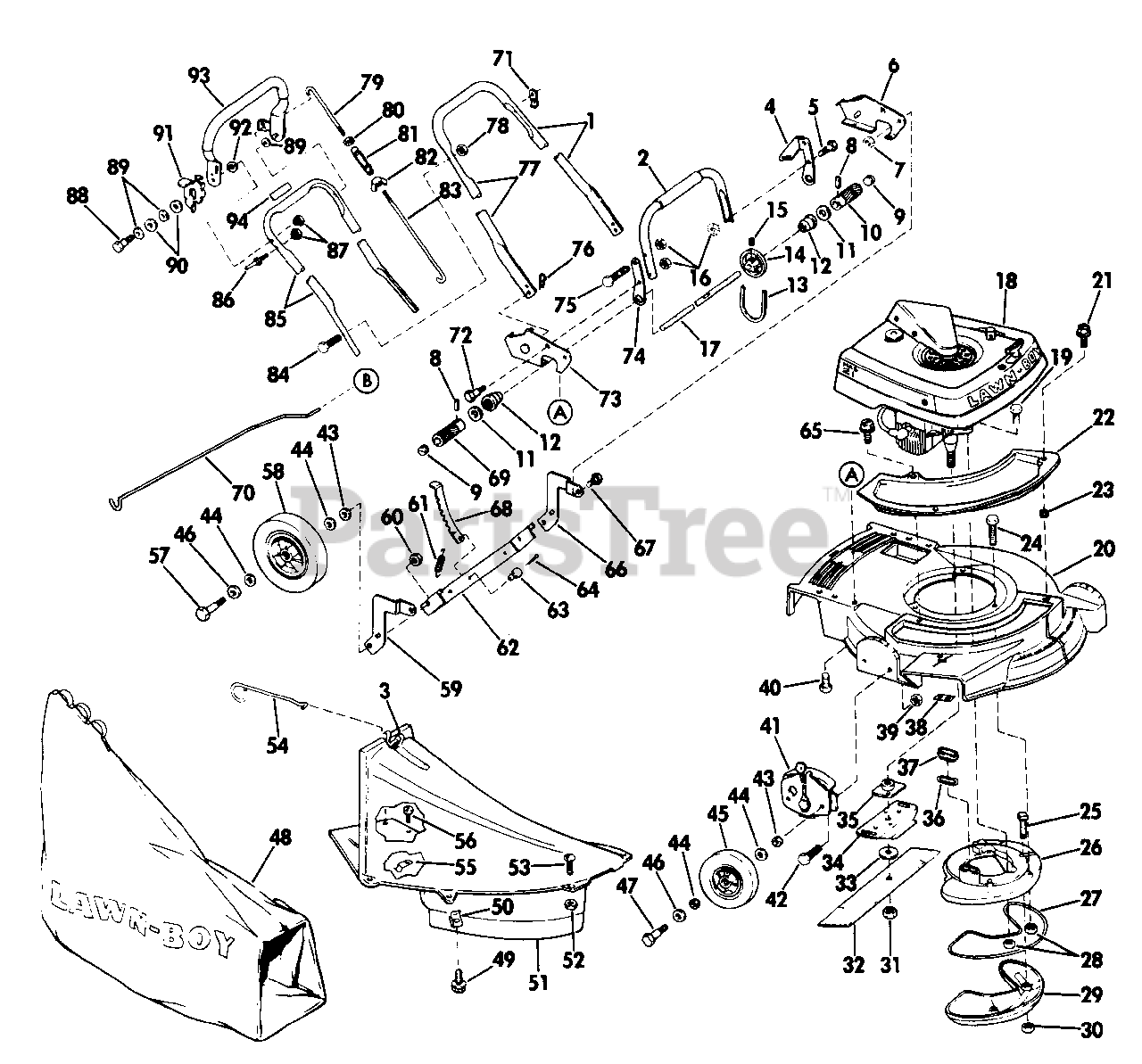

MODELS 8229, 8229S SELF-PROPELLED MOWER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 605857

Handle-Lower

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

2

Lawn-Boy 678787

Connect Link & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 679356

Clip Assy.-Chute (Plastic)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 678024

Clip Assy.-Chute (Metal)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

4

Lawn-Boy 606673

Bracket-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

5

Lawn-Boy 606672

Shoulder Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

6

Lawn-Boy 678764

Handle Bracket Assembly L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

7

Lawn-Boy 602830

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

8

Lawn-Boy 605828

Roll Pin-Roller to Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

9

Lawn-Boy 602926

Plug-Grease, Roller

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$12.99

$

In Stock, Qty 6

0

10

Lawn-Boy 605826

Drive Roller-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

11

Lawn-Boy 603037

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

12

Lawn-Boy 678782

Sleeve & Bearing Assembly
(Superseded to 681904)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

13

Lawn-Boy 605837

V-Belt-Driven
(Superseded to 608574)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$139.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 679411

Pulley-Driven

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. If your mower uses pulley (605838) part # is on pulley, use set screw 605909.

$

$

Not available

15

Lawn-Boy 607125

Set Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. If your mower uses pulley (605838) part # is on pulley, use set screw 605909.

$

$

Not available

16

Lawn-Boy 603477

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

17

Lawn-Boy 607269

Driveshaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

18

Lawn-Boy 679421

Engine-Model D-448

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

19

Lawn-Boy 604039

Screw-Crankcase to Muffler Plate

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

20

Lawn-Boy 679054

Housing Assembly 21"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

21

Lawn-Boy 606452

Hex Head Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

22

Lawn-Boy 606460

Cover-Chute Opening (Plastic)
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$36.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.49

$

In Stock, Qty 7

0

24

Lawn-Boy 604862

Screw-Muffler Plate to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

25

Lawn-Boy 604036

Screw-Muffler to Muffler Plate
(Superseded to 607847)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

26

Lawn-Boy 604026

Plate-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

27

Lawn-Boy 604516

Gasket-Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 602830

Nut-Nylock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

29

Lawn-Boy 604024

Muffler

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

30

Lawn-Boy 602315

Nut-Muffler Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 603703

Blade, 21"
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$33.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 605058

Washer-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, Qty 12

0

34

Lawn-Boy 603541

Stiffener-Blade

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

35

Lawn-Boy 677525

Collar & Plate Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$51.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 604624

Gasket-Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Gasket set-678071

$11.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 602717

Sleeve-Muffler Exhaust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 16

0

38

Lawn-Boy 604214

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

39

Lawn-Boy 602830

Nut-Height Adj. Mounting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

40

Lawn-Boy 606671

Screw-Handle Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

41

Lawn-Boy 678462

Height Adjustment Assy.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

42

Lawn-Boy 605101

Screw-Height Adjust to Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

43

Lawn-Boy 603620

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, Qty 20+

0

44

Lawn-Boy 605255

Felt Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$1.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 679291

Wheel & Tire Assembly 6"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

46

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 603441

Wheel Bolt-Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$7.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 678254

Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

49

Lawn-Boy 606450

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$19.99

$

Usually ships in 3-6 days

0

Lawn-Boy 679055

Chute Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors. Not Shown

$

$

Not available

50

Lawn-Boy 604227

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

51

Lawn-Boy 679056

Skirt Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

52

Lawn-Boy 133079

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$3.49

$

Usually ships in 3-6 days

0

53

Lawn-Boy 602063

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

54

Lawn-Boy 678723

Wheel Guard Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

55

Lawn-Boy 605664

Speed Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

56

Lawn-Boy 604986

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

57

Lawn-Boy 602680

Wheel Bolt-Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

58

Lawn-Boy 679294

Wheel & Tire Assembly 8"

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

59

Lawn-Boy 605839

Wheel Bracket-Right Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

60

Lawn-Boy 603773

Nut-Rear Wheel Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 5

0

61

Lawn-Boy 605802

Spring-Height Adjust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$7.99

$

In Stock, Qty 7

0

62

Lawn-Boy 605842

Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

63

Lawn-Boy 605799

Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

64

Lawn-Boy 603036

Cotter Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

65

Lawn-Boy 606451

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

66

Lawn-Boy 605840

Wheel Bracket-L-H. Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

67

Lawn-Boy 605797

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$24.99

$

In Stock, only 2 left!

0

68

Lawn-Boy 605841

Height Adjust Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

69

Lawn-Boy 605827

Drive Roller-Right

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

70

Lawn-Boy 679147

Rod & Clip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

71

Lawn-Boy 606511

Clip-Bag Support Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

72

Lawn-Boy 606144

Shoulder Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

73

Lawn-Boy 678765

Handle Bracket-Right

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

74

Lawn-Boy 605898

Bracket

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

75

Lawn-Boy 602480

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

76

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

77

Lawn-Boy 605857

Handle-Lower

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

78

Lawn-Boy 603477

Nut-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

79

Lawn-Boy 606565

Rod-Control, Upper

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

80

Lawn-Boy 606539

Nut-Jam

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

81

Lawn-Boy 606567

Turn Buckle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

82

Lawn-Boy 606062

Wing Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

83

Lawn-Boy 606566

Rod-Control, Lower

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

84

Lawn-Boy 602480

Screw-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

85

Lawn-Boy 605516

Handle-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

86

Lawn-Boy 606141

Lockout Pin Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

87

Lawn-Boy 603477

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

88

Lawn-Boy 606144

Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

89

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

90

Lawn-Boy 303254

Wave Washer
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.49

$

In Stock, only 1 left!

0

91

Lawn-Boy 605860

Clip-Lockout

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

92

Lawn-Boy 302474

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

93

Lawn-Boy 678775

Handle & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

94

Lawn-Boy 606705

Decal-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available
