8229 H - Lawn-Boy Walk-Behind Mower (SN: 700000001 - 799999999) (1977) Model 6255 Hevi-Duti Commercial Mower Parts List Parts Diagram

Walk-Behind Mower

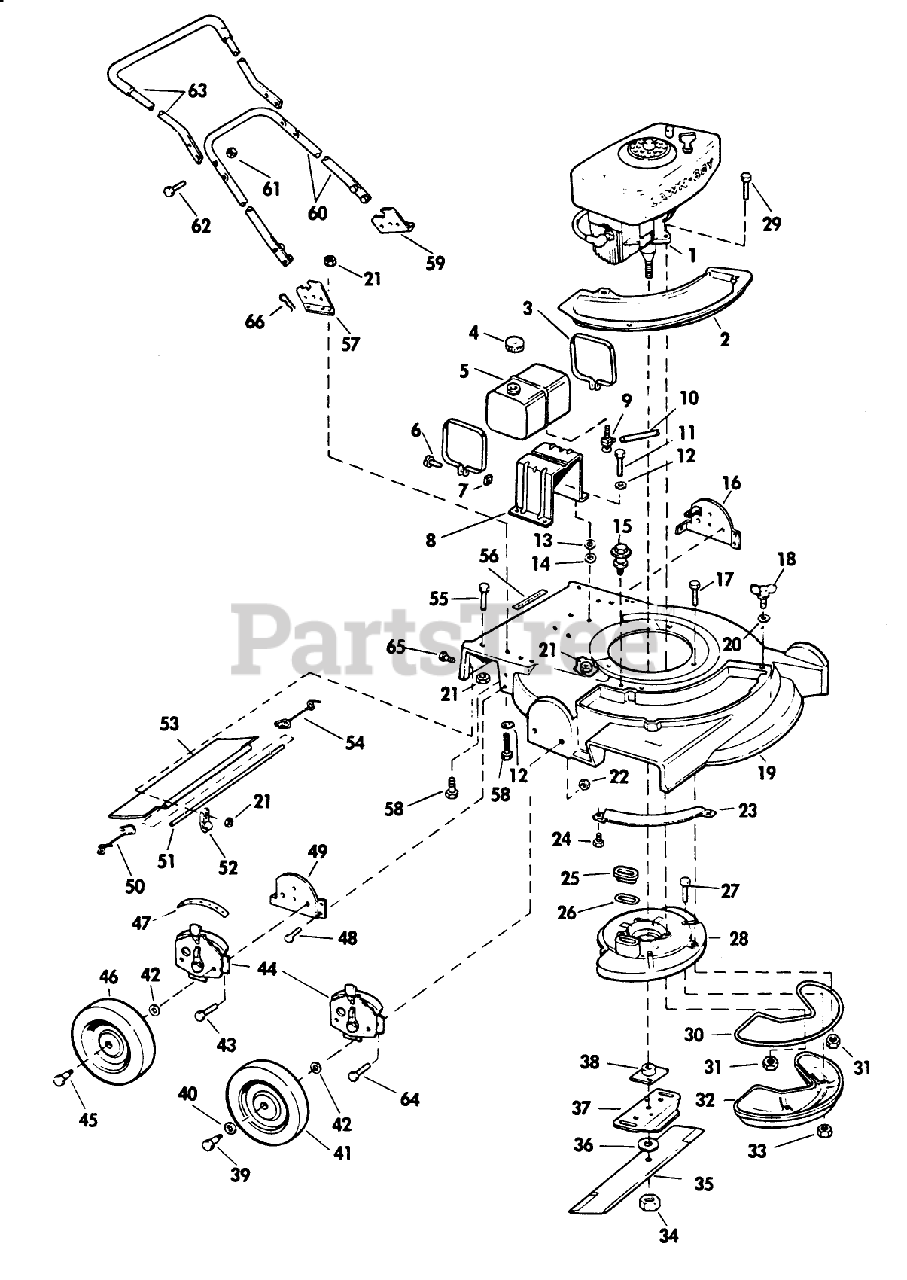

Model 6255 Hevi-Duti Commercial Mower Parts List Parts Diagram

  • Title

1

See Note #1 at bottom of this page.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

1

See Note #1 at bottom of this page.

Note: Note Num 1. A complete engine, part no. 679423, D-476 is a

$

$

Not available

1

See Note #1 at bottom of this page.

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

2

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$36.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 606631

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 606631

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

4

Lawn-Boy 679409

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

4

Lawn-Boy 679409

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 679163

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 679163

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

6

Lawn-Boy 310356

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

6

Lawn-Boy 310356

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 306542

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

7

Lawn-Boy 306542

Nut

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Currently unavailable

8

Lawn-Boy 606632

See Supercession: 611260
(Superseded to 611260)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$108.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 606632

See Supercession: 611260
(Superseded to 611260)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$108.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$23.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 606623

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

10

Lawn-Boy 606623

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 606144

BOLT PIONEER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 606144

BOLT PIONEER

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

12

Lawn-Boy 306405

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

12

Lawn-Boy 306405

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 604995

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 604995

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

14

Lawn-Boy 602945

WASHER

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

14

Lawn-Boy 602945

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

15

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$4.49

$

In Stock, Qty 12

0

16

Lawn-Boy 681243

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

16

Lawn-Boy 681243

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 604862

SCREW

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

18

Lawn-Boy 606733

WING SCREW LAWRE

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$9.99

$

In Stock, Qty 6

0

18

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

19

Lawn-Boy 681535

DUP PART SEE $BOOK

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681535

DUP PART SEE $BOOK

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

20

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$1.49

$

In Stock, Qty 7

0

20

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 7

0

21

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 602315

LOCKNUT E

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$4.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608311

NUT-LOCK F

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 608175

BAR-TOE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 608175

BAR-TOE

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$77.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$3.49

$

In Stock, only 3 left!

0

24

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 602717

SLEEVE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 16

0

25

Lawn-Boy 602717

SLEEVE

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$2.99

$

In Stock, Qty 16

0

26

Lawn-Boy 604624

GASKET S

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$11.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 604624

GASKET S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 607847

SCREW

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

27

Lawn-Boy 607847

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 679903

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 679903

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

29

Lawn-Boy 607715

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

29

Lawn-Boy 607715

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 604516

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 604516

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

31

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 608311

NUT-LOCK F

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 604024

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 604024

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

33

Lawn-Boy 608559

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

33

Lawn-Boy 608559

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$5.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$33.99

$

In Stock, only 3 left!

0

35

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

36

Lawn-Boy 605058

WASHER

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$5.99

$

In Stock, Qty 12

0

37

Lawn-Boy 603541

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

37

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$51.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 603441

BOLT WHEEL

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$7.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 306428

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

40

Lawn-Boy 306428

Washer

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Currently unavailable

41

Lawn-Boy 678513

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

41

Lawn-Boy 678513

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

42

Lawn-Boy 603620

WASHER WROUGHT

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$5.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 608373

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

43

Lawn-Boy 608373

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 678462

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 678462

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

45

Lawn-Boy 603567

BOLT-SHOULDER

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$15.99

$

In Stock, only 2 left!

0

45

Lawn-Boy 603567

BOLT-SHOULDER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$68.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 608372

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

47

Lawn-Boy 608372

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 306487

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 306487

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

49

Lawn-Boy 681244

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

49

Lawn-Boy 681244

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

51

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

52

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 608161

CLAMP ROD KMC

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$11.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 608173

DISCONTINUED
(Superseded to 608870)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

53

Lawn-Boy 608173

DISCONTINUED
(Superseded to 608870)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

55

Lawn-Boy 604862

SCREW

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

55

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 606903

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

56

Lawn-Boy 606903

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 606636

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 606636

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

58

Lawn-Boy 607665

BOLT RB&W

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$9.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 607665

BOLT RB&W

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 606637

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 606637

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

60

Lawn-Boy 679167

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

60

Lawn-Boy 679167

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

61

Lawn-Boy 602315

LOCKNUT E

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$4.99

$

In Stock, only 2 left!

0

62

Lawn-Boy 602480

SCREW

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

62

Lawn-Boy 602480

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 679971

DISCONTINUED
(Superseded to 604601)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 679971

DISCONTINUED
(Superseded to 604601)

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

64

Lawn-Boy 605101

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

64

Lawn-Boy 605101

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 306409

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

65

Lawn-Boy 306409

Screw

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Currently unavailable

66

Lawn-Boy 603927

DISCONTINUED

Note: Note: An Accessory Grasscatcher Assembly is available, Part No. 679968.

$

$

Not available

66

Lawn-Boy 603927

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
