82232-2036-02 - Briggs & Stratton Horizontal Engine Cylinder, Piston, Mufflers Parts Diagram

Horizontal Engine

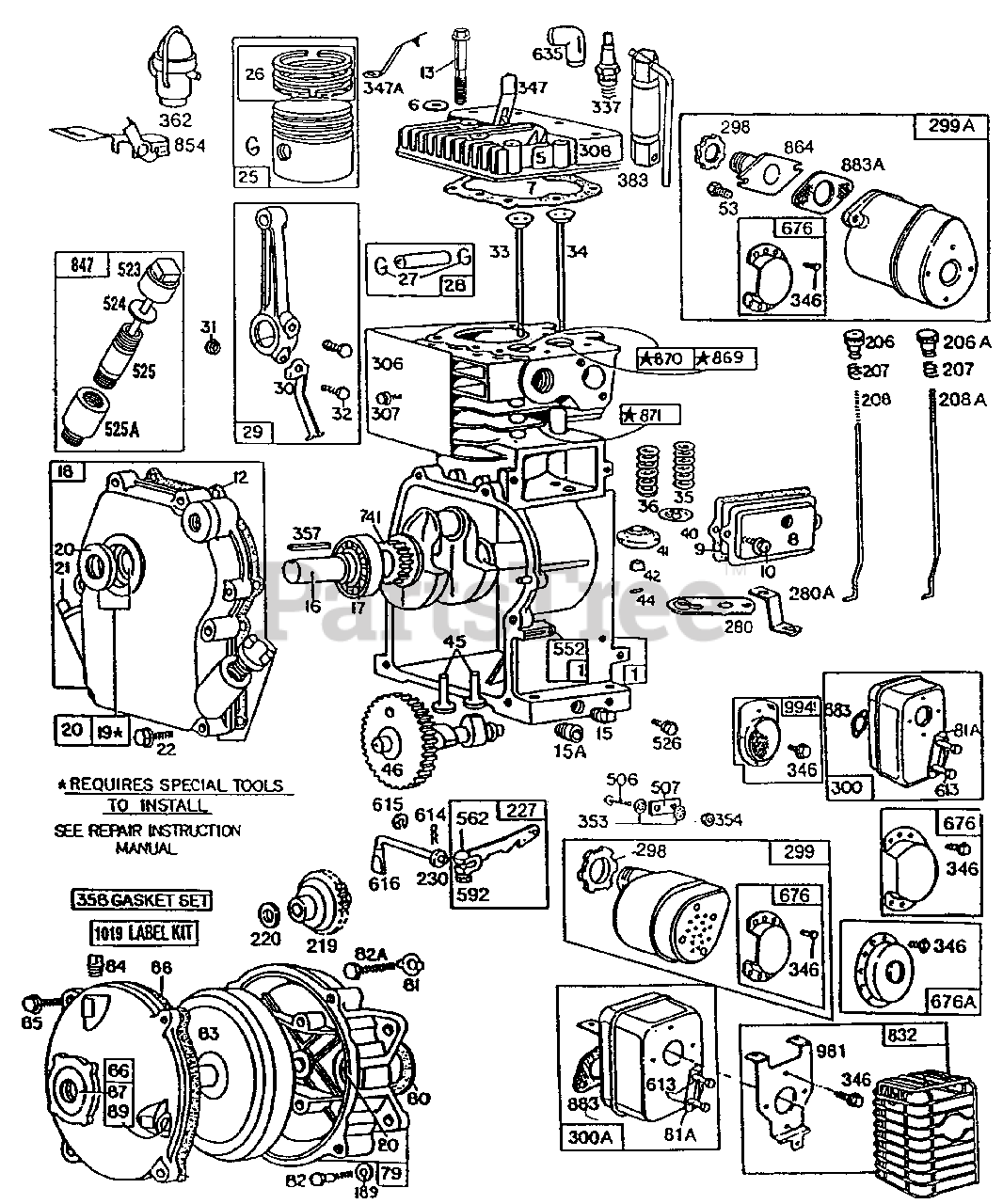

Cylinder, Piston, Mufflers Parts Diagram

  • Title

1

Briggs & Stratton 395567

Cylinder Assembly

$310.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 210812

Head-Cylinder
(Superseded to 213953)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 272167

Gasket-Cyl Hd

Note: Included in Gasket Set-Part No. 397144

$7.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397144

$3.99

$

In Stock, Qty 15

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 397144

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 397144

$9.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 397144

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 94547

Screw, Machine Hex (Cylinder Head)
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15A

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 492095

Crankshaft

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978

$142.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 395259

Cover-Crankcase
(Superseded to 497504)

$167.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 393812

Seal-Oil

$5.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 295455

Piston Assy-Std

$

$

Not available

25

Briggs & Stratton 295456

Piston Assy-010

$58.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295457

Piston Assy-020

$145.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295458

Piston Assy-030

$142.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 295657

Ring, Piston Kit (Std.)
(Superseded to 294232)

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 295658

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 295659

Ring, Piston Kit (.020" O.S.)
(Superseded to 294225)

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 295660

Ring, Piston Kit (.030" O.S.)
(Superseded to 294226)

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 297201

Ring Set-Std Chr

$24.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 294367

Rod-Connecting (Standard)
(Superseded to 699655)

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order Part No. 296079

$39.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 220670

Dipper-Connecting Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222282

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94404

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 260443

Valve, Exhaust (Stellite With Hole In Stem)
(Superseded to 296676)

Note: Used Before Code Date 90051400.

$23.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 262580

Valve-Exhaust (Cobalite)
(Superseded to 296676)

Note: Used After Code Date 90051300.

$23.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Grooved stem-includes Retainer)

$24.99

$

In Stock, only 4 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 262750

Spring, Valve (Exhaust)
(Superseded to 691838)

Note: Used After Code Date 90051300.

$8.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26826

Spring-Valve (Exhaust)

Note: Used Before Code Date 90051400.

$7.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

41

Briggs & Stratton 292259

Retainer-Valve (Exhaust)

Note: Used Before Code Date 90051400.

$9.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 491442

Rotocoil Assy (Exhaust)
(Superseded to 691367)

Note: Used After Code Date 90051300.

$10.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 230127

Retainer-Valve

$9.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 230126

Pin-Valve Spring Set

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493747

Camshaft (Plastic)
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 94523

Screw, Hex Flange H
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

79

Briggs & Stratton 290779

Case-Reduction Gear
(Superseded to 690605)

$136.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 27667

Gasket-Gear Case
(Superseded to 691602)

$5.99

$

Usually ships in 2-12 days

0

81A

Briggs & Stratton 223256

Lock-Screw
(Superseded to 691179)

$5.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 220234

Lock-Screw Head
(Superseded to 691168)

$5.49

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 92279

Screw, Hex Head Cap (5/16-24 X 1/2")
(Superseded to 699164)

$3.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 91541

Screw, Hex Head Cap (5/16-24 X 7/8")
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 211293

Shaft-Auxiliary Drive
(Superseded to 690374)

$242.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 92617

Screw-Gear Case Mounting Sem
(Superseded to 691121)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 92747

Screw, Sem Hex Hd M
(Superseded to 691117)

Note: (Used on Two Top Holes to Mount Cover)

$4.49

$

In Stock, only 1 left!

0

87

Briggs & Stratton 19011

Seal-Oil
(Superseded to 691582)

$12.99

$

In Stock, only 1 left!

0

88

Briggs & Stratton 27313

Gasket-Gear Case Cover
(Superseded to 691600)

$11.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

206A

Briggs & Stratton 230149

Nut-Gov Adjusting (#5-44 Thread)

$35.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208A

Briggs & Stratton 230680

Rod-Control

$7.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 261990

Rod-Control

$12.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 391737

Gear-Governor

Note: Used Before Code Date 91061000.

$38.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 494845

Gear-Governor

Note: Used After Code Date 91060900.

$

$

Not available

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 394541

Governor Control Le (Mech. Gov.)

$13.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

280A

Briggs & Stratton 221384

Strap-Control Rod

$

$

Not available

280

Briggs & Stratton 223236

Strap-Control Rod

$6.49

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 220859

Locknut, Muffler/El
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

299A

Briggs & Stratton 492591

Muffler-Exhaust (Lo-Tone)
(Superseded to 493288)

$36.99

$

In Stock, only 1 left!

0

299

Briggs & Stratton 493288

Muffler-Exhaust (Lo-Tone)

$36.99

$

In Stock, only 1 left!

0

300A

Briggs & Stratton 397888

Muffler-Exhaust (Used With Guard)
(Superseded to 691360)

$74.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 395959

Muffler-Exhaust
(Superseded to 691360)

$74.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 220478

Shield-Cylinder

Note: Used Before Code Date 90020500.

$16.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 224377

Shield-Cylinder

Note: Used After Code Date 90020400.

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

308

Briggs & Stratton 223390

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

347A

Briggs & Stratton 298926

Sparkplug Stop Sw

$34.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 397144

Gasket Kit (Used With Rotary Choke Carburetors)
(Superseded to 495602)

$

$

Not available

362

Briggs & Stratton 89742

Shield-Sp Plug (With Stop Switch)

$

$

Not available

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 297357

Cap/Dipstick Assy

$

$

Not available

524

Briggs & Stratton 65304

Gasket-Oil Filler Cap
(Superseded to 690270)

$3.99

$

In Stock, only 1 left!

0

525A

Briggs & Stratton 394884

Adaptor-Oil Filler With Nipple
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

525

Briggs & Stratton 91258

Dipstick Tube (2-1/2" Long)
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

552

Briggs & Stratton 231079

Bushing, Governor S (1/4" I.d.)
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 93613

Screw, Armature Spa
(Superseded to 690306)

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank, Governor (1/4" Dia.)
(Superseded to 692016)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 13

0

676A

Briggs & Stratton 397931

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261721

Gear-Timing (For Ball Bearing)

$13.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 398068

Guard Group-Muffler
(Superseded to 490571)

$44.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 493955

Tube/Dipstick Assembly

$19.99

$

Usually ships in 2-12 days

0

854

Briggs & Stratton 392884

Stop-Switch

$7.49

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 492232

Adapter-Muffler
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

Note: Used Before Code Date 88063000.

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

Note: Used After Code Date 88062900.

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

Note: For Options see Repair Manual

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

Note: See Repair Instruction Manual

$14.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 272203

Gasket-Muffler
(Superseded to 691314)

$6.49

$

In Stock, only 1 left!

0

883

Briggs & Stratton 270774

Gasket-Muffler
(Superseded to 691880)

Note: Included in Gasket Set-Part No. 397144

$5.49

$

In Stock, Qty 5

0

981

Briggs & Stratton 223395

Bracket-Muffler Guard
(Superseded to 690427)

$22.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 398067

Spark Arrestor

$64.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491075

Label Kit

$34.99

$

Usually ships in 2-12 days

0
