8222 - Lawn-Boy Walk-Behind Mower (SN: 400000001 - 499999999) (1964) Model 1116 Hobby Gardener Parts List Parts Diagram

Walk-Behind Mower

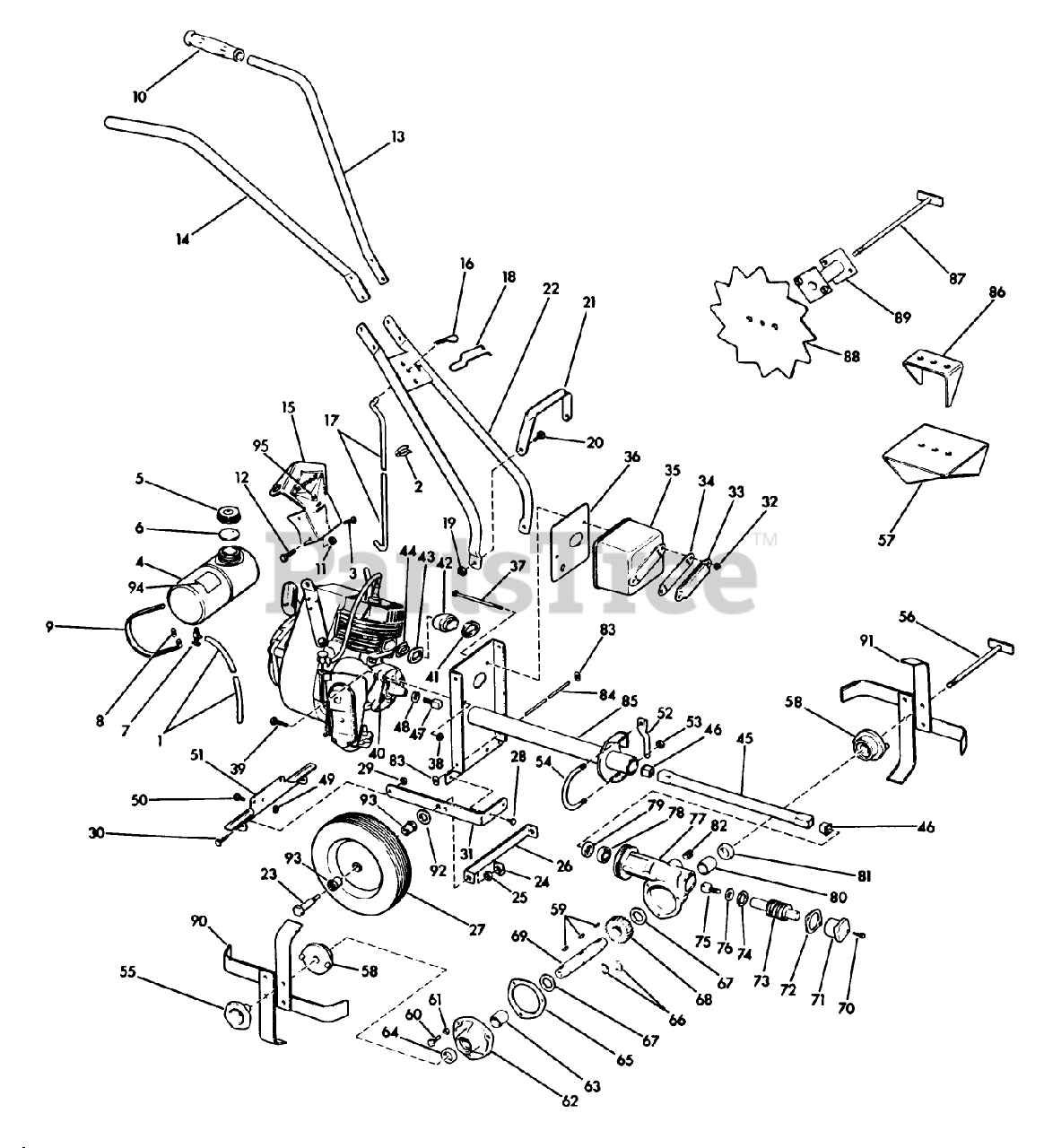

Model 1116 Hobby Gardener Parts List Parts Diagram

  • Title

1

Lawn-Boy 603861

Line-Gas

$

$

Currently unavailable

2

Lawn-Boy 603902

Clip-Gas Line

$

$

Currently unavailable

3

Lawn-Boy 306401

DISCONTINUED

$

$

Not available

4

Lawn-Boy 677014

DISCONTINUED

$

$

Not available

5

Lawn-Boy 677081

Gas Cap

$

$

Currently unavailable

6

Lawn-Boy 602059

DISCONTINUED

$

$

Not available

7

Lawn-Boy 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 603925

Nut-Speed

$

$

Currently unavailable

9

Lawn-Boy 603884

Tank Strap

$

$

Currently unavailable

10

Lawn-Boy 603025

DISCONTINUED

$

$

Not available

11

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

12

Lawn-Boy 602192

SCREW S

$

$

Not available

13

Lawn-Boy 603885

DISCONTINUED

$

$

Not available

14

Lawn-Boy 603886

Handle Section-Top, Right

$

$

Currently unavailable

15

Lawn-Boy 603887

Bracket-Upper Handle

$

$

Currently unavailable

16

Lawn-Boy 603927

DISCONTINUED

$

$

Not available

17

Lawn-Boy 603891

Rod-Handle Height Adjustment

$

$

Currently unavailable

18

Lawn-Boy 603893

Guide-Starter Rope

$

$

Currently unavailable

19

Lawn-Boy 603259

Nut-Huglok

$

$

Currently unavailable

20

Lawn-Boy 603250

DISCONTINUED

$

$

Not available

21

Lawn-Boy 603892

Bracket-Carrier Handle

$

$

Currently unavailable

22

Lawn-Boy 677894

DISCONTINUED

$

$

Not available

23

Lawn-Boy 602680

BOLT

$

$

Not available

24

Lawn-Boy 603110

DISCONTINUED

$

$

Not available

25

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

26

Lawn-Boy 603914

Bracket-Center Wheel Brace

$

$

Currently unavailable

27

Lawn-Boy 677893

DISCONTINUED

$

$

Not available

28

Lawn-Boy 603475

Screw-Thread Cutting

$

$

Currently unavailable

29

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

30

Lawn-Boy 603012

DISCONTINUED

$

$

Not available

31

Lawn-Boy 603869

Bracket-Wheel Attachment

$

$

Currently unavailable

32

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 603873

Chamber-Muffler Transfer

$

$

Currently unavailable

34

Lawn-Boy 603872

Gasket-Muffler Transfer

$

$

Currently unavailable

35

Lawn-Boy 603871

Muffler

$

$

Currently unavailable

36

Lawn-Boy 603870

Gasket-Muffler

$

$

Currently unavailable

37

Lawn-Boy 603874

Screw

$

$

Currently unavailable

38

Lawn-Boy 603259

Nut-Huglok

$

$

Currently unavailable

39

Lawn-Boy 602694

DISCONTINUED

$

$

Not available

40

Lawn-Boy 677907

DISCONTINUED

$

$

Not available

41

Lawn-Boy 603863

Gasket-Exhaust

$

$

Currently unavailable

42

Lawn-Boy 603913

Sleeve-Exhaust

$

$

Currently unavailable

43

Lawn-Boy 602644

DISCONTINUED

$

$

Not available

44

Lawn-Boy 602717

SLEEVE

$2.99

$

In Stock, Qty 16

0

45

Lawn-Boy 677904

Drive Tube and Bushing Assembly

$

$

Currently unavailable

46

Lawn-Boy 603895

DISCONTINUED

$

$

Not available

47

Lawn-Boy 603860

Screw-Square Head

$

$

Currently unavailable

48

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

49

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

50

Lawn-Boy 602848

SCREW S

$

$

Not available

51

Lawn-Boy 603859

Bracket-Wheel Scraper

$

$

Currently unavailable

52

Lawn-Boy 603897

Nut-Lever

$

$

Currently unavailable

53

Lawn-Boy 603392

DISCONTINUED

$

$

Not available

54

Lawn-Boy 603896

U Bolt

$

$

Currently unavailable

55

Lawn-Boy 603917

Knob-Tie Rod Assembly

$

$

Currently unavailable

56

Lawn-Boy 677897

DISCONTINUED

$

$

Not available

57

Lawn-Boy 603972

Tine-Weeder

$

$

Currently unavailable

58

Lawn-Boy 603918

DISCONTINUED

$

$

Not available

59

Lawn-Boy 120395

See Supercession: 607199
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

60

Lawn-Boy 602192

SCREW S

$

$

Not available

61

Lawn-Boy 306396

Washer

$

$

Currently unavailable

62

Lawn-Boy 677896

DISCONTINUED

$

$

Not available

63

Lawn-Boy 602767

DISCONTINUED

$

$

Not available

64

Lawn-Boy 602632

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

65

Lawn-Boy 603906

DISCONTINUED

$

$

Not available

66

Lawn-Boy 603922

Ring-Retaining

$

$

Currently unavailable

67

Lawn-Boy 603904

DISCONTINUED

$

$

Not available

68

Lawn-Boy 603900

Worm Gear

$

$

Currently unavailable

69

Lawn-Boy 603901

DISCONTINUED

$

$

Not available

70

Lawn-Boy 603476

DISCONTINUED

$

$

Not available

71

Lawn-Boy 603905

Housing Cap

$

$

Currently unavailable

72

Lawn-Boy 603907

DISCONTINUED

$

$

Not available

73

Lawn-Boy 603899

Worm

$

$

Currently unavailable

74

Lawn-Boy 603903

DISCONTINUED

$

$

Not available

75

Lawn-Boy 603860

Screw-Square Head

$

$

Currently unavailable

76

Lawn-Boy 306405

DISCONTINUED

$

$

Not available

77

Lawn-Boy 677895

DISCONTINUED

$

$

Not available

78

Lawn-Boy 603242

DISCONTINUED

$

$

Not available

79

Lawn-Boy 603289

DISCONTINUED

$

$

Not available

80

Lawn-Boy 602767

DISCONTINUED

$

$

Not available

81

Lawn-Boy 602632

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

82

Lawn-Boy 603772

DISCONTINUED

$

$

Not available

83

Lawn-Boy 603868

Nut-Push-on

$

$

Currently unavailable

84

Lawn-Boy 603867

Rod-Wheel Scraper, Fron

$

$

Currently unavailable

85

Lawn-Boy 677892

DISCONTINUED

$

$

Not available

86

Lawn-Boy 603973

Tine-Cultivator

$

$

Currently unavailable

87

Lawn-Boy 677960

DISCONTINUED

$

$

Not available

88

Lawn-Boy 603978

Edging Disc

$

$

Currently unavailable

89

Lawn-Boy 677959

DISCONTINUED

$

$

Not available

90

Lawn-Boy 677948

DISCONTINUED

$

$

Not available

91

Lawn-Boy 677949

DISCONTINUED

$

$

Not available

92

Lawn-Boy 602627

DISCONTINUED

$

$

Not available

93

Lawn-Boy 677980

DISCONTINUED

$

$

Not available

94

Lawn-Boy 603898

Decal, Instructions

$

$

Currently unavailable

95

Lawn-Boy 603919

Decal

$

$

Currently unavailable
