822 S (1696161-00) - Briggs & Stratton 22" Snow Thrower, 8.0 Gross TP (2012) Frame Group Parts Diagram

22" Snow Thrower, 8.0 Gross TP

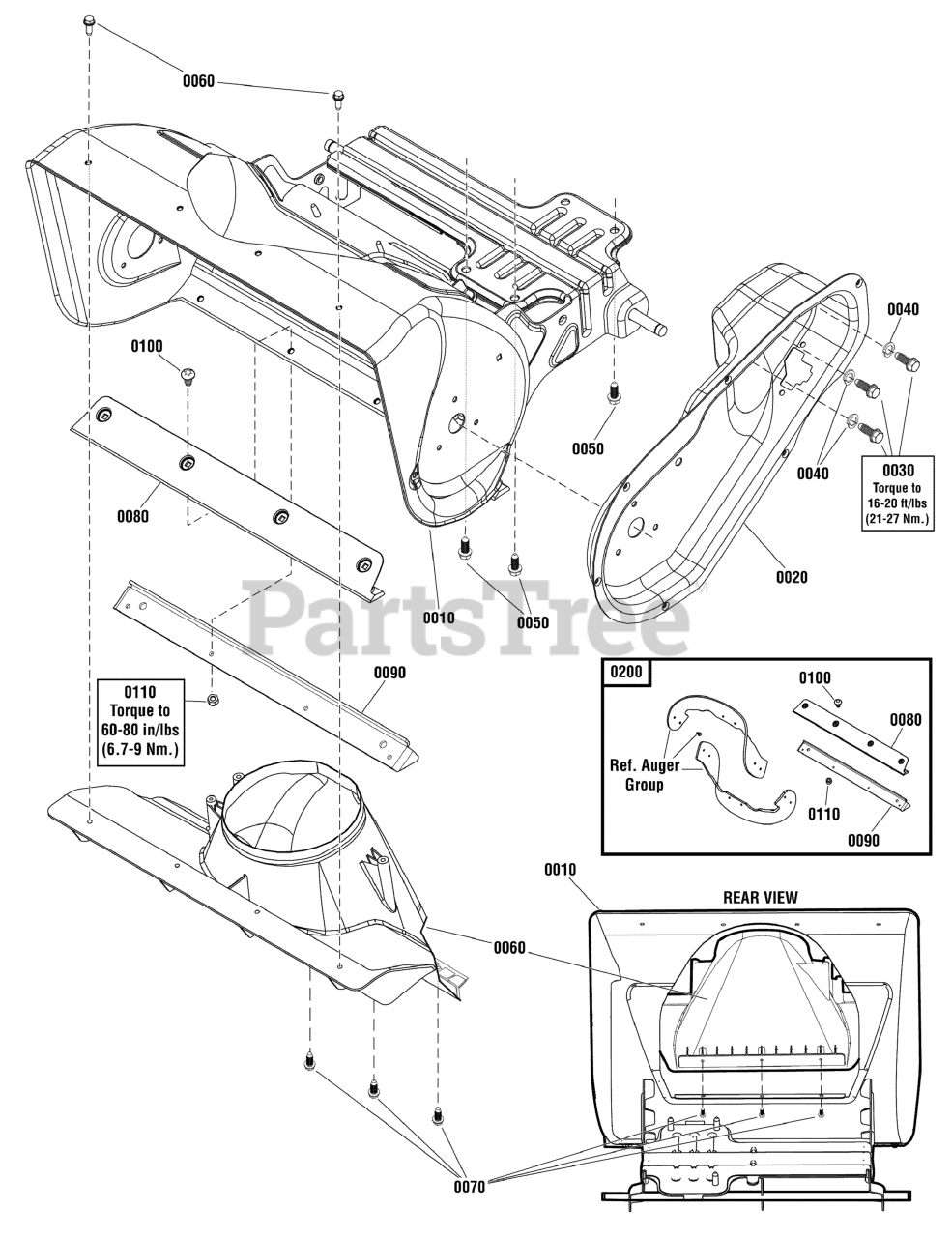

Frame Group Parts Diagram

  • Title

0010

Murray 1739225BSYP

FRAME ASSEMBLY

$444.99

$

Usually ships in 2-12 days

0

0020

Murray 1739100AYP

HOUSING, Drive

$101.99

$

In Stock, only 4 left!

0

0030

Murray 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

0040

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0050

Murray 75246GS

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0060

Murray 1739555YP

CHIMNEY
(Superseded to 707849)

Note: Used without Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, Qty 5

0

0060

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, Qty 5

0

0070

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0080

SCRAPER BAR

Note: (Included with Ref. No. 0200)

$

$

Not available

0090

Murray 1752660AYP

SUPPORT, Scraper Blade

Note: (Included with Ref. No. 0200)

$28.99

$

In Stock, only 4 left!

0

0100

SCREW, 1/4-20 x 5/8, Allen Head

Note: (Included with Ref. No. 0200)

$

$

Not available

0110

Murray 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

Note: (Included with Ref. No. 0200)

$3.49

$

In Stock, Qty 9

0

0200

Murray 1687628YP

KIT, Scraper Bar & Flight
(Superseded to 1687806)

Note: (Includes Ref. Nos. 0080, 0090, 0100, 0110, Auger Flights & Hardware)

$121.99

$

In Stock, Qty 20+

0
