822-115 (133Y679H019) - Turf Power Lawn Tractor (1993) (Agway) PTO Clutch Parts Diagram

Lawn Tractor

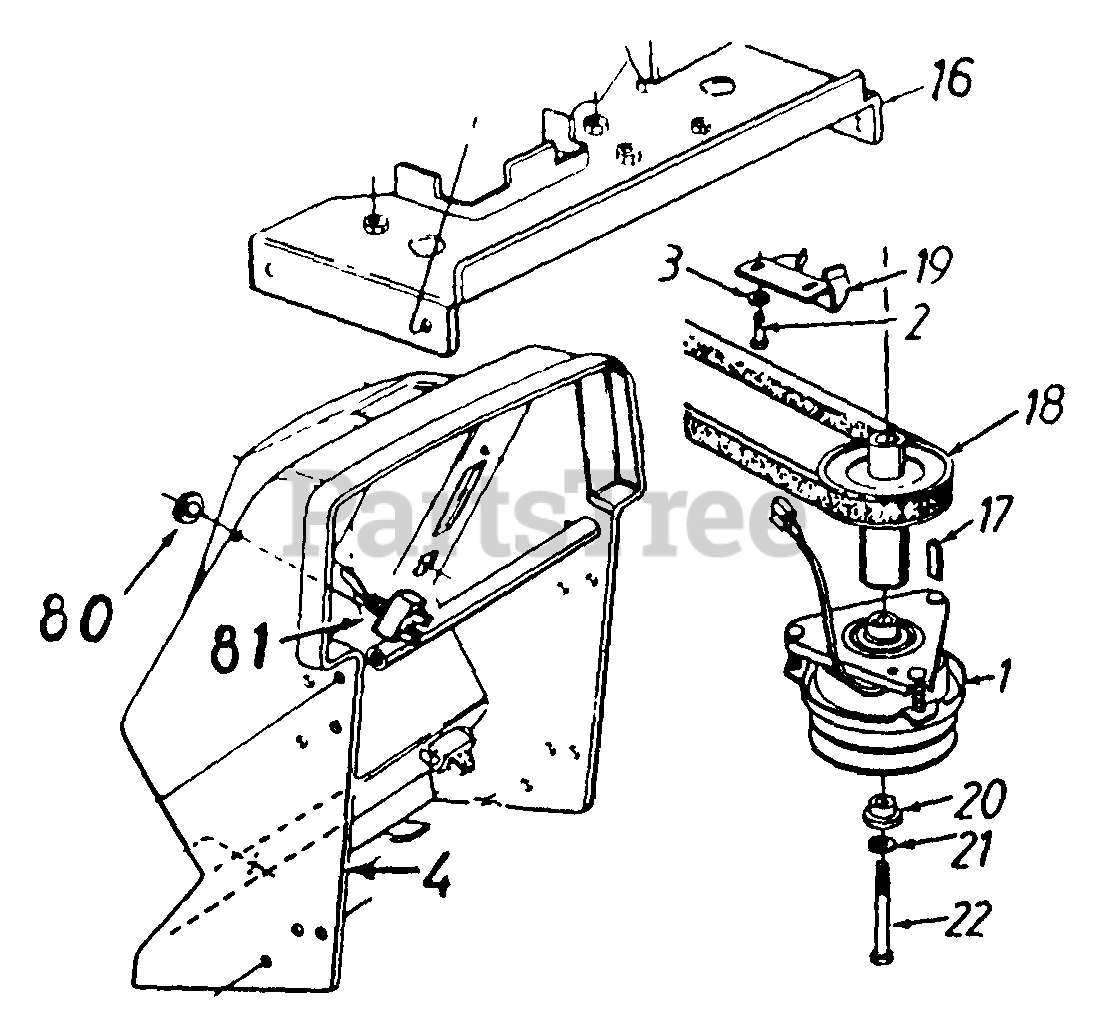

PTO Clutch Parts Diagram

  • Title

1

MTD 717-0983

Electric Clutch

$

$

Not available

2

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-1290A

Dash

$

$

Not available

16

MTD 17358C

Belt Guard Brkt. Ass'y
(Superseded to 17358D-0637)

$

$

Not available

17

MTD 714-0118

Sq. Key 1/4" x 1 5" Lg.

$6.99

$

In Stock, only 4 left!

0

18

MTD 756-0576

Engine Pulley

$

$

Not available

19

MTD 17418

Torque Bracket

Variations

MTD 17418-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 738-0785

Shld. Spacer .445" I.D.
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 10

0

21

MTD 736-0171

L-Wash. 7/16" I D.

$4.49

$

In Stock, only 4 left!

0

22

MTD 710-3157

Hex Bolt 7/16-20 x 3 25" Lg. (Gr 5)
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

80

MTD 712-3014

Hex Nut 1/2-27 Thd

$

$

Not available

81

MTD 725-0893

PTO Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0
