821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Wheel Transmission Assembly Parts Diagram

Rear-Tine Tiller, 8hp

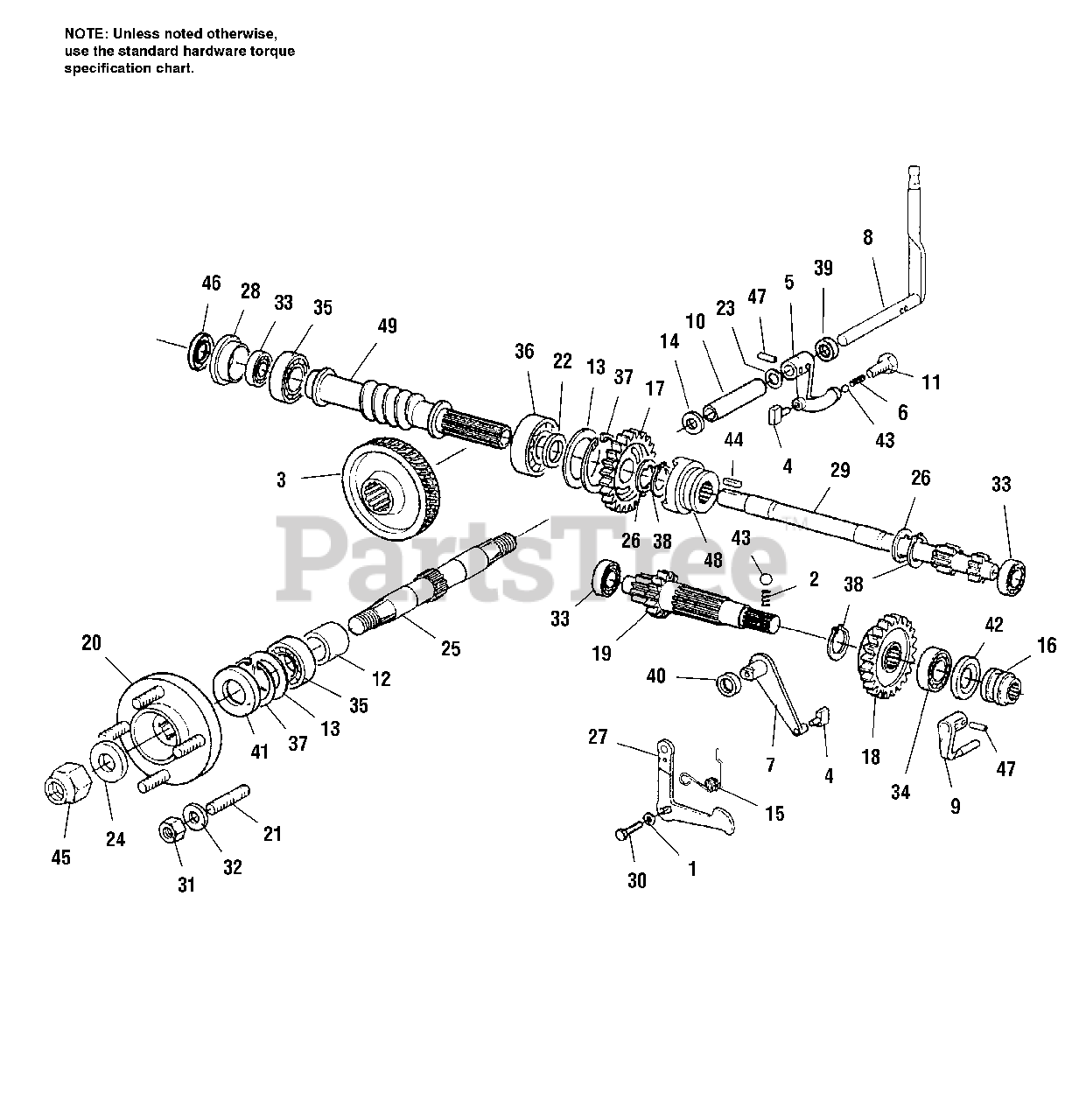

Wheel Transmission Assembly Parts Diagram

  • Title

1

Simplicity 1718910SM

WASHER

$

$

Not available

2

Simplicity 1718911SM

SPRING-Compression, 1/4"

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1718912SM

GEAR-Wheel, Brass

$

$

Not available

4

Simplicity 1718913SM

SHIFT DOG

$

$

Not available

5

Simplicity 1718914SM

ARM-N/1/2, Engage

$

$

Not available

6

Simplicity 1718915SM

SPRING-Compression, 10mm

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 1718916SM

SHIFT ARM-Forward/Reverse Pivot

$

$

Not available

8

Simplicity 1718917SM

ROD-Gear Shift

$59.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718918SM

ARM-PTO Engage

$136.99

$

Usually ships in 2-12 days

0

10

Simplicity 1718919SM

SPACER-Sleeve

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 1718920SM

BOLT, 12mm

$29.99

$

Usually ships in 2-12 days

0

12

Simplicity 1718921SM

SPACER

$

$

Not available

13

Simplicity 1718922SM

SHIM, 52mm x 42mm x 0, 3, 4, 5

$

$

Not available

14

Simplicity 1718923SM

SHIM, 20mm x 12mm x 1.50mm

$

$

Not available

15

Simplicity 1718924SM

SPRING, Directional Control

$15.99

$

Usually ships in 2-12 days

0

16

Simplicity 1718925SM

SPLINE HUB-PTO

$130.99

$

Usually ships in 2-12 days

0

17

Simplicity 1718926SM

GEAR, 38mm

$182.99

$

Usually ships in 2-12 days

0

18

Simplicity 1718927SM

GEAR-Reverse

$

$

Not available

19

Simplicity 1718928SM

SHAFT-Reverse Pinion & PTO

$

$

Not available

20

Simplicity 1718929SM

HUB-Wheel

$

$

Not available

21

Simplicity 1718930SM

STUD-Wheel

$

$

Not available

22

Simplicity 1718931SM

SEAL

$

$

Not available

23

Simplicity 1718932SM

WASHER, 20mm x 12mm x .03 - .05mm

$7.49

$

Usually ships in 2-12 days

0

24

Simplicity 1718933SM

WASHER

$

$

Not available

25

Simplicity 1718934SM

SHAFT-Wheel Axle

$199.99

$

Usually ships in 2-12 days

0

26

Simplicity 1718935SM

WASHER-Keyed

$

$

Not available

27

Simplicity 1719065SM

ARM-Forward/Reverse Shift

$

$

Not available

28

Simplicity 1719066SM

END CAP

$

$

Not available

29

Simplicity 1719067SM

SHAFT-PTO Engage

$

$

Not available

30

Simplicity 1718894SM

BOLT-Hex Hd, 6mm x 14mm

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 1718873SM

NUT, 12mm x 1.25mm

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1718896SM

WASHER,12mm

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1719068SM

BEARING-PTO Shaft, 15mm x 35mm x 11mm

$58.99

$

Usually ships in 2-12 days

0

34

Simplicity 1719069SM

BEARING-PTO Shaft, 20mm x 47mm x 14mm

$

$

Not available

35

Simplicity 1719070SM

BEARING-Wheel & Worm Shaft

$82.99

$

Usually ships in 2-12 days

0

36

Simplicity 1719071SM

BEARING-Worm Wheel Drive Shaft

$

$

Not available

37

Simplicity 1719072SM

SNAP RING, 52 I

$

$

Not available

38

Simplicity 1719073SM

SNAP RING, 24 E

$

$

Not available

39

Simplicity 1719074SM

SEAL-N/1/2 Arm, 12mm x 19mm x 5mm

$23.99

$

Usually ships in 2-12 days

0

40

Simplicity 1719075SM

SEAL-F/R, 16mm x 24mm x 4mm

$19.99

$

Usually ships in 2-12 days

0

41

Simplicity 1719076SM

SEAL-Tine Axle, (Wheel Shaft), 25mm x 52mm x 8mm

$

$

Not available

42

Simplicity 1719077SM

SEAL-PTO, 20mm x 35mm x 7mm

$35.99

$

Usually ships in 2-12 days

0

43

Simplicity 1719078SM

BALL-Steel, 1/4"

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 1719079SM

KEY

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 1719080SM

NUT, 20mm x 1.50mm

$12.99

$

Usually ships in 2-12 days

0

46

Simplicity 1719081SM

SEAL

$18.99

$

Usually ships in 2-12 days

0

47

Simplicity 1719082SM

PIN-Roll, 5mm x 20mm

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 1719083SM

PINION-Input

$284.99

$

Usually ships in 2-12 days

0

49

Simplicity 1719084SM

SHAFT-Worm Wheel Drive

$

$

Not available
