821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Tine Transmission Assembly Parts Diagram

Rear-Tine Tiller, 8hp

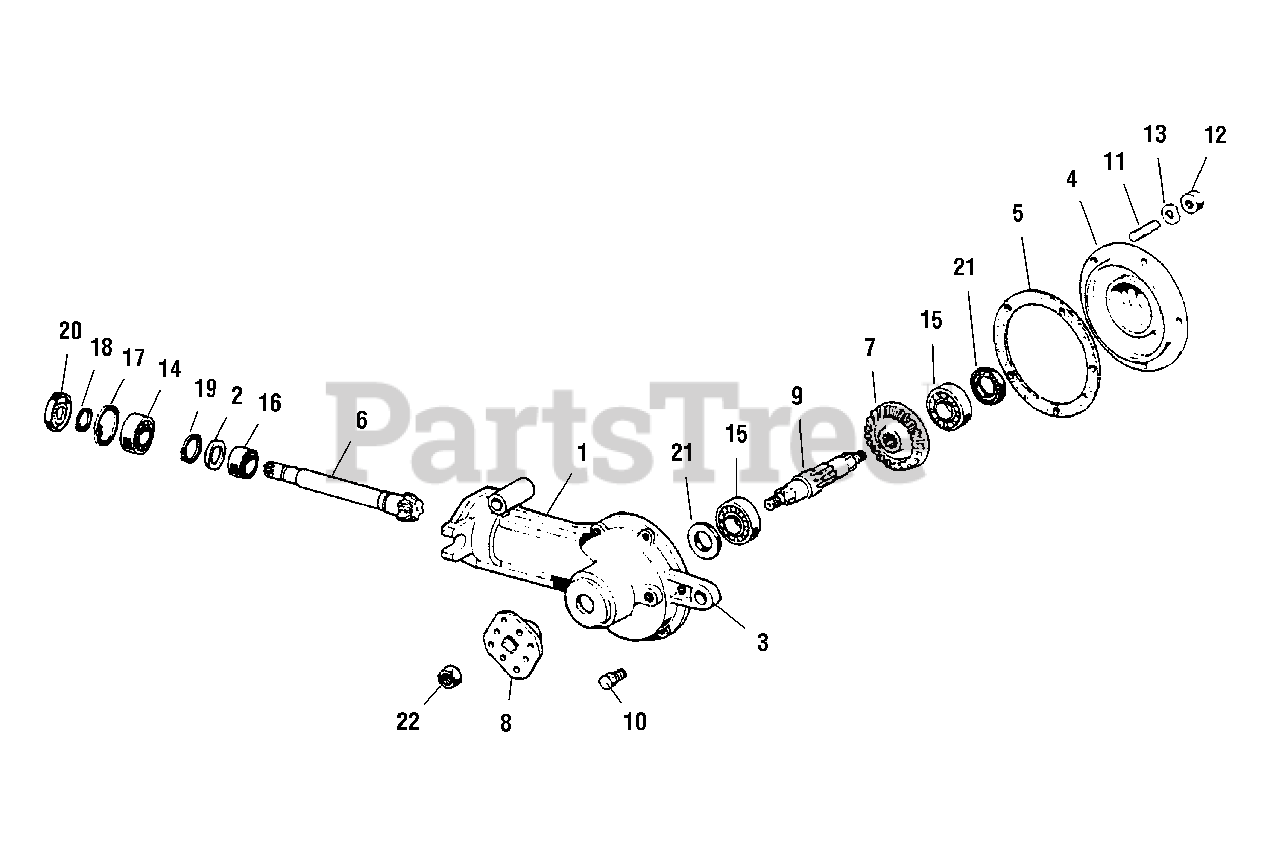

Tine Transmission Assembly Parts Diagram

  • Title

1

Simplicity 1719050SM

TILLER DRIVE TRANSMISSION

Note: Complete

$

$

Not available

2

Simplicity 1719090SM

SPACER

$

$

Not available

3

Simplicity 1719091SM

CASTING

$

$

Not available

4

Simplicity 1719092SM

COVER-Casting

$

$

Not available

5

Simplicity 1719093SM

GASKET

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1719094SM

PINION

$233.99

$

Usually ships in 2-12 days

0

7

Simplicity 1719095SM

GEAR

$

$

Not available

8

Simplicity 1719049SM

HUB-Tine

$

$

Not available

9

Simplicity 1719096SM

TINE AXLE

$

$

Not available

10

Simplicity 1719097SM

PLUG-Pipe, 1/4", Oil Level Drain

$

$

Not available

11

Simplicity 1718878SM

STUD, 8mm x 20mm

$

$

Not available

12

Simplicity 1719025

NUT, 8mm x 1.25mm

$

$

Not available

13

Simplicity 1719029SM

WASHER-Wavy, 8mm

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1719069SM

BEARING-Pinion, 20mm x 47mm x 14mm

$

$

Not available

15

Simplicity 1719098SM

BEARING-Tine Axle, 25mm x 62mm x 17mm

$131.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719099SM

BEARING-Needle, 25mm x 38mm x 20mm

$

$

Not available

17

Simplicity 1719100SM

SNAP RING, 47 I

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1719101SM

SNAP RING, 20 E

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1719102SM

SNAP RING, 25 E

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1719103SM

SEAL-Pinion, 20mm x 47mm x 7mm

$28.99

$

Usually ships in 2-12 days

0

21

Simplicity 1719076SM

SEAL-Tine Axle, (Wheel Shaft), 25mm x 52mm x 8mm

$

$

Not available

22

Simplicity 1719053SM

NUT, 20mm x 1.50mm

$

$

Not available
