821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Hood, Drag Stake & Bolo Tines Parts Diagram

Rear-Tine Tiller, 8hp

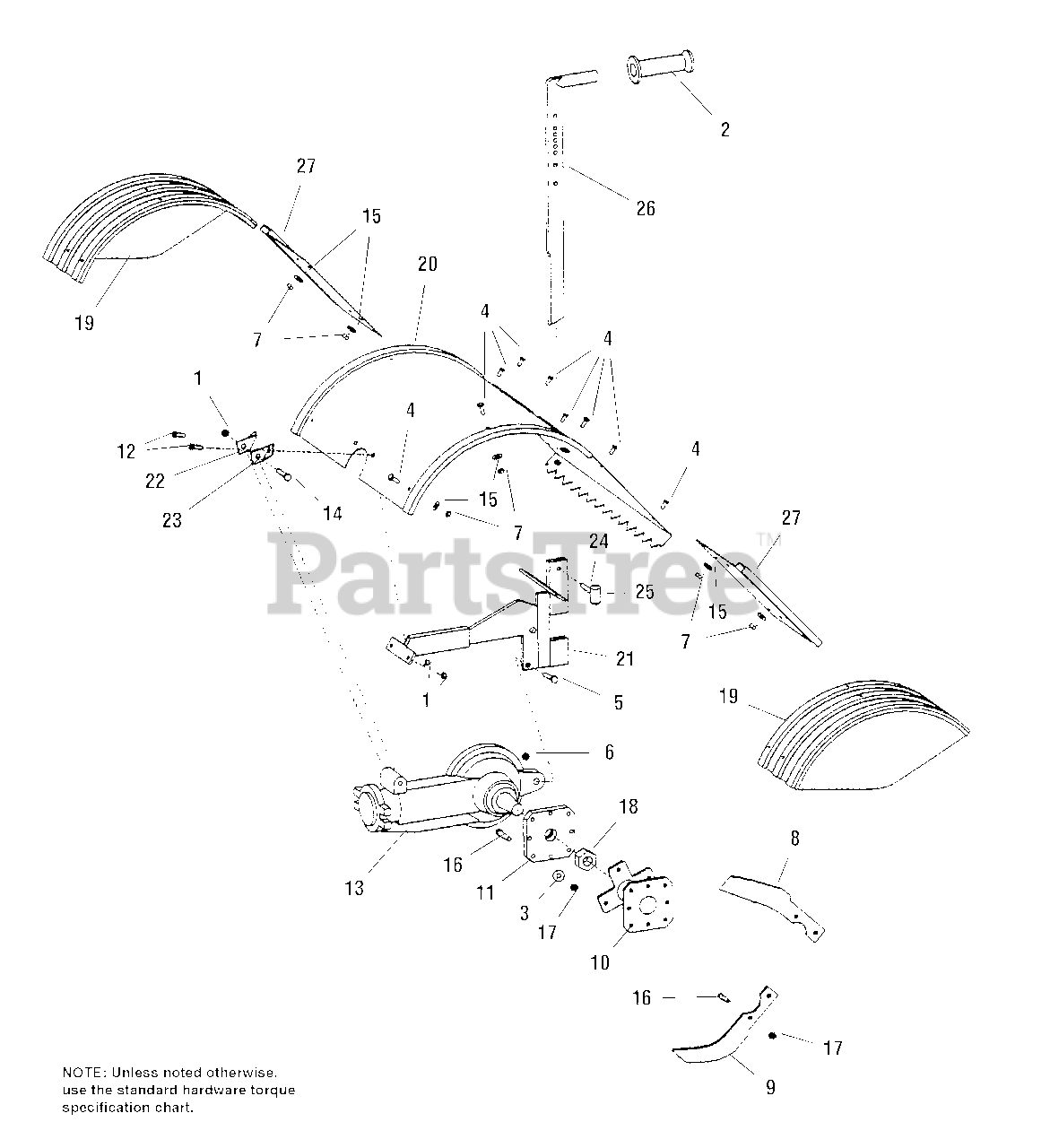

Hood, Drag Stake & Bolo Tines Parts Diagram

  • Title

1

Simplicity 1935048SM

NUT-Bi-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

2

Simplicity 1719038SM

HANDLE GRIP, Black

$13.99

$

In Stock, only 1 left!

0

3

Simplicity 1917356SM

LOCKWASHER-Spring, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1921958SM

BOLT-Hex Hd, 1/4-20 x 1/2"

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921971SM

BOLT-Hex Hd, 3/8-16 x 1-3/4"
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

6

Simplicity 1916950SM

LOCKNUT-Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2828372SM

NUT-Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

8

Simplicity 1719046SM

TINE-Bolo, Right Side

$25.99

$

Usually ships in 2-12 days

0

9

Simplicity 1719047SM

TINE-Bolo, Left Side

$16.99

$

Usually ships in 2-12 days

0

10

Simplicity 1719048SM

HOLDER-Bolo Tine, Both Sides

$

$

Not available

11

Simplicity 1719049SM

HUB-Tine

$

$

Not available

12

Simplicity 1921333SM

BOLT-HHCS, 5/16-18 x 3", Grade 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 1719050SM

TILLER DRIVE TRANSMISSION

Note: Complete

$

$

Not available

14

Simplicity 1960590SM

BOLT-Hex Hd, 5/16-18 x 3"
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1916955SM

WASHER-Flat, 1/4"

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1719021SM

BOLT, 8mm x 30mm

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 1719025

NUT, 8mm x 1.25mm

$

$

Not available

18

Simplicity 1719053SM

NUT, 200mm x 1.50mm

$

$

Not available

19

Simplicity 1719054SM

SIDE SHIELD-Hood, Both Sides

$

$

Not available

20

Simplicity 1719055SM

HOOD-Tiller

$87.99

$

Usually ships in 2-12 days

0

21

Simplicity 1719056SM

BRACKET-Depth Regulator

$63.99

$

Usually ships in 2-12 days

0

22

Simplicity 1719057SM

BRACKET-Hood, Right Side

$

$

Not available

23

Simplicity 1719058SM

BRACKET-Hood, Left Side

$

$

Not available

24

Simplicity 1716742SM

DETENT PIN, 5/16-18 x 1", Drag Stake

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 1716743SM

KNOB-T-Handle, Drag Stake

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716746SM

LEVER-Drag Stake

$

$

Not available

27

Simplicity 1719059SM

EXTENSION-Hood Flap, Both Sides

$19.99

$

Usually ships in 2-12 days

0
