821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Handlebar Assembly Parts Diagram

Rear-Tine Tiller, 8hp

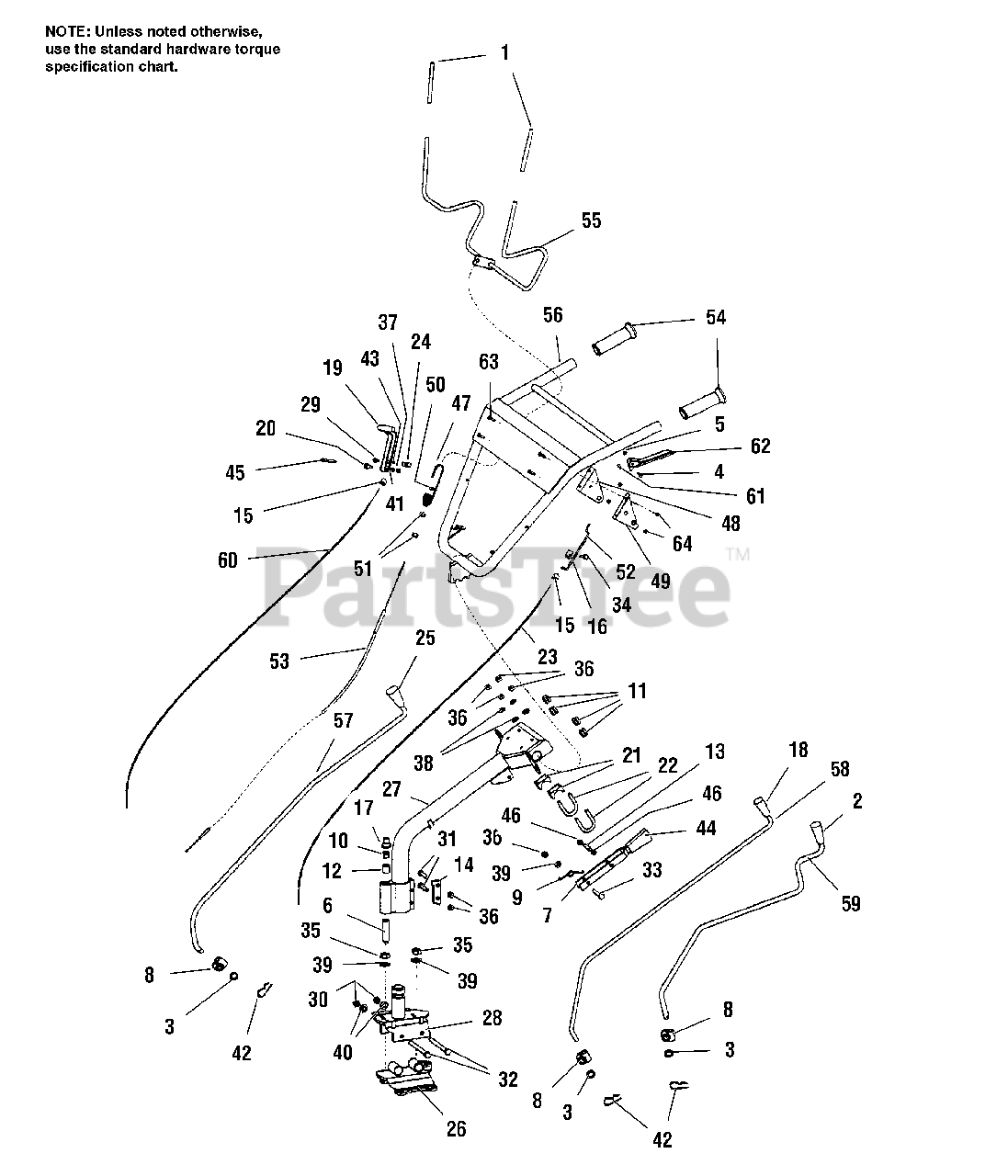

Handlebar Assembly Parts Diagram

  • Title

1

Simplicity 1716699SM

HANDLE GRIP-Drive Control Lever

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1718994SM

KNOB-Black, Direction Shift Rod

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1718995SM

WASHER

$

$

Not available

4

Simplicity 1921961SM

BOLT-Hex Hd, 1/4-20 x 1-1/4"

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 2828372SM

NUT-Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

6

Simplicity 1718997SM

PIN-Swivel Lock

$51.99

$

Usually ships in 2-12 days

0

7

Simplicity 1718998SM

TILT LEVER

$96.99

$

Usually ships in 2-12 days

0

8

Simplicity 1718999SM

PLASTIC PIVOT

$9.49

$

Usually ships in 2-12 days

0

9

Simplicity 1719000SM

SPRING-Tilt Lever

$21.99

$

Usually ships in 2-12 days

0

10

Simplicity 1719001SM

SPRING-Swivel Lock

$

$

Not available

11

Simplicity 1719002SM

RUBBER GROMMET

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1719003SM

CABLE END-Swivel, Threaded

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1719004SM

PIN-Latch, Tilt Lever

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1719005SM

BASE LOCK PLATE

$

$

Not available

15

Simplicity 1719006SM

SHEATH END-Cable

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719007SM

CABLE LOCK HOLDER

$9.49

$

Usually ships in 2-12 days

0

17

Simplicity 1719008SM

SHEATH END-Lower

$

$

Not available

18

Simplicity 1719009SM

KNOB-Green, Tine Engage Rod

$

$

Not available

19

Simplicity 1719010SM

FREE WHEEL LEVER

$

$

Not available

20

Simplicity 1719011SM

BUSHING-Free Wheel Lever

$

$

Not available

21

Simplicity 1716705SM

TILT FRICTION PAD

$

$

Not available

22

Simplicity 1719012SM

U-BOLT

$

$

Not available

23

Simplicity 1719013SM

CABLE ASSEMBLY-Swivel Lever

$34.99

$

Usually ships in 2-12 days

0

24

Simplicity 1719014SM

CABLE CLAMP

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 1719015SM

KNOB-Orange, Gear Shift Rod

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1719016SM

HANDLEBAR BASE-Lower

$96.99

$

Usually ships in 2-12 days

0

27

Simplicity 1719017SM

HANDLEBAR STEM

$131.99

$

Usually ships in 2-12 days

0

28

Simplicity 1719018SM

HANDLEBAR BASE-Upper

$

$

Not available

29

Simplicity 1719019SM

BOLT-Cable Clamp, 6mm x 22mm

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 1719020SM

NUT, 8mm

$

$

Not available

31

Simplicity 1719021SM

BOLT, 8mm x 30mm

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 1719022SM

BOLT, 8mm

$

$

Not available

33

Simplicity 1719023SM

BOLT, 8mm x 45mm

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1719024SM

BOLT, 5mm x 10mm

$

$

Not available

35

Simplicity 1719025

NUT, 8mm x 1.25mm

$

$

Not available

36

Simplicity 1719026SM

LOCKNUT, 8mm

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 1719027SM

LOCKNUT, 6mm

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 1719028SM

WASHER-Flat, 8mm

$

$

Not available

39

Simplicity 1719029SM

WASHER-Wavy, 8mm

$3.49

$

Usually ships in 2-12 days

0

40

Simplicity 1719030SM

WASHER-Spring, 8mm

$

$

Not available

41

Simplicity 1719031SM

WASHER-Flat, 6mm

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 1719032SM

PIN-Hair

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 1719033SM

BALL-Cable Lock, 3/16"

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 1719034SM

KNOB-Plastic

$8.49

$

Usually ships in 2-12 days

0

45

Simplicity 1719035SM

BOLT, 6mm x 55mm

$

$

Not available

46

Simplicity 1719036SM

PUSHNUT

$2.99

$

Usually ships in 2-12 days

0

47

Simplicity 1716720SM

SPRING-Bee Hive, Forward Cable Adjust

$

$

Not available

48

Simplicity 1716722SM

BRACKET-Drive Control Lever, Right

$

$

Not available

49

Simplicity 1716723SM

BRACKET-Drive Control Lever, Left

$12.99

$

Usually ships in 2-12 days

0

50

Simplicity 1933896SM

NUT-Nyloc, #10
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

51

Simplicity 2820438SM

NUT-Jam, 5/16-24

$3.49

$

In Stock, only 2 left!

0

52

Simplicity 1716729SM

REVERSE LINK

$42.99

$

Usually ships in 2-12 days

0

53

Simplicity 1719037SM

CABLE ASSEMBLY-Drive Control Lever

$67.99

$

In Stock, only 1 left!

0

54

Simplicity 1719038SM

HANDLE GRIP, Black, 1" No Flange

$13.99

$

In Stock, only 1 left!

0

55

Simplicity 1719039SM

DRIVE CONTROL LEVER

$39.99

$

Usually ships in 2-12 days

0

56

Simplicity 1719040SM

HANDLEBAR-Upper

$

$

Not available

57

Simplicity 1719041SM

GEAR SHIFT ROD

$31.99

$

Usually ships in 2-12 days

0

58

Simplicity 1719042SM

TINE ENGAGE ROD

$

$

Not available

59

Simplicity 1719043SM

DIRECTION SHIFT ROD

$21.99

$

Usually ships in 2-12 days

0

60

Simplicity 1719044SM

CABLE ASSEMBLY-Free Wheel Lever

$

$

Not available

61

Simplicity 1719045SM

BUSHING-Swivel Lever

$

$

Not available

62

Simplicity 1722667SM

SWIVEL LEVER

$37.99

$

In Stock, only 1 left!

0

63

Simplicity 1716731SM

BOLT-Hex Hd, 5mm x 0.8mm x 10mm

$1.99

$

Usually ships in 2-12 days

0

64

Simplicity 1716732SM

NUT-Nyloc, 5mm x 0.8m

$2.49

$

Usually ships in 2-12 days

0
