821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Engine Mounting, Belts & Wheels Parts Diagram

Rear-Tine Tiller, 8hp

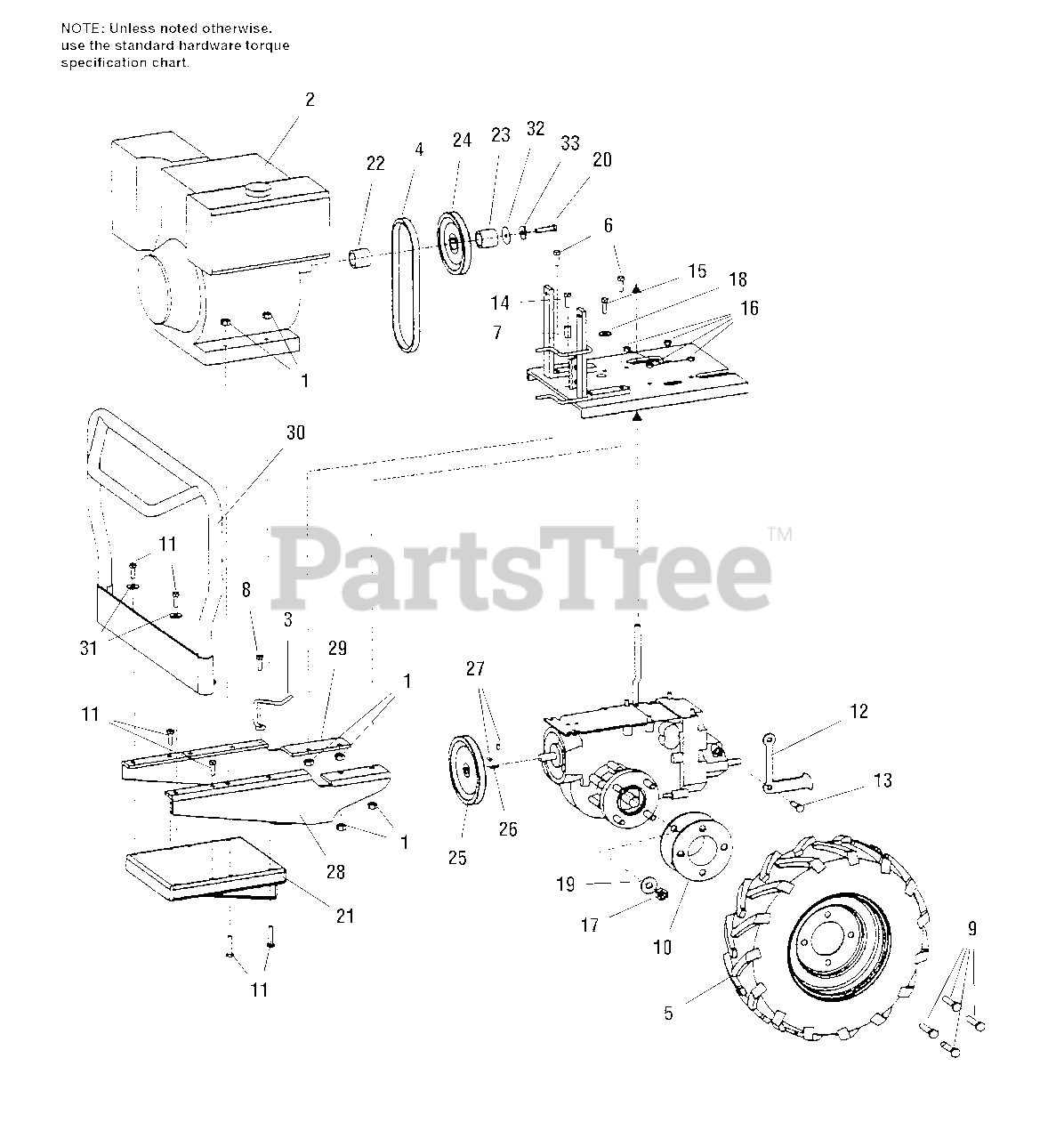

Engine Mounting, Belts & Wheels Parts Diagram

  • Title

1

Simplicity 1935048SM

NUT-Bi-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 18

0

2

ENGINE-Briggs & Stratton, 8HP

$

$

Not available

3

Simplicity 1716767SM

GUIDE-Belt, Forward

$

$

Not available

4

Simplicity 1718544SM

BELT-Forward

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 1718887SM

WHEEL/TIRE ASSEMBLY, Left Side

$

$

Not available

5

Simplicity 1718888SM

WHEEL/TIRE ASSEMBLY, Right Side

$

$

Not available

6

Simplicity 1921977SM

BOLT-Hex Hd, 5/16-18 x 1-1/4"
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

7

Simplicity 1718890SM

BUSHING

$

$

Not available

8

Simplicity 1921332SM

BOLT-Hex Flange Hd, 5/16-18 x 3/4", Grade 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Simplicity 1718891SM

BOLT-Lug,1/2-20 x 3/4"

$9.49

$

Usually ships in 2-12 days

0

10

Simplicity 1718892SM

ADAPTER-Wheel

$39.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921333SM

BOLT-HHCS, 5/16-18 x 3", Grade 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 1719065SM

ARM-Forward/Reverse Shift

$

$

Not available

13

Simplicity 1718894SM

BOLT-Hex Hd, 6mm x 14mm

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1716715SM

BOLT-Hex Hd, 8mm x 16mm

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1718895SM

BOLT-Hex Hd, 8mm x 22mm

$

$

Not available

16

Simplicity 1719025

NUT, 8mm x 1.25mm

$

$

Not available

17

Simplicity 1718873SM

NUT, 12mm x 1.25mm

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1719029SM

WASHER-Wavy, 8mm

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1718896SM

WASHER, 12mm

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1960384

BOLT-Hex Hd, 7/16-20NF x 1", Grade 5

$

$

Not available

21

Simplicity 1718898SM

WEIGHT CASTING

$170.99

$

Usually ships in 2-12 days

0

22

Simplicity 1718899SM

SPACER-Engine Pulley, Short, Engine Side

$

$

Not available

23

Simplicity 1718900SM

SPACER-Engine Pulley, Long

$

$

Not available

24

Simplicity 1718901SM

PULLEY-Drive, Engine Forward

$38.99

$

Usually ships in 2-12 days

0

25

Simplicity 1718902SM

PULLEY-Drive, Transmission

$43.99

$

Usually ships in 2-12 days

0

26

Simplicity 1719079SM

KEY-Half Moon

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 1718904SM

SETSCREW

$

$

Not available

28

Simplicity 1718905SM

BRACKET-Motor Mount, Left

$

$

Not available

29

Simplicity 1718906SM

BRACKET-Motor Mount, Right

$

$

Not available

30

Simplicity 1721528SM

BUMPER GUARD

$265.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960044SM

WASHER-Flat, 5/16"

$4.49

$

In Stock, only 3 left!

0

32

Simplicity 1919384SM

WASHER-Flat, 7/16"

$5.49

$

In Stock, only 1 left!

0

33

Simplicity 1918199SM

WASHER-Spring Loc, 7/16"
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0
