82010 - Toro Arm Rest Kit for D-Series Tractor (1974) ARM REST FACTORY ORDER NUMBER (MODEL 8-2010) Parts Diagram

Arm Rest Kit for D-Series Tractor

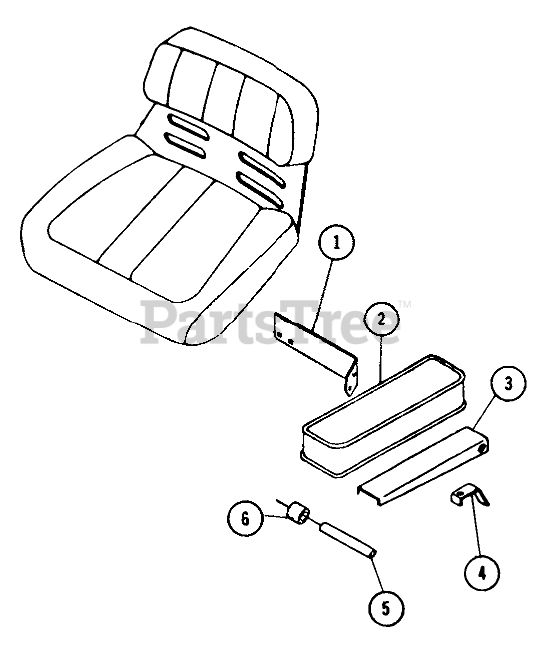

ARM REST FACTORY ORDER NUMBER (MODEL 8-2010) Parts Diagram

  • Title

1

Toro 104103

Bracket-R.H.

$

$

Not available

1

Toro 104104

Bracket-L.H.

$

$

Not available

1

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

1

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

2

Toro 104101

Arm Rest Pad

$

$

Not available

3

Toro 104105

Arm

$

$

Not available

4

Toro 104102

Arm Stop

$

$

Not available

4

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

4

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5

Toro 979242

PIN-SPLIT ROLLED

$

$

Not available

6

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

6

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

6

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
