820 (590-820-100) - Cub Cadet 40" Tiller Attachment Gear Box Parts Diagram

40" Tiller Attachment

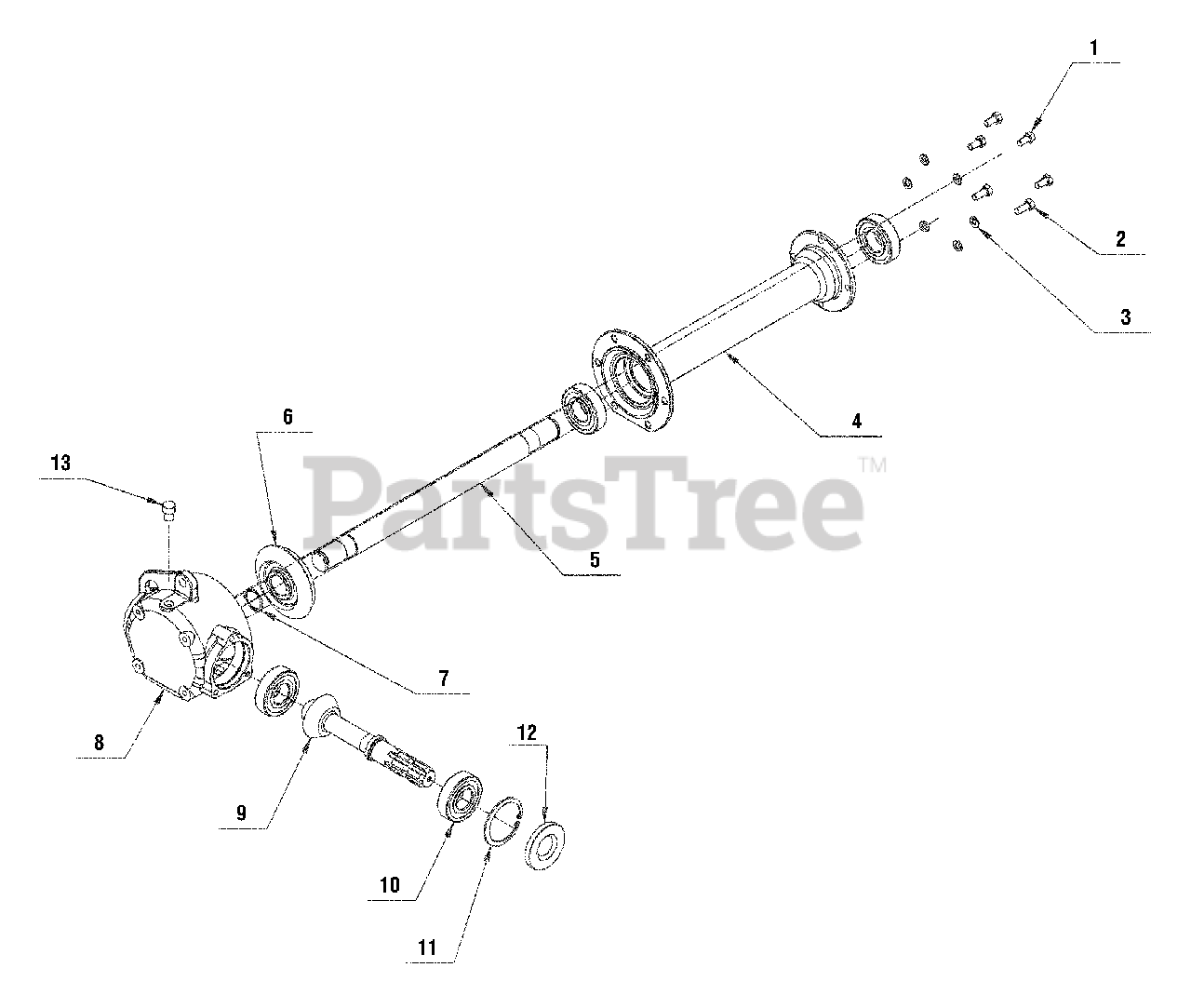

Gear Box Parts Diagram

  • Title

1

Bolt, M10x20 8.8

Note: Obtain hardware locally

$

$

Not available

2

Bolt, M10x25 8.8

Note: Obtain hardware locally

$

$

Not available

3

Washer M11

Note: Obtain hardware locally

$

$

Not available

4

Tube, Output Shaft

Note: Not servicable

$

$

Not available

5

Shaft, Output

Note: Not servicable

$

$

Not available

6

Gear, Miter

Note: Not servicable

$

$

Not available

7

Snap Ring

Note: Obtain hardware locally

$

$

Not available

8

Housing, Gearbox

Note: Not servicable

$

$

Not available

9

Shaft, Input

Note: Not servicable

$

$

Not available

10

Bearing, Gearbox

Note: Not servicable

$

$

Not available

11

Cub Cadet MR-MR03110011

Snap Ring

$

$

Not available

12

Cub Cadet MR-MR02140031

Spacer, 35 x 80 x 10

$

$

Not available

13

Cub Cadet MR-MR03140017

Plug

$

$

Not available
