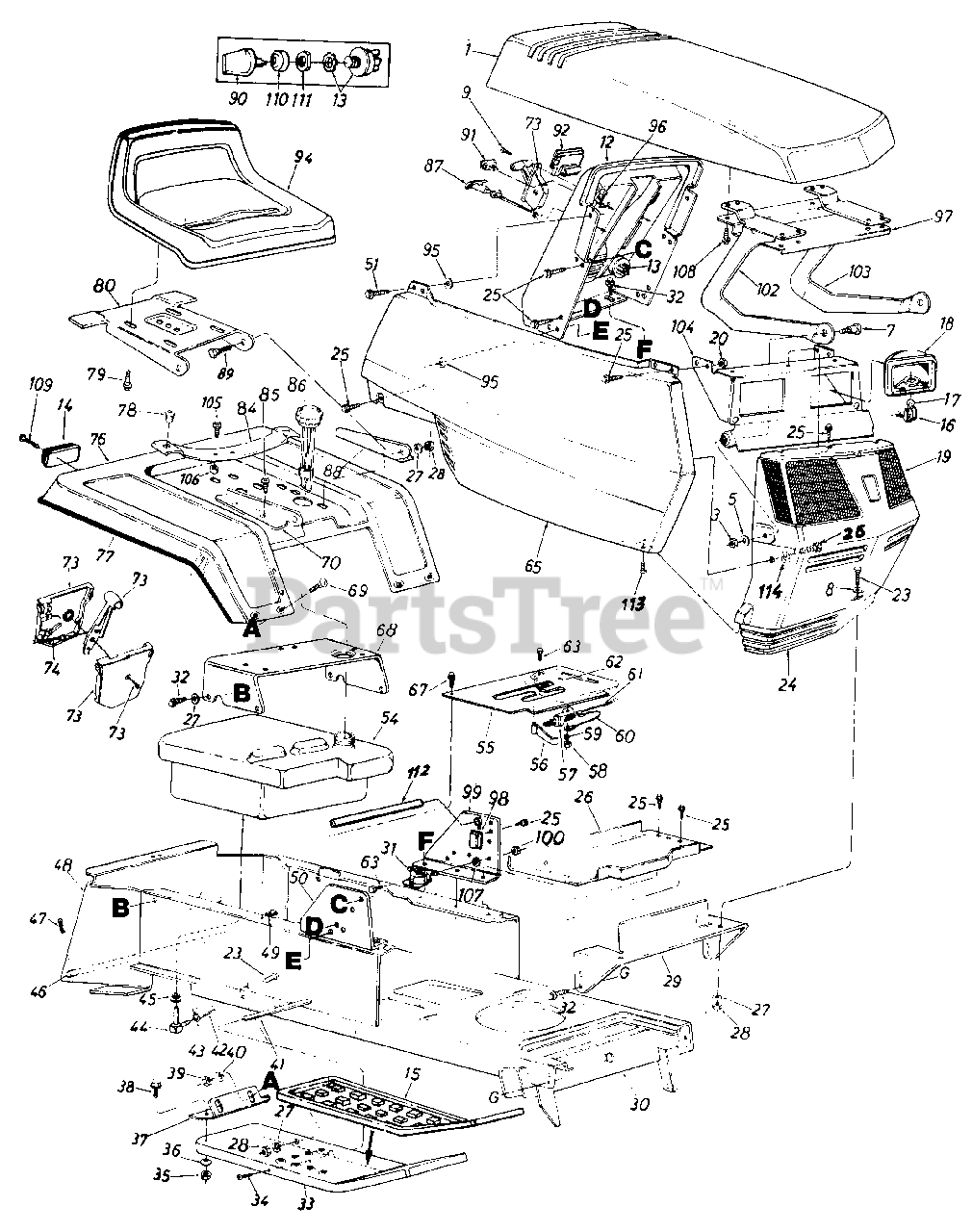

82-5133 (148-814-019) - MTD Garden Tractor (1988) (Agway) Parts18 Parts Diagram

Garden Tractor

Parts18 Parts Diagram

  • Title

1

MTD 16823

Hood Ass'y.

Variations

MTD 16823-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16823-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 16823-0638

No Longer Available HOOD MTD R - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

5

MTD 736-0278

Fl-Wash. 5/16" I.D. x 5/8" O.D.

$5.99

$

Usually ships in 3-6 days

0

7

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

8

MTD 736-0159

Fl-Wash..344" I.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

MTD 722-0155

Foam Strip

$

$

Not available

12

MTD 731-0957

Dash Ass'y.

$

$

Not available

13

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

14

MTD 725-1128

Taillight

$

$

Not available

15

MTD 731-0755

Foot Pad

$

$

Not available

16

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

18

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-0948

Lens-R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

MTD 731-0949

Lens-L.H.
(Superseded to 931-0949)

$

$

Not available

20

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

23

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-0935

Grille

$

$

Currently unavailable

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 13379

Batery Plate

$

$

Not available

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 15825

Grille Mounting Bracket

$

$

Not available

30

MTD 13820

Lower Frame Ass'y.

$

$

Not available

31

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

32

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 13828

Running Board-R.H.

$

$

Not available

MTD 13827

Running Board-L.H.

Note: (Not Shown)

$

$

Not available

34

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell-Wash. .34" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

37

MTD 15846

Fender Brkt.R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt.L.H.

Note: (Not Shown)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 738-0435

Running Board Rod

$

$

Not available

42

MTD 751-0173

Fuel Line 40" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

43

MTD 726-0207

Hose Clamp 3/8"

$

$

Not available

44

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

45

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

$2.99

$

In Stock, Qty 20+

0

46

MTD 738-0482

Hitch Rod

$

$

Not available

47

MTD 714-0147

Internal Coterpin

$4.99

$

In Stock, Qty 6

0

48

MTD 13813

Hitch Plate

$

$

Not available

49

MTD 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

50

MTD 17293

Dash Support Brkt. R.H.
(Superseded to 17293B-0637)

$

$

Not available

51

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 751-0367

Fuel Tank

$

$

Not available

55

MTD 16736

Transmission Cover Ass'y.

$

$

Currently unavailable

56

MTD 732-0405

Switch Actuator Lever

$

$

Currently unavailable

57

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

58

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

59

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

60

MTD 725-0765

Electric Wire

$

$

Not available

61

MTD 725-1134

Reverse Lockout Wire Harness
(Superseded to 925-1134A)

$

$

Not available

62

MTD 731-0405

Snap Bushing

$

$

Not available

63

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

65

MTD 16820

Side Panel Ass'y. R.H.

$

$

Not available

MTD 16821

Side Panel Ass'y. L.H.

$

$

Not available

67

MTD 710-0351

Truss Mach. "B" Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

68

MTD 15849

Seat Mounting Channel

$

$

Not available

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 15802

Seat Bracket-R.H.

$

$

Not available

73

MTD 831-0823

Throtle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

74

MTD 746-0634

Throtle Control Wire
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

76

MTD 16448

Rear Fender

$

$

Currently unavailable

77

MTD 731-0511-81

Trim Strip-81" Lg.

$105.99

$

Usually ships in 3-6 days

0

78

MTD 731-0555

Grommet

$

$

Not available

79

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 318 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

80

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

84

MTD 732-0431

Seat Spring

$

$

Currently unavailable

85

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

86

MTD 751-0370

Gas Cap w/Gauge

$

$

Not available

87

MTD 746-3022

Choke Control Comp.
(Superseded to 946-3022B)

$39.99

$

In Stock, only 4 left!

0

88

MTD 15803

Seat Bracket-L.H.

$

$

Not available

89

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

90

MTD 725-1341

Ignition Key
(Superseded to 725-1341B)

$10.99

$

In Stock, only 1 left!

0

91

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

92

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

94

MTD 757-0336

Seat Ass'y.Black Trim

$

$

Not available

MTD 757-0337

Seat Ass'y.Red Trim

$

$

Currently unavailable

95

MTD 726-0270

Pushnut Fastener
(Superseded to 726-0233)

$4.49

$

In Stock, Qty 20+

0

96

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

97

MTD 16808

Hood Reinforcement

$

$

Not available

98

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

99

MTD 17294

Dash Support Brkt.L.H.

$

$

Not available

100

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

102

MTD 17270

Hood Hinge-R.H.

$

$

Currently unavailable

103

MTD 17271

Hood Hinge-L.H.

$

$

Not available

104

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 710-0817

Hex Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

106

MTD 750-0706

Spacer.38" I.D.
(Superseded to 950-0706)

$

$

Not available

107

MTD 736-0222

Ext. L-Wash. .44" I.D.

$5.99

$

In Stock, only 3 left!

0

108

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x.62" Lg.

$4.49

$

In Stock, Qty 20+

0

109

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

110

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

111

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

112

MTD 750-0747

Dash Support

$

$

Currently unavailable

113

MTD 710-0224

Hex AB-Tap Scr. #10 x .5"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

114

MTD 736-0173

Fl- Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0
