82-11BP01 (B-111) - Toro Lawn Tractor (1978) PTO CLUTCH Parts Diagram

Lawn Tractor

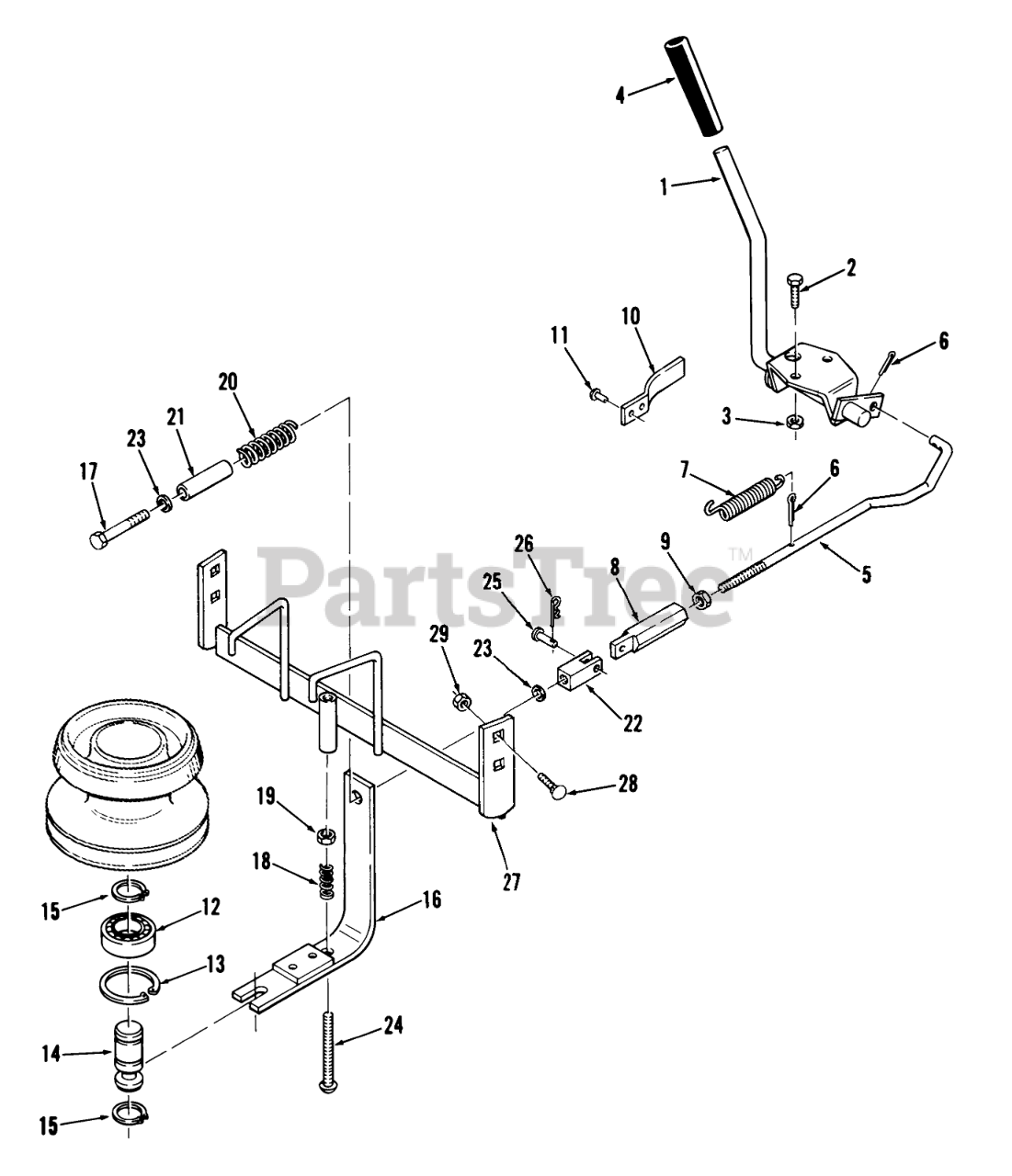

PTO CLUTCH Parts Diagram

  • Title
1

Toro 106627

PTO Clutch Lever

$

$

Not available

2

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

3

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 9038

GRIP

$6.99

$

Usually ships in 3-6 days

0

5

Toro 106630

PTO Clutch Rod

$

$

Not available

6

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

7

Toro 106628

Spring
(Superseded to 101475)

$

$

Not available

8

Toro 106623

Clutch Rod Adjust Block

$

$

Not available

9

Toro 915235

Jam Nut 5/16-18
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

10

Toro 106852

SPRING

$

$

Not available

11

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

12

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 1 left!

0

13

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

14

Toro 106568

SHAFT-CLUTCH HSG

$98.99

$

Usually ships in 3-6 days

0

15

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

16

Toro 106569

Clutch Brake Bracket
(Superseded to 107745)

$

$

Not available

17

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

18

Toro 106611

SPRING-COMPRESSION

$

$

Not available

19

Toro 915235

Jam Nut 5/16-18
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

20

Toro 106573

SPRING-CLUTCH

$

$

Not available

21

Toro 106574

TUBE-CLUTCH SPACER

$

$

Not available

22

Toro 106575

Block-Clutch Adjust

$

$

Not available

23

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

24

Toro 910871

Pan HD Mach Screw 5/16-18 X 2

$

$

Not available

25

Toro 932917

CLEVIS PIN

$

$

Not available

26

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

27

Toro 106578

Clutch Mounting Bracket

$

$

Not available

28

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

29

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
