82-08BP01 (B-81) - Toro Lawn Tractor (1978) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

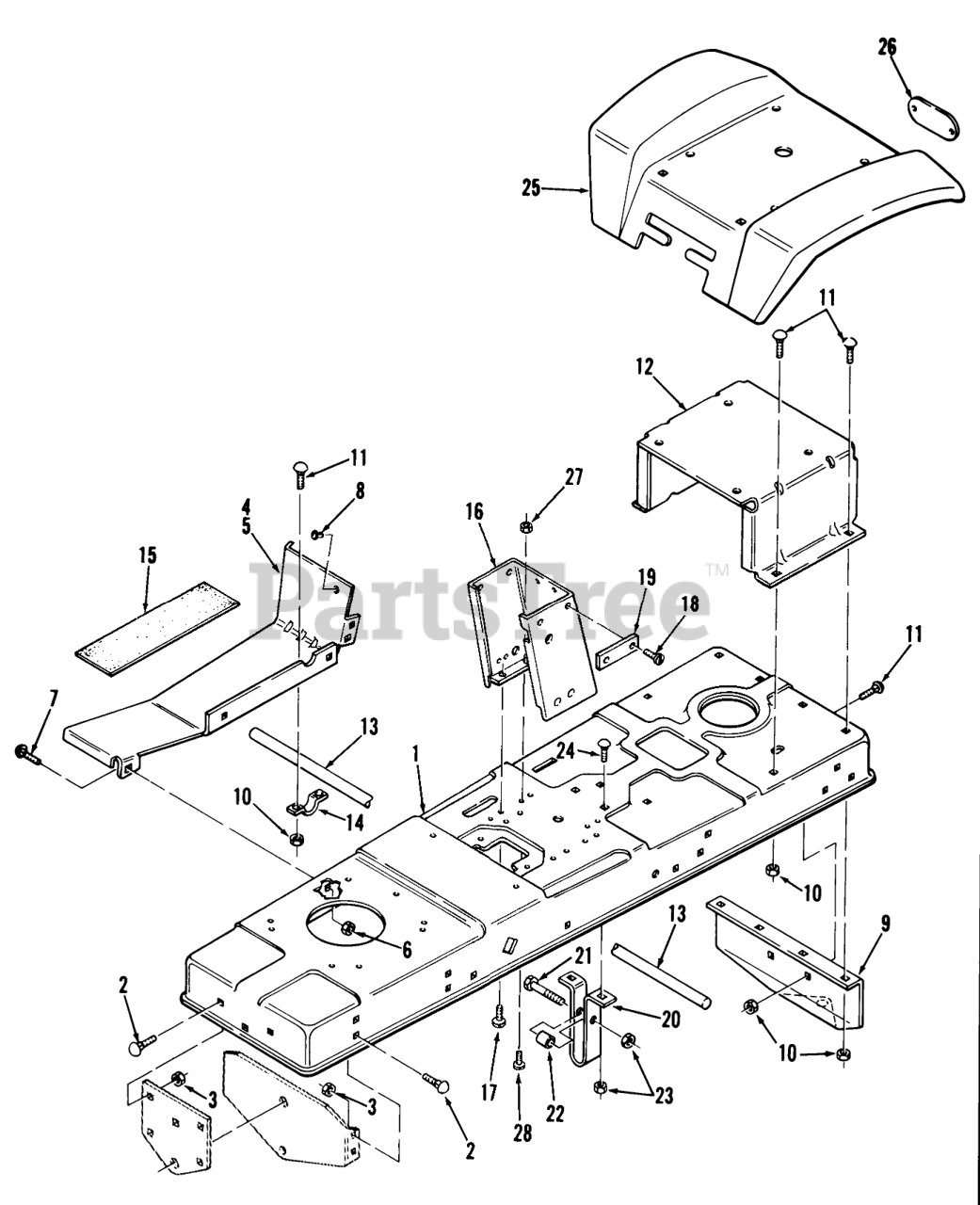

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 106198

Frame
(Superseded to 109156)

$

$

Not available

2

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

3

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 106196

Footrest RH

$

$

Not available

5

Toro 106197

Footrest LH

$

$

Not available

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

8

Toro 103887

BUMPER-RUBBER

$4.49

$

In Stock, only 3 left!

0

9

Toro 106298

HITCH-DRAWBAR

$

$

Not available

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

12

Toro 106273

Support-Seat
(Superseded to 108249)

$82.99

$

Usually ships in 3-6 days

0

13

Toro 106308

SHAFT-REAR

$

$

Not available

14

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

15

Toro 106488

PAD-FOOTREST

$36.99

$

Usually ships in 3-6 days

0

16

Toro 106272

Hoodstand

$

$

Currently unavailable

17

Toro 926694

SCREW

$

$

Not available

18

Toro 913463

S.T. Screw 5/16-18 X 3/4

$

$

Not available

19

Toro 9775

Spacer

$

$

Not available

20

Toro 106204

Guide-Mower
(Superseded to 109608)

$

$

Not available

21

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

22

Toro 106615

SPACER

$

$

Not available

23

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

24

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

25

Toro 105438

Assy-Fender & Plate
(Superseded to 108474)

$

$

Not available

26

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

27

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0
