82-08BP01 (B-81) - Toro Lawn Tractor (1978) ENGINE AND TRANSMISSION Parts Diagram

Lawn Tractor

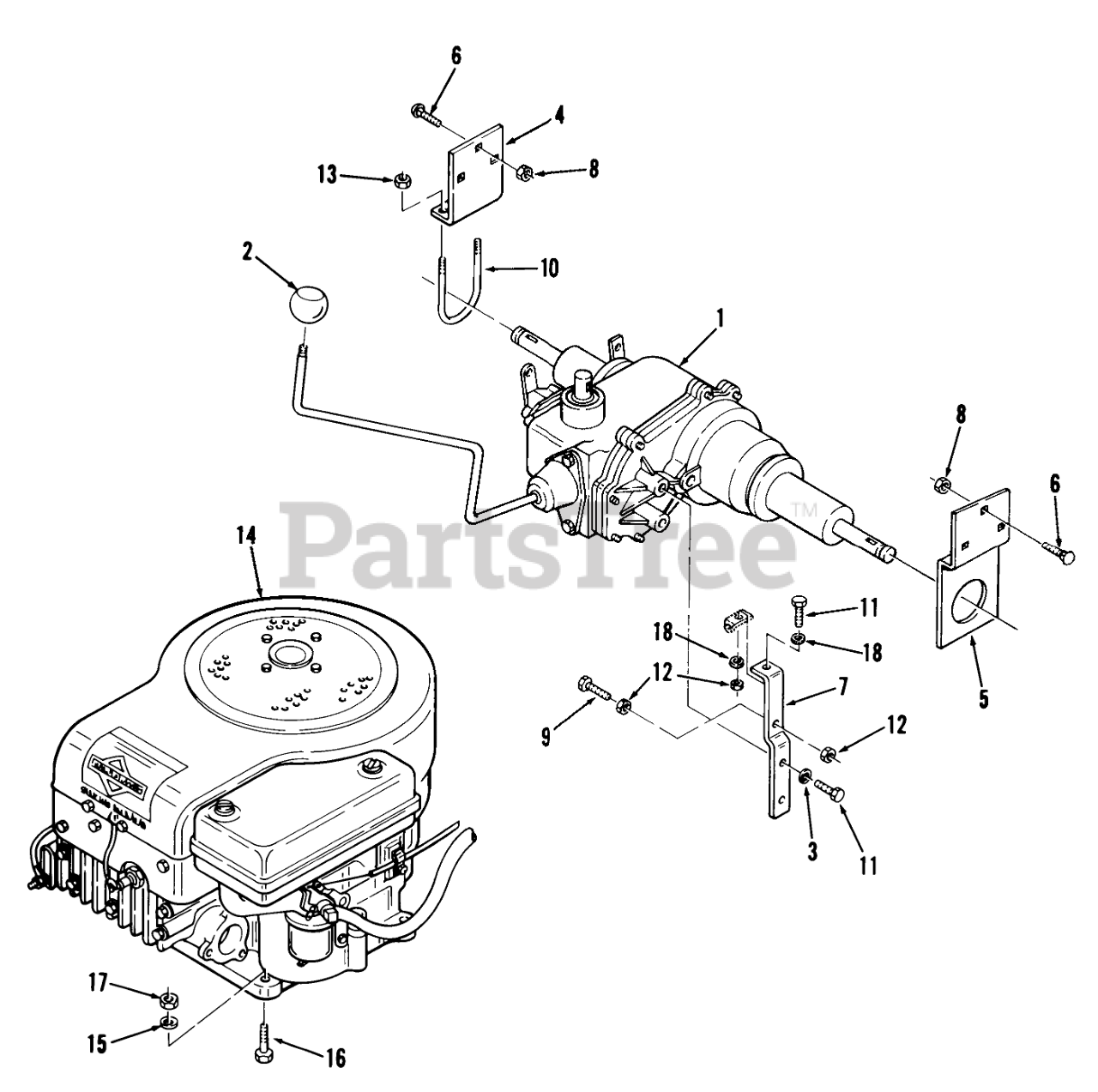

ENGINE AND TRANSMISSION Parts Diagram

  • Title

1

Toro 106514

Transmission-Peerless Mod. 669

$

$

Currently unavailable

2

Toro 102871

SHIFT KNOB

$

$

Not available

3

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

4

Toro 106290

BRACKET-AXLE RH

$

$

Not available

5

Toro 106283

BRACKET-AXLE LH

$

$

Not available

6

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

7

Toro 106292

Bracket Trans. Mounting

$

$

Not available

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

10

Toro 103428

"U" Bolt Axle Mount

$

$

Not available

11

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

14

Toro 106646

Engine-8HP-B&S Model 191707, Type 1136-01

$

$

Currently unavailable

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

14

Toro 106552

Engine-11HP-B&S Model 252707, Type 0151-01

$

$

Currently unavailable
