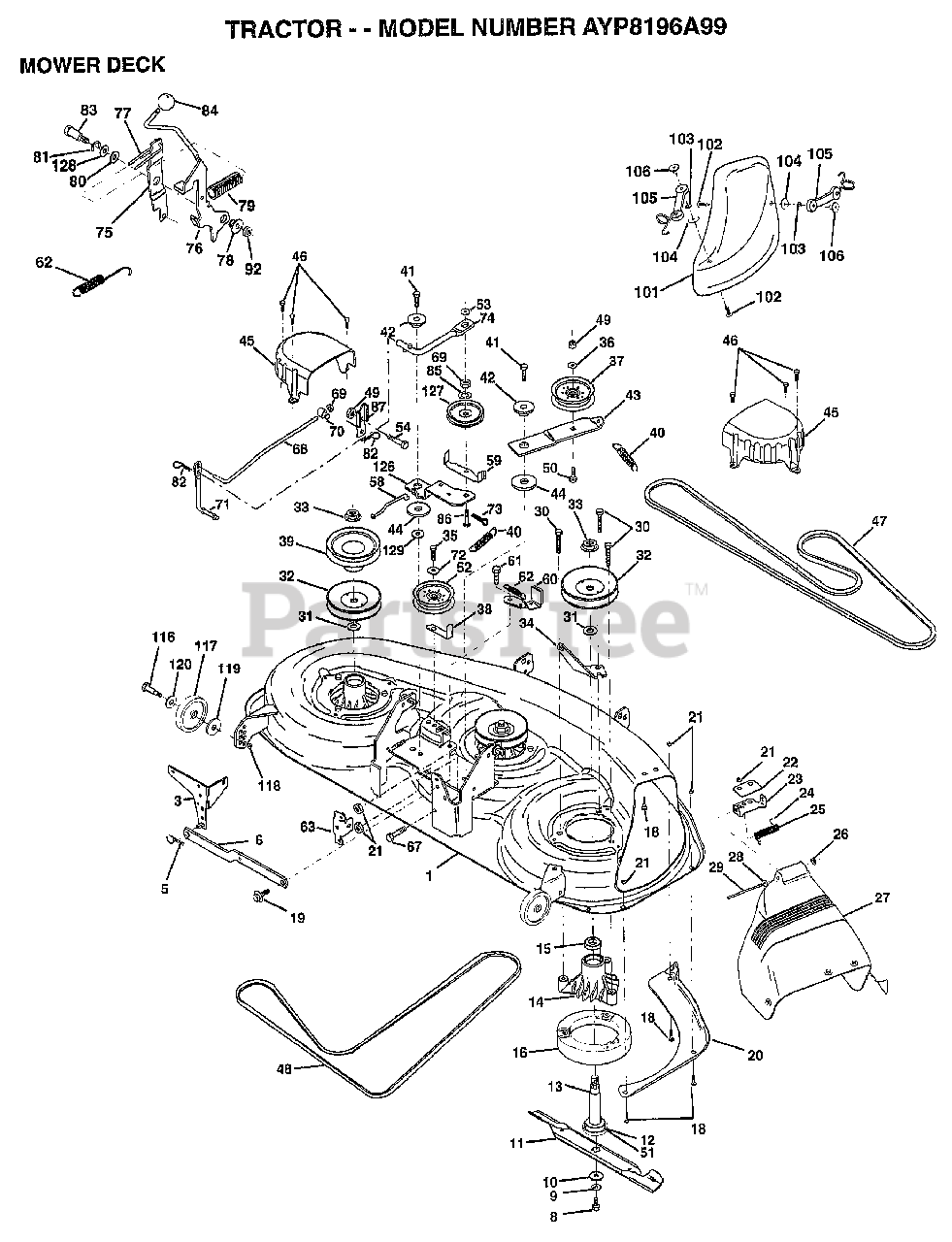

8196 A99 - Electrolux/AYP Lawn Tractor (1999) MOWER DECK Parts Diagram

Lawn Tractor

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 164210

"DECK.ASM.MOWER46"""
(Superseded to 532176026)

$

$

Not available

3

Electrolux/AYP 138457

BRKT.ASM.SW.44/50
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 163819

"BLADE MULCH 46"""
(Superseded to 532152443)

$20.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

SHAFT.ASM.W/BRNG
(Superseded to 532137553)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

HOUSING.MAND.44.V
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 145055

BAFFFLE.VORTEX.46
(Superseded to 532145055)

$9.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 149287

SUB= 123713X
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 157788

SHIELD DEFLECTOR
(Superseded to 532166883)

$

$

Not available

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 157722

"SCREW-THD ROLL,WA"
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 153531

PULLEY.MAND.36/46
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 144945

ANCHOR.SPRING.46
(Superseded to 532144945)

$

$

Not available

35

Electrolux/AYP 17490628

SCREW LT
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

38

Electrolux/AYP 156086

"KEEPER BELT,IDLER"
(Superseded to 532156086)

$8.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 144917

PULLEY.DRV.DCK.46
(Superseded to 532144917)

$31.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 137273

"SPRING.SEC.44""VEN"
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

41

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

42

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 144949

ARM.IDLER.DECK.46
(Superseded to 532144949)

$

$

Not available

44

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 145059

COVER.MANDREL.46
(Superseded to 532145059)

$

$

Not available

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 144959

BELT-V.SEC.46.KEL
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 158818

V BELT MOWER
(Superseded to 584449201)

$72.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

52

Electrolux/AYP 156493

"PULLEY IDLER,FLAT"
(Superseded to 532173901)

$

$

Not available

53

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

58

Electrolux/AYP 156488

"LINK BRAKE, 43"""
(Superseded to 582986001)

$

$

Not available

59

Electrolux/AYP 157034

"GUIDE BELT,46""MOW"
(Superseded to 582988501)

$6.49

$

In Stock, only 3 left!

0

60

Electrolux/AYP 156722

ARM ASM BRAKE
(Superseded to 582987801)

$

$

Not available

61

Electrolux/AYP 161315

BOLT.SHOULDER.5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 156473

"BRKT ROD,CLUTCH"

$

$

Not available

67

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 156487

SUB= 157060

$

$

Not available

69

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

70

Electrolux/AYP 142028

TRUNION ADJ
(Superseded to 532142028)

$

$

Not available

71

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

73

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 156474

LINK CLUTCH
(Superseded to 582985801)

$21.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 159145

ARM EXTENSION
(Superseded to 532127847)

$

$

Not available

76

Electrolux/AYP 160570

LEVER.ASM.CLUTCH

$

$

Not available

77

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

78

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

79

Electrolux/AYP 153701

SPRING.CLUTCH.MWR
(Superseded to 532153701)

$

$

Not available

80

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

83

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

84

Electrolux/AYP 162132

KNOB.RD.7/16-14
(Superseded to 532162132)

$7.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 158565

"BOLT CARR, SH"
(Superseded to 582992701)

$2.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 158373

BRACKET.EXTENSION
(Superseded to 582992201)

$3.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 145579

COVER.MULCHING.
(Superseded to 532145579)

$

$

Not available

102

Electrolux/AYP 71161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

104

Electrolux/AYP 19061216

WASHER #10
(Superseded to 819061216)

$4.99

$

Usually ships in 3-10 days

0

105

Electrolux/AYP 160793

LATCH ASSY.BAGGER
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

118

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

126

$6.99

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

129

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

Electrolux/AYP 143651

MANDREL SERV ASM
(Superseded to 532143651)

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 164846

DECK COMPLETE
(Superseded to 583014001)

$802.99

$

Usually ships in 3-10 days

0
